    Distribution clutch reduced 6 - 10

    Code: PKG-610
    Tip
    Not rated
    206 Kč –10 %
    Distribution clutch reduced 6 - 10
    206 Kč –10 % 185 Kč / pcs 153 Kč excl. VAT
    Stock (380 pcs)
    Delivery to:
    03.03.2025
    Delivery offer

    Socket coupling 10 mm inlet 3 x 6 mm reduced tap and 10 mm outlet. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology. Reduced size and weight for quick and easy installation of plastic tubing.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

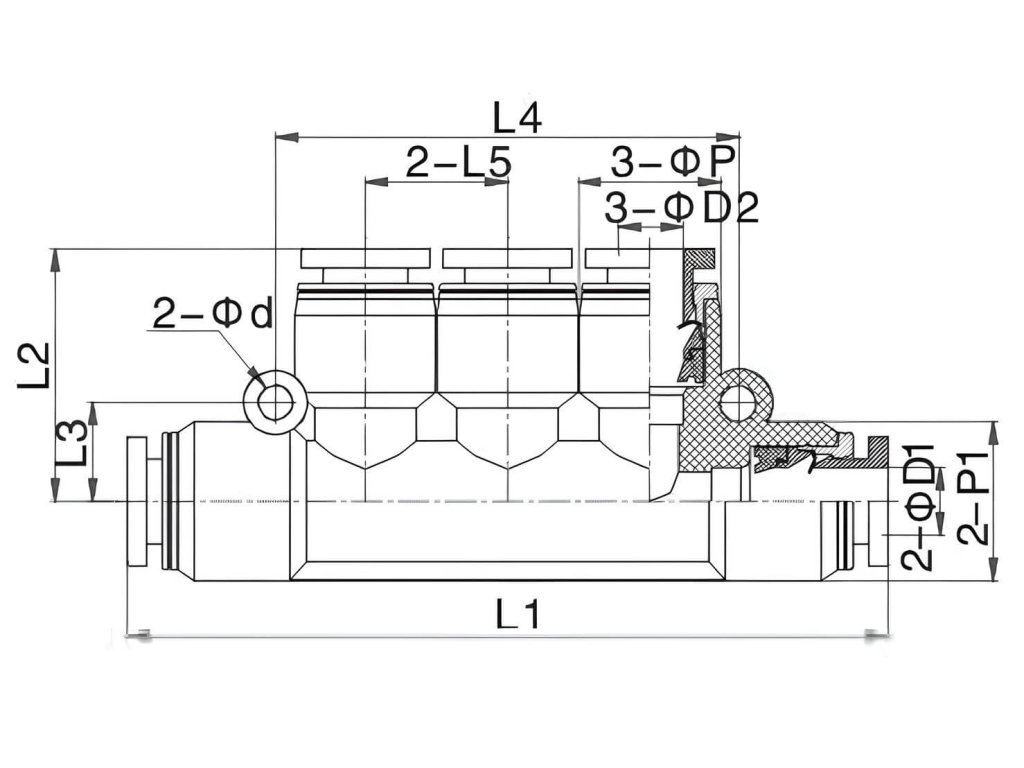

    Plastic socket coupling 10 - 6 mm

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Reduced distribution plug connectors
    Pressure: 10 bars
    A tube: 2 x 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Reducing: 3 x 6 mm
    Width: 32 mm
    Connection system: Plug-in system
