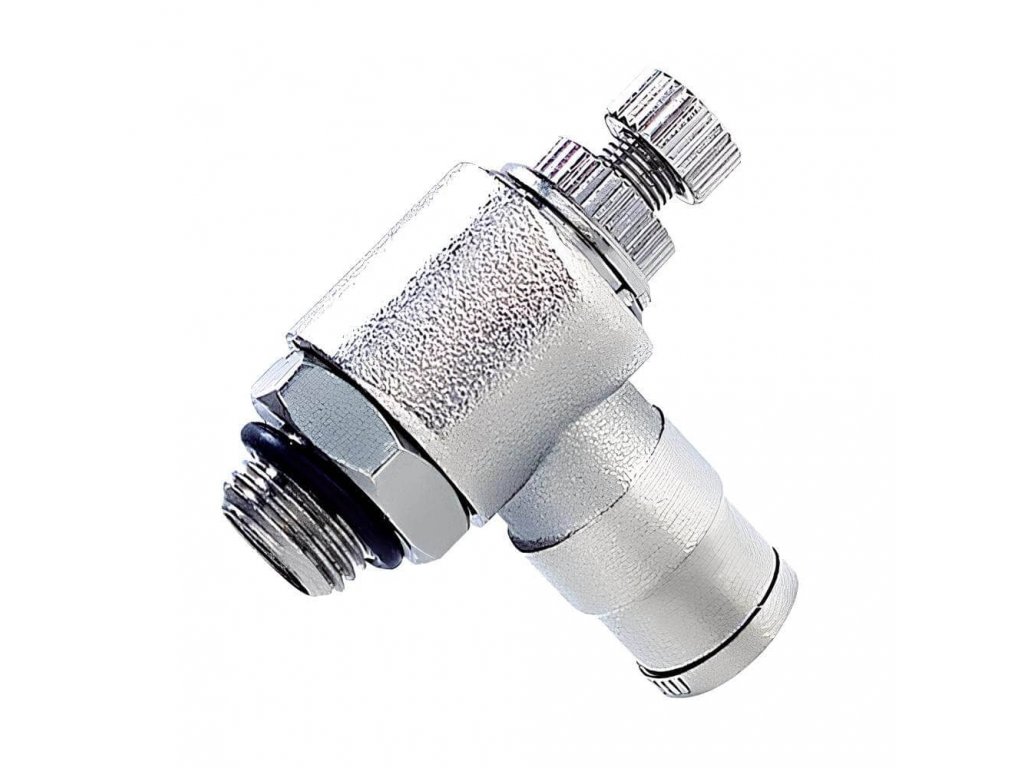

Corner throttle valve for exhaust 6 - M5
Code: MNSE-M56Product detailed description
Angle throttle valve on exhaust 6 - M5 - metal socket design
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
| Category: | Throttling corner socket valves metal socket valves |
|---|---|
| Pressure: | 10 bars |
| A tube: | 6 mm |
| Material: | Brass |
| Medium: | Compressed air |
| Working temperature: | -10 / +80 °C |
| Thread design: | Metric |
| SW (key): | 10 |
| Width: | 30 mm |
| Seals: | NBR |
| Thread: | M5 |
| Connection system: | Plug-in system |
