Corner fitting 1/2" - R3/8"
Code: PLI-3812Related products
Product detailed description

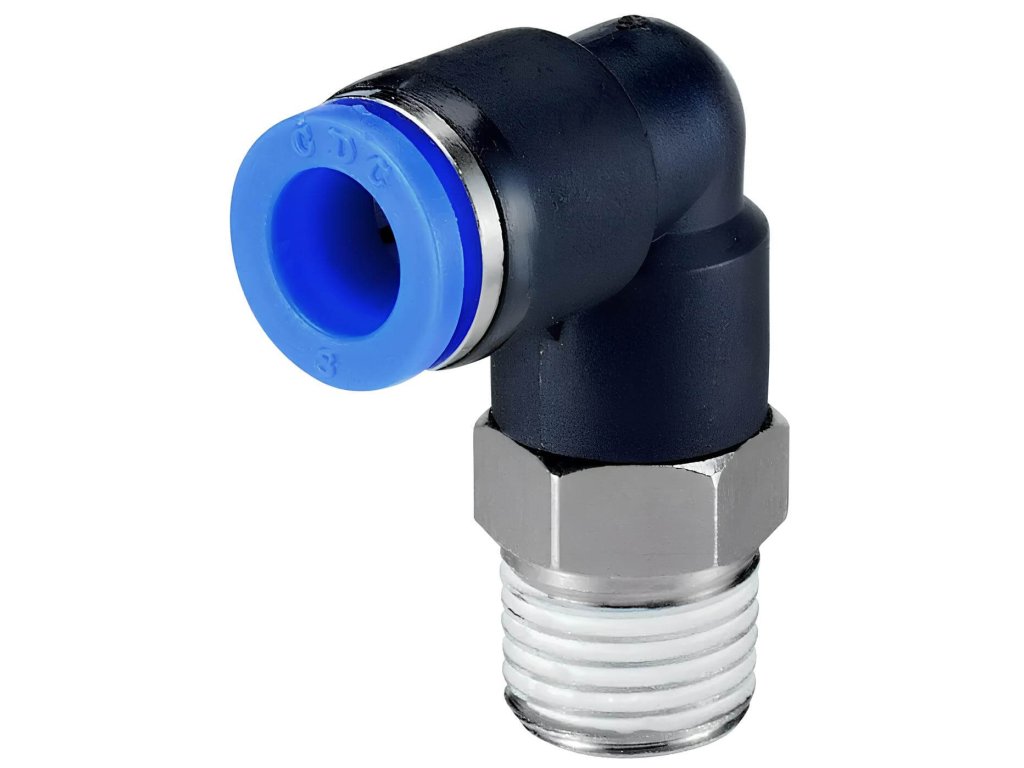

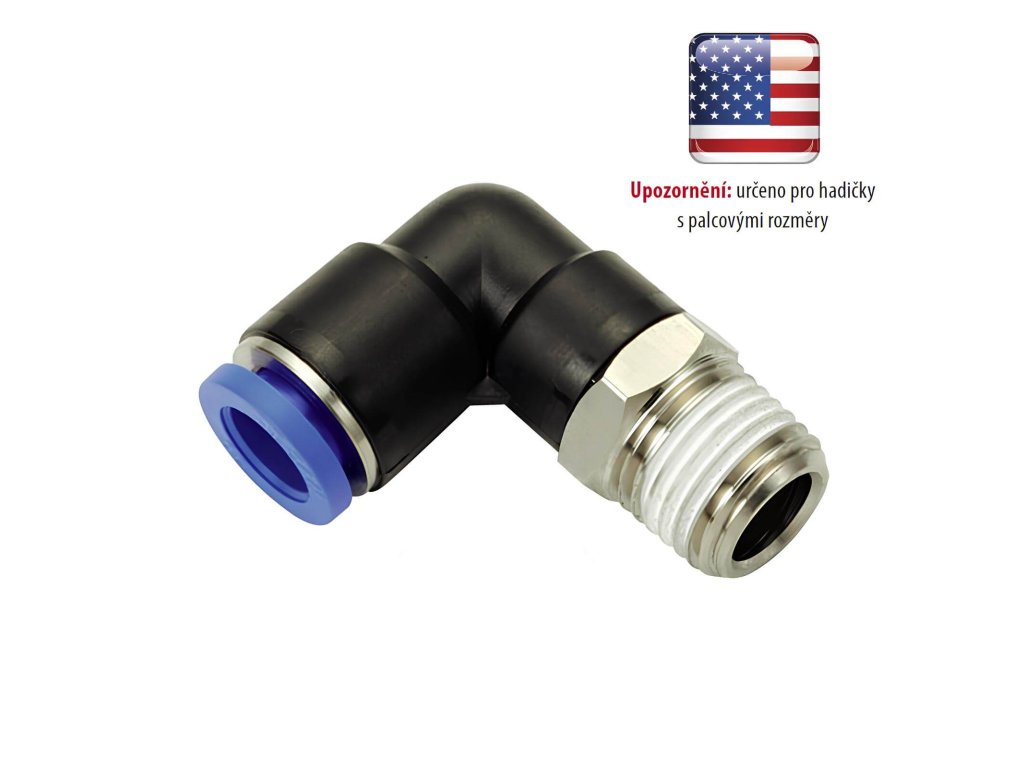

Plastic corner socket coupling in inch version - PLI-3812
- socket couplings with small size and weight; for quick and easy assembly of plastic tubing
- range with special NPT threads and for inch sizes of tubing used on technology imported from the Americas and Asia
- materials used: nylon, polyurethane, nickel-plated brass MS 58, Teflon-coated threads
- designed especially for automation, measuring and control technology and compressed air distribution in industry, engineering and automotive technology
Additional parameters
| Category: | Corner fitting male thread NPT inch version |
|---|---|
| Pressure: | 10 bars |
| A tube: | 1/2" inch (6.35 mm) |
| Material: | Brass, PU |
| Medium: | Compressed air |
| Working temperature: | -10 / +60 °C |
| Thread design: | Kuželový R |
| SW (key): | 21 |
| Width: | 38 mm |
| Seals: | PTFE |
| Thread: | R 3/8" |
| Connection system: | Plug-in system |
