    RA040 arc 45° fitting internal and external thread R

    Úhlové litinové 45° šroubení RA040 s vnitřním a vnějším závitem R z ocele pro potrubní rozvody stlačeného vzduchu
    • threaded valves for compressed air piping according to ISO 49 and EN 10242
    • certification according to CSTB, DVGW and WRAS
    • tempered cast iron EN-GMJB-350-10 - EN 1562, hot-dip galvanized with 70-80 µm zinc layer - EN 10242 Art. 5.2
    • internal taper R threads according to ISO 7-1, external taper R threads, mounting pipe threads G according to ISO 228
    • working pressure 25 bar, working temperature -20/+110 °C
    • for water and compressed air piping in households, craft, engineering and industry

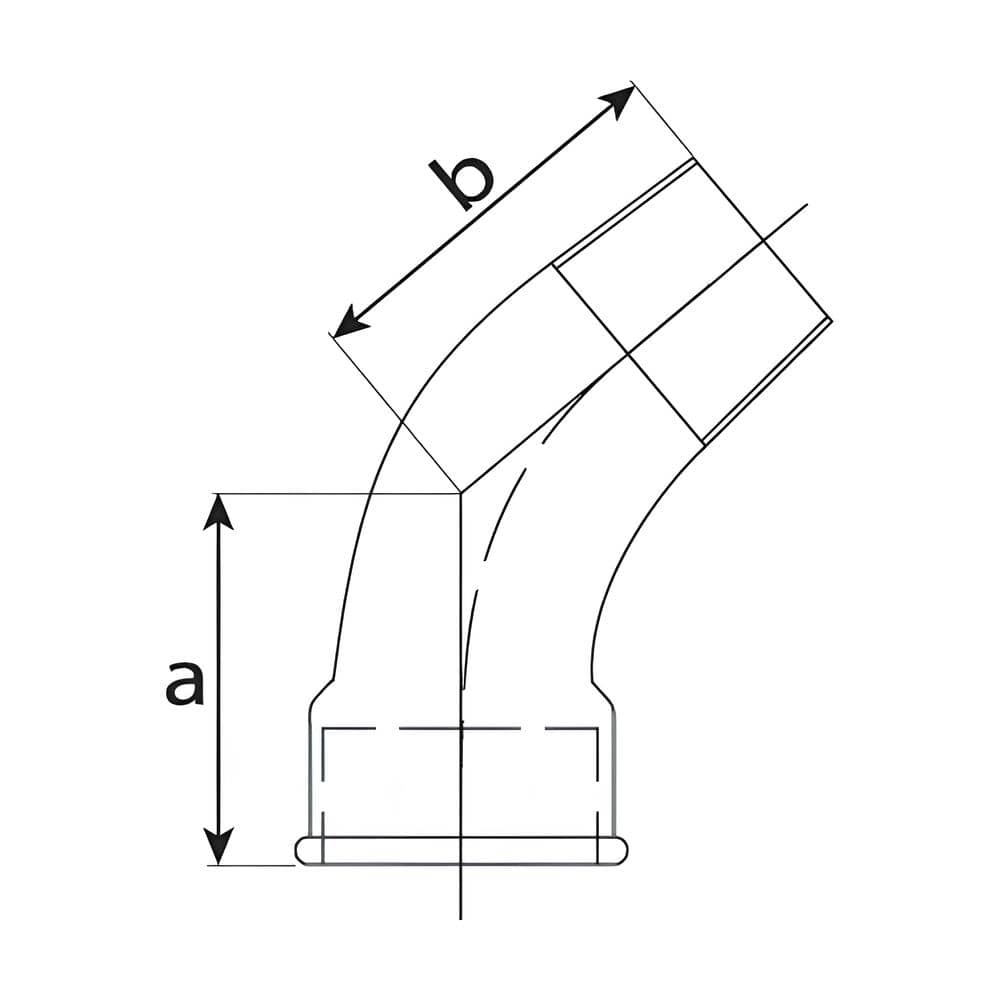

    Angular cast iron 45° fitting RA040 with internal and external thread R
    Ordering
    number    		 Internal thread
    "    		 External thread
    "    		 Length "a"
    mm    		 Length "b"
    mm
    RA040-12 R 1/2" R 1/2" 36 30
    RA040-34 R 3/4" R 3/4" 43 36
    RA040-10 R 1" R 1" 51 42
    RA040-54 R 1 1/4" R 1 1/4" 64 54
    RA040-15 R 1 1/2" R 1 1/2" 68 58
    RA040-20 R 2" R 2" 81 70
    RA040-25 R 2 1/2" R 2 1/2" 99 86
    RA040-30 R 3" R 3" 113 100
    RA040-40 R 4" R 4" 142 125
