    Robust RS pressure gauges for medium pressure measurement

    Robustní manometr nerezový pro měření tlaku média
    • Robust gauges with stainless steel body for mechanically demanding applications
    • Designed for pressure and vacuum measurement of compressed air, water and non-aggressive liquids
    • Body made of AISI 201 stainless steel, measuring member and connecting parts made of brass, acrylic sight glass
    • The body is equipped with a hole with a plug for possible filling with glycerine
    • Double scale in bar and kPa/mPa, accuracy class 1.6%
    • Bottom connection with external thread
    • Operating temperature -40/+60°C

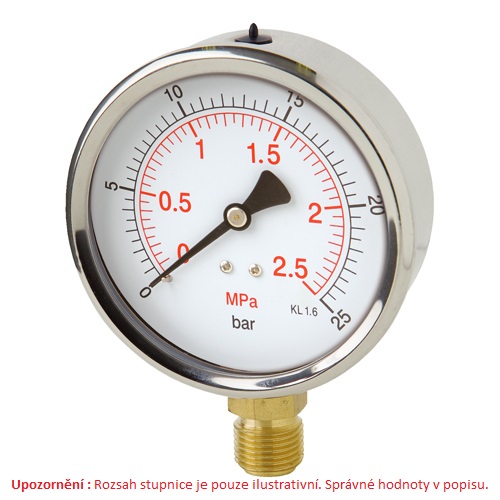

    Robust RS gauges - 100 mm diameter and 1/2" side connection
    Manometr v robustním stranovém nerezovém provedení Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connecting Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C
    RS06-01 100 -1 to 0 lower 1/2" 1,6% -40/+60
    RS06-09 100 0 to 1 lower 1/2" 1,6% -40/+60
    RS06-10 100 0 to 1.6 lower 1/2" 1,6% -40/+60
    RS06-11 100 0 to 2.5 lower 1/2" 1,6% -40/+60
    RS06-12 100 0 to 4 lower 1/2" 1,6% -40/+60
    RS06-13 100 0 to 6 lower 1/2" 1,6% -40/+60
    RS06-14 100 0 to 10 lower 1/2" 1,6% -40/+60
    RS06-15 100 0 to 16 lower 1/2" 1,6% -40/+60
    RS06-16 100 0 to 25 lower 1/2" 1,6% -40/+60
    RS06-17 100 0 to 40 lower 1/2" 1,6% -40/+60
    RS06-18 100 0 to 60 lower 1/2" 1,6% -40/+60
    RS06-19 100 0 to 100 lower 1/2" 1,6% -40/+60
    RS06-20 100 0 to 160 lower 1/2" 1,6% -40/+60
    RS06-21 100 0 to 250 lower 1/2" 1,6% -40/+60
    RS06-22 100 0 to 400 lower 1/2" 1,6% -40/+60
    RS06-23 100 0 to 600 lower 1/2" 1,6% -40/+60

    Robust RS gauges - diameter 100 mm and side connection M20x1,5
    Nerezový stranový robustní manometr Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connecting Thread
    metric    		 Class
    accuracy
    %    		 Operational
    temperature
    °C
    RS07-01 100 -1 to 0 lower M20 x 1.5 1,6% -40/+60
    RS07-09 100 0 to 1 lower M20 x 1.5 1,6% -40/+60
    RS07-10 100 0 to 1.6 lower M20 x 1.5 1,6% -40/+60
    RS07-11 100 0 to 2.5 lower M20 x 1.5 1,6% -40/+60
    RS07-12 100 0 to 4 lower M20 x 1.5 1,6% -40/+60
    RS07-13 100 0 to 6 lower M20 x 1.5 1,6% -40/+60
    RS07-14 100 0 to 10 lower M20 x 1.5 1,6% -40/+60
    RS07-15 100 0 to 16 lower M20 x 1.5 1,6% -40/+60
    RS07-16 100 0 to 25 lower M20 x 1.5 1,6% -40/+60
    RS07-17 100 0 to 40 lower M20 x 1.5 1,6% -40/+60
    RS07-18 100 0 to 60 lower M20 x 1.5 1,6% -40/+60
    RS07-19 100 0 to 100 lower M20 x 1.5 1,6% -40/+60
    RS07-20 100 0 to 160 lower M20 x 1.5 1,6% -40/+60
    RS07-21 100 0 to 250 lower M20 x 1.5 1,6% -40/+60
    RS07-22 100 0 to 400 lower M20 x 1.5 1,6% -40/+60
    RS07-23 100 0 to 600 lower M20 x 1.5 1,6% -40/+60
