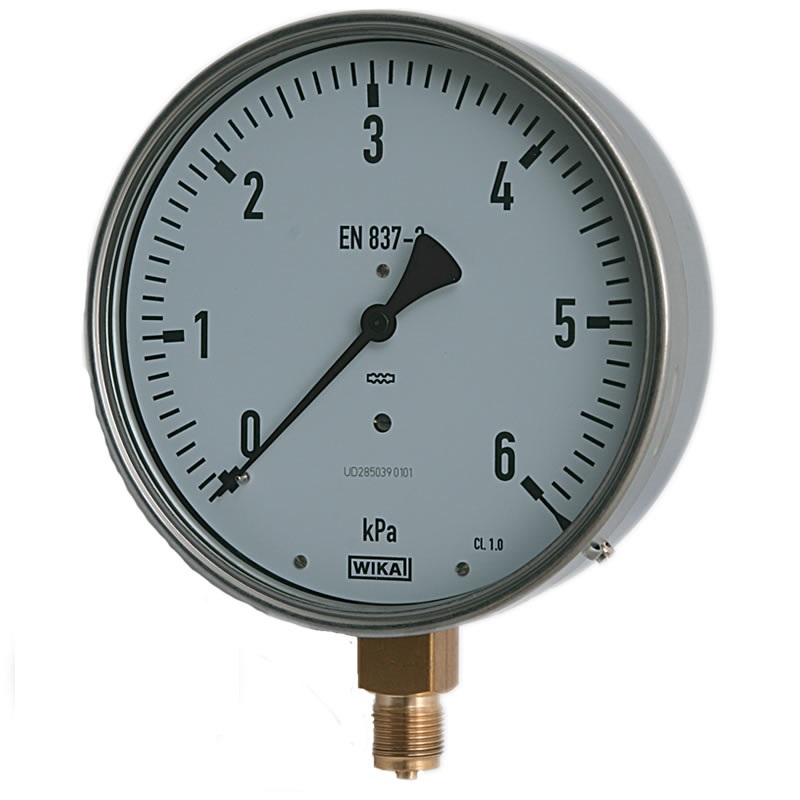

    Rugged MR160 pressure gauges for medium pressure measurement

    Manometr pro měření tlaku média v robustním provedení s ukazatelem o průměru 160 mm
    • Materials used : steel body, copper alloy measuring member and pointer, acrylic windscreen
    • Pressure gauges with bottom and rear connection, designed for pressure measurement of non-aggressive media with higher demands on the mechanical resistance of the instrument

    Rugged MRS gauges - 1/2" side connection with 160 mm pointer diameter
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connecting Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C    		 Manometr robustní stranový s ukazatelem 160 mm
    MRS301 160 -1 to 0 lower 1/2" 1,0% -40/+60
    MRS302 160 -1 to 1.5 lower 1/2" 1,0% -40/+60
    MRS304 160 -1 to 3 lower 1/2" 1,0% -40/+60
    MRS305 160 -1 to 5 lower 1/2" 1,0% -40/+60
    MRS306 160 -1 to 9 lower 1/2" 1,0% -40/+60
    MRS307 160 -1 to 15 lower 1/2" 1,0% -40/+60
    MRS308 160 0 to 0.6 lower 1/2" 1,0% -40/+60
    MRS309 160 0 to 1 lower 1/2" 1,0% -40/+60
    MRS310 160 0 to 1.6 lower 1/2" 1,0% -40/+60
    MRS311 160 0 to 2.5 lower 1/2" 1,0% -40/+60
    MRS312 160 0 to 4 lower 1/2" 1,0% -40/+60
    MRS313 160 0 to 6 lower 1/2" 1,0% -40/+60
    MRS314 160 0 to 10 lower 1/2" 1,0% -40/+60
    MRS315 160 0 to 16 lower 1/2" 1,0% -40/+60
    MRS316 160 0 to 25 lower 1/2" 1,0% -40/+60
    MRS317 160 0 to 40 lower 1/2" 1,0% -40/+60
    MRS318 160 0 to 60 lower 1/2" 1,0% -40/+60
    MRS319 160 0 to 100 lower 1/2" 1,0% -40/+60
    MRS320 160 0 to 160 lower 1/2" 1,0% -40/+60
    MRS321 160 0 to 250 lower 1/2" 1,0% -40/+60
    MRS322 160 0 to 400 lower 1/2" 1,0% -40/+60
    MRS323 160 0 to 600 lower 1/2" 1,0% -40/+60

    Rugged MRZ gauges - 1/2" rear connection with 160 mm pointer diameter
    Manometr robustní zadní s ukazatelem 160 mm Ordering
    number    		 Average
    mm    		 Pressure range
    bar    		 Connecting Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C
    MRZ413 160 0 to 6 rear 1/2" 1,0% -40/+60
    MRZ414 160 0 to 10 rear 1/2" 1,0% -40/+60
    MRZ415 160 0 to 16 rear 1/2" 1,0% -40/+60
    MRZ416 160 0 to 25 rear 1/2" 1,0% -40/+60
