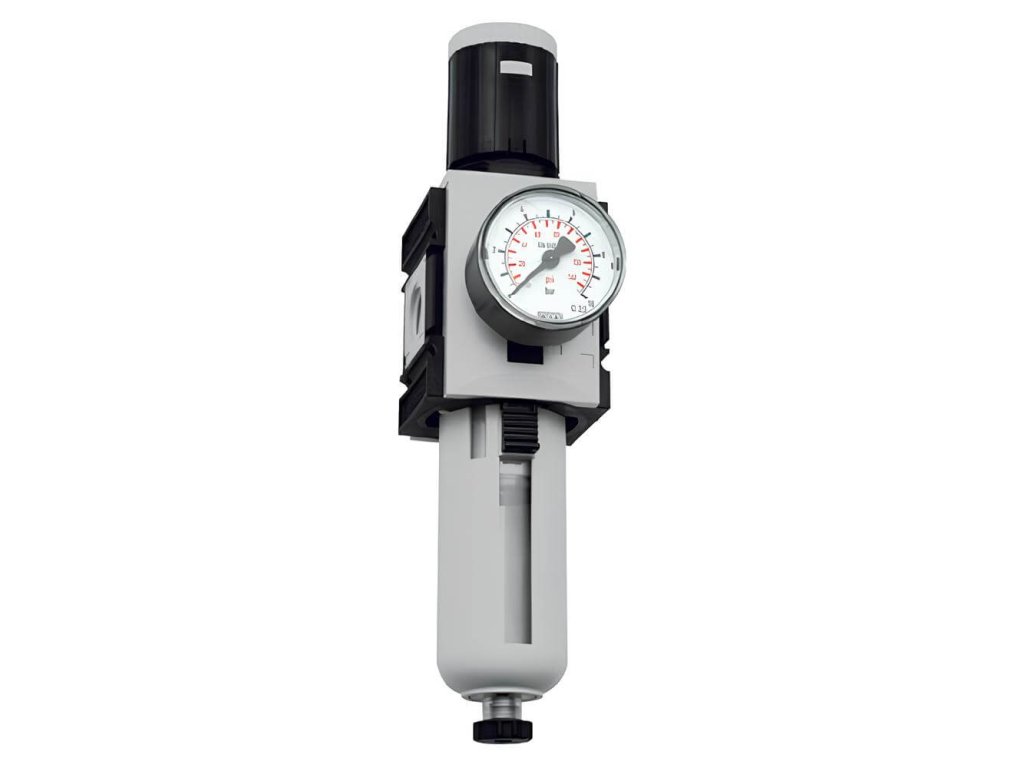

    Pressure regulator with filter 3/4", 0.2 - 4 bar, 14,500 l/min

    Code: FR34-4F
    Not rated
    9 048 Kč –2 %
    Pressure regulator with filter 3/4", 0.2 - 4 bar, 14,500 l/min
    9 048 Kč –2 % 8 867 Kč / pcs 7 328 Kč excl. VAT
    up to 14 days
    Delivery to:
    13.01.2025

    Pressure regulator with 5 um air filtration for compressed air with or without oil and for neutral gases up to 16 bar. Design according to ATEX II 2G2D. The adjusting pin can be secured by locking it against turning. Semi-automatic condensate discharge. Manometer diameter 50mm - 1/4" is included.

    Detailed information

    Related products

    sm
    Original parts
    87 Kč –2 %
    Fixing nut FUTURA size 4
    up to 14 days
    70 Kč excl. VAT
    85 Kč

    Size 4 mounting nut for FUTURA air treatment units such as pressure regulator or pressure regulator with filter. For mounting the angle for fixing the unit.

    Code: SM4F
    mw1f upevnovaci uhelnik futura
    Original parts
    295 Kč –2 %
    Fixing bracket for mounting FUTURA size 4
    up to 14 days
    239 Kč excl. VAT
    289 Kč

    Mounting bracket with size 4 lock nut for FUTURA air handling units. Installation for pressure regulator or pressure regulator with filter. Simple attachment with a bracket.

    Code: MW4F
    kp
    Original parts
    211 Kč –1 %
    FUTURA standard connection set size 4
    up to 14 days
    171 Kč excl. VAT
    207 Kč

    Standard connection set for FUTURA size 4 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP4F
    kpw
    Original parts
    297 Kč –2 %
    Connection kit with bracket for wall mounting size 4
    up to 14 days
    240 Kč excl. VAT
    291 Kč

    Connection set of FUTURA air handling units with wall bracket size 4. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW4F
    bf
    Original parts
    579 Kč –2 %
    Spare container FUTURA semi-automatic size 4
    up to 14 days
    469 Kč excl. VAT
    567 Kč

    Replacement container for FUTURA filters in size 4 with semi-automatic drainage - (manual manual and automatic drainage based on the fullness of the container). Suitable only...

    Code: BF4F
    bfm
    Original parts
    2 103 Kč –2 %
    Replacement robust container FUTURA semi-automatic size 4
    up to 14 days
    1 703 Kč excl. VAT
    2 061 Kč

    Replacement sturdy container for FUTURA filters in size 4 with semi-automatic drainage - (manual manual and automatic drainage based on container fullness). Suitable only for...

    Code: BFM4F
    bf am
    Original parts
    2 252 Kč –2 %
    Container with automatic release FUTURA size 4
    up to 14 days
    1 824 Kč excl. VAT
    2 207 Kč

    Replacement container for FUTURA filters in size 4 with automatic condensate release by means of a float. Suitable only for FUTURA series air treatment filter units.

    Code: BF4F-AM
    bfm am
    Original parts
    3 777 Kč –2 %
    Robust container with automatic drain FUTURA size 4
    up to 14 days
    3 059 Kč excl. VAT
    3 701 Kč

    Replacement robust container for FUTURA filters in size 4 with automatic condensate release by means of a float. Suitable only for FUTURA series air treatment filter units.

    Code: BFM4F-AM
    w
    Original parts
    622 Kč –2 %
    Fixing bracket with screws FUTURA size 4
    up to 14 days
    503 Kč excl. VAT
    609 Kč

    Fixing bracket with screws under the cover of the FUTURA size 4 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W4F
    Show all related products Previous product Next product

    Product detailed description

    FUTURA compressed air pressure regulator including filtration - FR34-4F

    • Designed for compressed air with or without oil and for neutral gases
    • Design according to ATEX II 2G2D
    • Maximum inlet pressure 16 bar, operating temperature -10°C to +50°C
    • Materials : Grivory body (PA66), POM spring, NBR gasket and diaphragm
    • Adjusting pin can be locked against turning, semi-automatic condensate drain
    • Pressure gauge diameter 50mm - 1/4" is included
    • Filtration capacity: 5 um

    Additional parameters

    Category: Compressed air pressure regulator with 5 um filtration
    Version: Pressure regulator with filter
    Pressure: 16 bar
    Dimensions: 85 x 329 mm
    Certification: ATEX II 2G2D
    Filtering ability: 5 um
    Filter insert: Replacement insert 20 um (FV-4F)
    Medium: Compressed air
    Vessel volume: 87 cm3
    Condensate discharge: Semi-automatic
    Working temperature: -10 / 50 °C
    Flow: 14,500 l/min
    Regulatory range: 0.2 - 4 bar
    Pressure gauge range: 0 - 6 bar
    Included in delivery: Manometer
    Thread: G 3/4"
    Thread for manometer: 1/4"
