    Pressure regulator 3/8", 0.1 - 1 bar, 4,300 l/min

    Code: R382-1F
    Not rated
    2 510 Kč –1 %
    Pressure regulator 3/8", 0.1 - 1 bar, 4,300 l/min
    2 510 Kč –1 % 2 460 Kč / pcs 2 033 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024
    Futura Treatment Units - Compressed Air Pressure Regulators, Designed for compressed air with or without oil and for neutral gases, Designed according to ATEX II 2G2D, Maximum inlet pressure 16 bar, working temperature -10°C to +50°C, Materials : Grivory (PA66) body, POM spring, NBR gasket and diaphragm, Adjusting pin can be locked against half-turn, Manometer diameter 50mm - 1/4" included

    Detailed information

    Related products

    sm
    Original parts
    86 Kč –2 %
    Fixing nut FUTURA size 2
    Stock (2 pcs)
    69 Kč excl. VAT
    84 Kč

    Size 2 mounting nut for FUTURA air treatment units such as pressure regulator or pressure regulator with filter. For mounting the angle for fixing the unit.

    Code: SM2F
    mw1f upevnovaci uhelnik futura
    Original parts
    387 Kč –2 %
    Fixing bracket for mounting FUTURA size 2
    up to 14 days
    313 Kč excl. VAT
    379 Kč

    Mounting bracket with size 2 lock nut for FUTURA air handling units. Installation for pressure regulator or pressure regulator with filter. Simple attachment with a bracket.

    Code: MW2F
    kp
    Original parts
    124 Kč –1 %
    FUTURA standard connection set size 2
    Stock (3 pcs)
    101 Kč excl. VAT
    122 Kč

    Standard connection set for FUTURA size 2 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP2F
    kpw
    Original parts
    246 Kč –2 %
    Connection kit with bracket for wall mounting size 2
    Stock (1 pcs)
    199 Kč excl. VAT
    241 Kč

    Connection set of FUTURA air handling units with wall bracket size 2. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW2F
    w
    Original parts
    490 Kč –1 %
    Fixing bracket with screws FUTURA size 2
    Stock (1 pcs)
    398 Kč excl. VAT
    481 Kč

    Fixing bracket with screws under the cover of the FUTURA size 2 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W2F
    Show all related products Previous product Next product

    Product detailed description

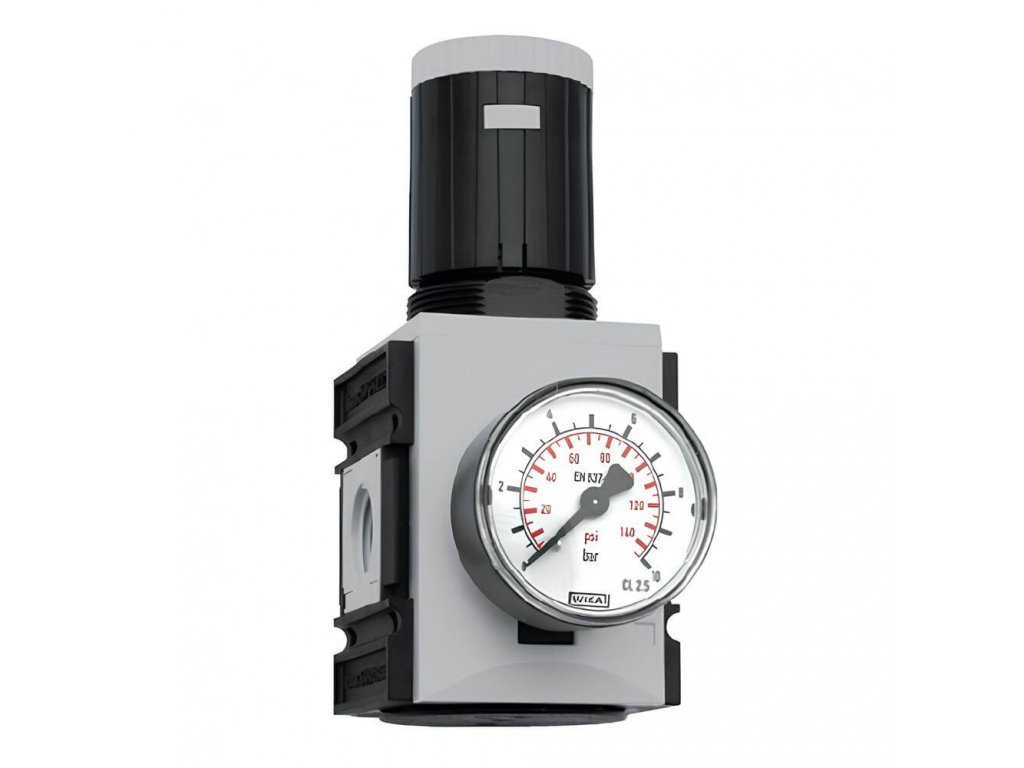

    Air pressure regulator Futura - R382-1F

    • Designed for compressed air with or without oil and for neutral gases
    • Design according to ATEX II 2G2D
    • Maximum inlet pressure 16 bar, operating temperature -10°C to +50°C
    • Materials : Grivory body (PA66), POM spring, NBR gasket and diaphragm
    • Adjusting pin can be secured by locking against half-turn
    • Manometer diameter 50mm - 1/4" included

    Additional parameters

    Category: FUTURA compressed air pressure regulators
    Version: Pressure regulator
    Pressure: 16 bar

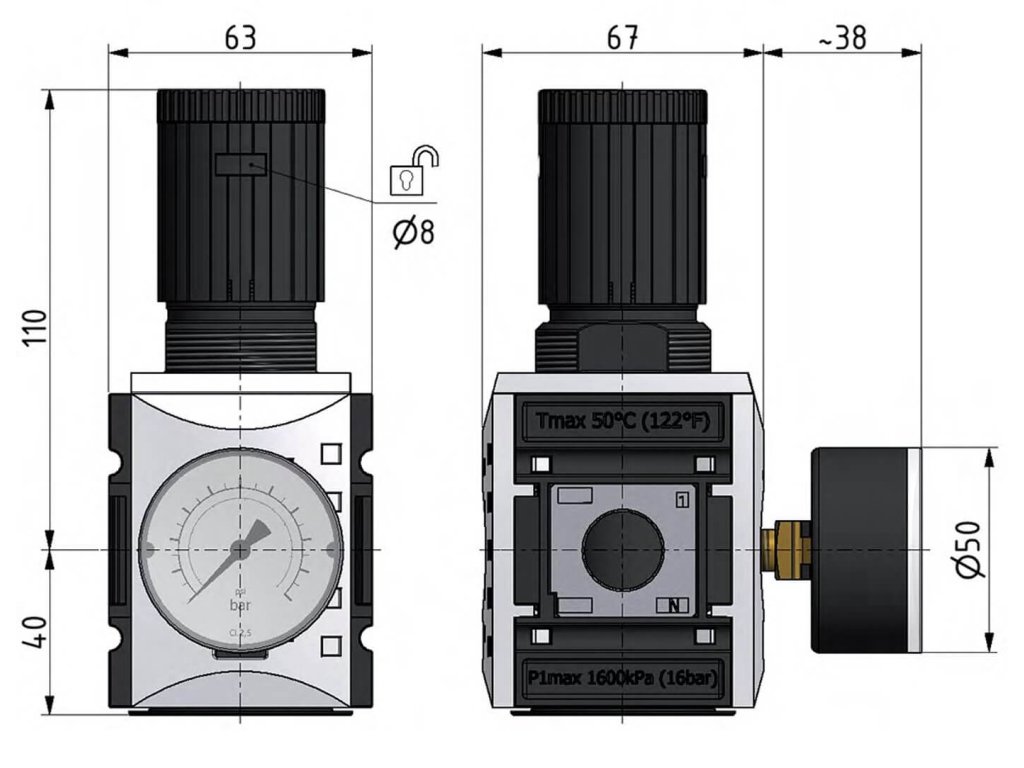

    Dimensions: 63 x 149 mm
    Certification: ATEX II 2G2D
    Medium: Compressed air
    Working temperature: -10 / 50 °C
    Flow: 4,300 l/min
    Regulatory range: 0.1 - 1 bar
    Pressure gauge range: 0 - 1.6 bar
    Included in delivery: Manometer
    Thread: G 3/8"
    Thread for manometer: 1/4"
