    Pressure regulator 1", 0.1 - 1 bar, 14,500 l/min

    Code: R10-1F
    Not rated
    4 679 Kč –5 %
    Pressure regulator 1", 0.1 - 1 bar, 14,500 l/min
    4 679 Kč –5 % 4 445 Kč / pcs 3 674 Kč excl. VAT
    up to 14 days
    Delivery to:
    16.05.2025
    Delivery offer
    Futura Treatment Units - Compressed Air Pressure Regulators, Designed for compressed air with or without oil and for neutral gases, Designed according to ATEX II 2G2D, Maximum inlet pressure 16 bar, working temperature -10°C to +50°C, Materials : Grivory (PA66) body, POM spring, NBR gasket and diaphragm, Adjusting pin can be locked against half-turn, Manometer diameter 50mm - 1/4" included

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    sm
    Original parts
    80 Kč –5 %
    Fixing nut FUTURA size 4
    up to 14 days
    63 Kč excl. VAT
    76 Kč

    Size 4 mounting nut for FUTURA air treatment units such as pressure regulator or pressure regulator with filter. For mounting the angle for fixing the unit.

    Code: SM4F
    mw1f upevnovaci uhelnik futura
    Original parts
    274 Kč –4 %
    Fixing bracket for mounting FUTURA size 4
    up to 14 days
    216 Kč excl. VAT
    261 Kč

    Mounting bracket with size 4 lock nut for FUTURA air handling units. Installation for pressure regulator or pressure regulator with filter. Simple attachment with a bracket....

    Code: MW4F
    kp
    Original parts
    197 Kč –5 %
    FUTURA standard connection set size 4
    up to 14 days
    155 Kč excl. VAT
    187 Kč

    Standard connection set for FUTURA size 4 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP4F
    kpw
    Original parts
    276 Kč –5 %
    Connection kit with bracket for wall mounting size 4
    up to 14 days
    217 Kč excl. VAT
    262 Kč

    Connection set of FUTURA air handling units with wall bracket size 4. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW4F
    w
    Original parts
    579 Kč –5 %
    Fixing bracket with screws FUTURA size 4
    up to 14 days
    455 Kč excl. VAT
    550 Kč

    Fixing bracket with screws under the cover of the FUTURA size 4 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W4F
    Show all related products Previous product Next product

    Product detailed description

    Air pressure regulator Futura - R10-1F

    • Designed for compressed air with or without oil and for neutral gases
    • Design according to ATEX II 2G2D
    • Maximum inlet pressure 16 bar, operating temperature -10°C to +50°C
    • Materials : Grivory body (PA66), POM spring, NBR gasket and diaphragm
    • The adjusting pin can be secured by locking it against turning
    • Manometer diameter 50mm - 1/4" included

    Additional parameters

    Category: FUTURA compressed air pressure regulators
    Version: Pressure regulator
    Pressure: 16 bar

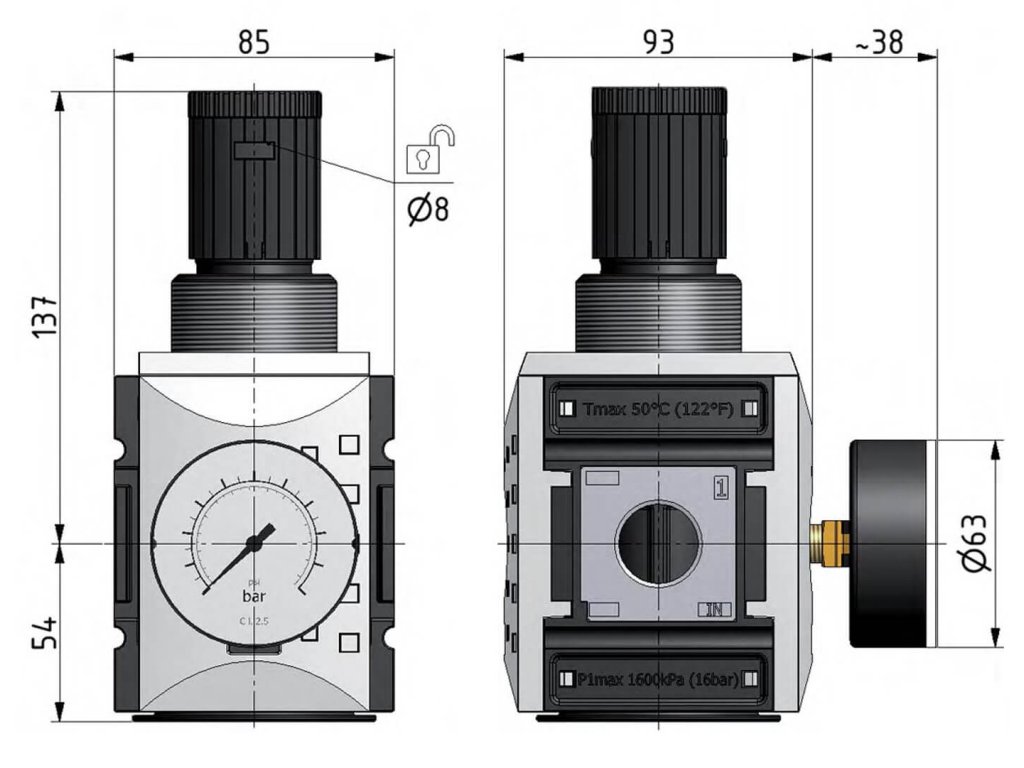

    Dimensions: 85 x 191 mm
    Certification: ATEX II 2G2D
    Medium: Compressed air
    Working temperature: -10 / 50 °C
    Flow: 14,500 l/min
    Regulatory range: 0.1 - 1 bar
    Pressure gauge range: 0 - 1.6 bar
    Included in delivery: Manometer
    Thread: G 1"
    Thread for manometer: 1/4"
