Pressure regulator 3/8", 1,400 l/min, 2.0-35 bar
Code: 302.335
Product detailed description
Pressure regulator for compressed air with secondary vent up to 60 bar - 302.335
- regulators for pressure reduction of compressed air and other non-fluid and non-teoic gases
- maximum inlet pressure 60 bar, various outlet pressures, operating temperature -10 to +90°C
- equipped with manometer for outlet pressure with a diameter of 63 mm, option on both sides of the device
- outlet pressure adjustment by manual pin, secondary pressure venting
- materials used : brass body, NBR gasket
Additional parameters
| Category: | 302 pressure regulators with inlet up to 60 bar |
|---|---|
| Pressure: | 60 bar |

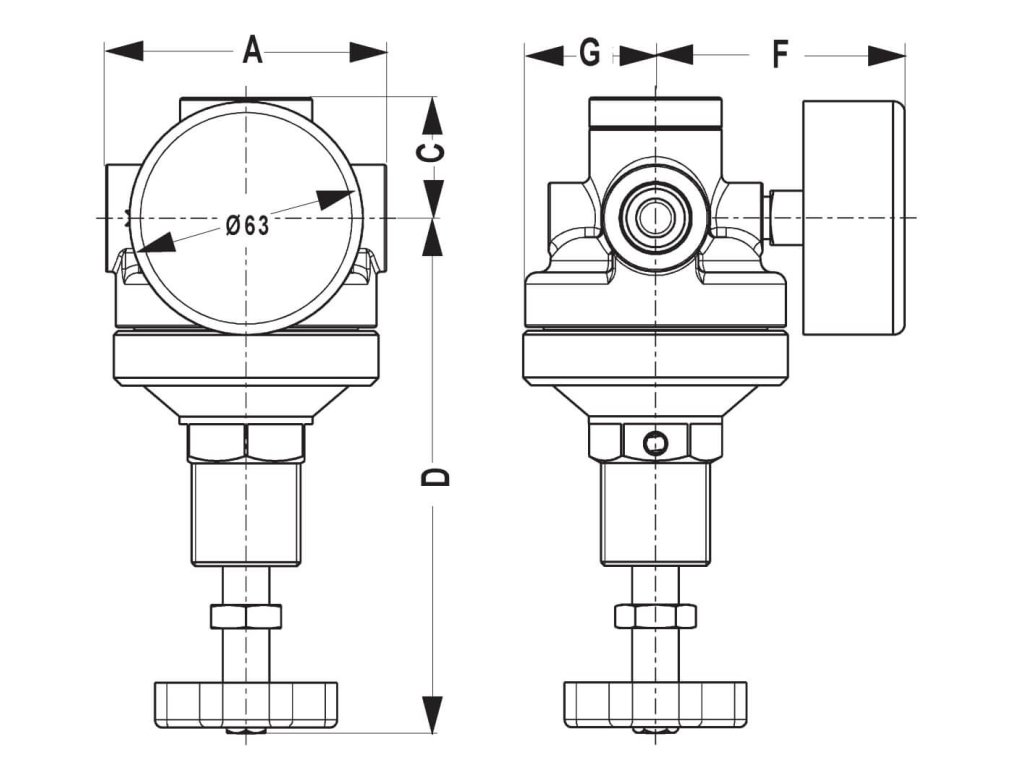

| Dimensions: | 72 x 100 x 164 mm |
| Weight: | 1.5 kg |
| Flow: | 1 400 l/min |
| Regulatory range: | 2.0 to 35 bar |
| Thread: | G 3/8" |
