Pressure regulator 1", 7,830 l/min, 0.5-6 bar

Pressure regulator 1", 7,830 l/min, 0.5-6 bar
8 643 Kč –5 %
8 643 Kč –5 % 8 211 Kč / pcs 6 786 Kč excl. VAT
up to 14 days
Set up a watchdog
We deliver to:
28.04.2025
Delivery offer
Kalkulačka splátek

Regulator for pressure reduction of compressed air and other non-volatile and non-toxic gases with G 1" inlet and 0,5 - 6 Bar outlet pressure control. Maximum inlet pressure 40 bar, flow rate 7,830 l/min and operating temperature -10 to +90°C. Equipped with a manometer for displaying the regulated pressure of 63 mm, mounting in any direction. Output pressure adjustment by pin, secondary pressure venting, adjustment accuracy 1.5%.

Detailed information

Code: 280.392
Brand: EWO
Add to inquiry
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Air pressure regulator with secondary vent - 280.392

  • regulators for pressure reduction of compressed air and other non-volatile and non-toxic gases
  • maximum inlet pressure 40 bar, various outlet pressures, operating temperature -10 to +90°C
  • equipped with manometer for 63 mm outlet pressure, mounting in any direction
  • outlet pressure adjustment by pin, secondary pressure venting
  • adjustment accuracy <10%(1/4"), <4%(1/2"), <1.5%(3/4...")
  • materials used : zinc alloy body, NBR gasket

Precision pressure regulators including 40 bar pressure gauge

Regulation stlačeného vzduchu
Order no. Thread Flow
l/min
Inlet pressure
Bar
Regulation
Bar
Accuracy Weight
kg

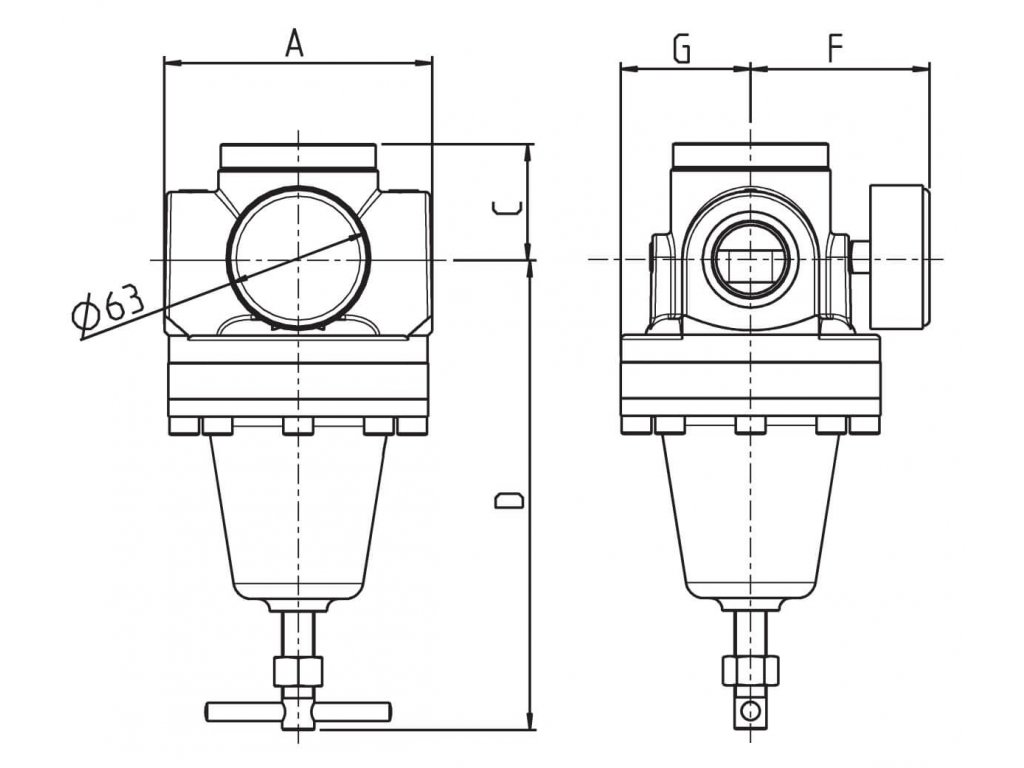

Dimensions mm
<% Height Width
286.321 1/4" 430 40 0.5 to 3 10% 0,39 104 45
286.322 1/4" 430 40 0.5 to 6 10% 0,39 104 45
286.323 1/4" 430 40 0.5 to 10 10% 0,39 104 45
286.324 1/4" 430 40 0.5 to 16 10% 0,39 104 45
274.661 1/2" 1250 40 0.5 to 3 4% 1,0 145 72
274.662
1/2" 1250 40 0.5 to 6 4% 1,0 145 72
274.663 1/2" 1250 40 0.5 to 10 4% 1,0 145 72
274.664 1/2" 1250 40 0.5 to 16 4% 1,0 145 72
274.665 1/2" 1250 40 0.5 to 25 4% 1,0 145 72
280.381 3/4" 7830 40 0.5 to 3 1,5% 3,48 216 138 Regulace stlačeného vzduchu
280.382 3/4" 7830 40 0.5 to 6 1,5% 3,48 216 138
280.383 3/4" 7830 40 0.5 to 10 1,5% 3,48 216 138
280.384 3/4" 7830 40 0.5 to 16 1,5% 3,48 216 138
280.385 3/4" 7830 40 0.5 to 25 1,5% 3,48 216 138
280.391 1" 7830 40 0.5 to 3 1,5% 3,48 216 138
280.392 1" 7830 40 0.5 to 6 1,5% 3,48 216 138
280.393 1" 7830 40 0.5 to 10 1,5% 3,48 216 138
280.394 1" 7830 40 0.5 to 16 1,5% 3,48 216 138
280.395 1" 7830 40 0.5 to 25 1,5% 3,48 216 138
280.3101 1 1/4" 12160 40 0.5 to 3 1,5% 5,26 240 138
280.3102 1 1/4" 12160 40 0.5 to 6 1,5% 5,26 240 138
280.3103 1 1/4" 12160 40 0.5 to 10 1,5% 5,26 240 138
280.3104 1 1/4" 12160 40 0.5 to 16 1,5% 5,26 240 138
280.3105 1 1/4" 12160 40 0.5 to 25 1,5% 5,26 240 138
280.3111 1 1/2" 12160 40 0.5 to 3 1,5% 5,26 240 138
280.3112 1 1/2" 12160 40 0.5 to 6 1,5% 5,26 240 138
280.3113 1 1/2" 12160 40 0.5 to 10 1,5% 5,26 240 138
280.3114 1 1/2" 12160 40 0.5 to 16 1,5% 5,26 240 138
280.3115 1 1/2" 12160 40 0.5 to 25 1,5% 5,26 240 138
Pressure gauge is included in the delivery of pressure regulators
Product is included in the following categories: Air conditioning Pressure regulators

Technical parameters

Category: Air pressure regulators and multipliers
Pressure: 40 bar (40 atm, 580 PSI, 4 MPa)
Dimensions: 116 x 138 x 216 mm
Weight: 3.48 kg
Flow: 8 l/min (0,47 m³/h, 0,2764 CFM)
Regulatory range: 0.5 to 6 bar
Thread: G 1"
