    Pressure regulator 1", 7,830 l/min, 0.5-16 bar

    Code: 280.394
    Not rated
    Brand: EWO
    11 509 Kč –5 %
    Pressure regulator 1", 7,830 l/min, 0.5-16 bar
    11 509 Kč –5 % 10 933 Kč / pcs 9 036 Kč excl. VAT
    up to 14 days
    Delivery to:
    11.12.2024

    Regulator for pressure reduction of compressed air and other non-volatile and non-toxic gases with G 1" inlet and outlet pressure regulation 0,5 - 16 Bar. Maximum inlet pressure 40 bar, flow rate 7,830 l/min and operating temperature -10 to +90°C. Equipped with a manometer for displaying the regulated pressure of 63 mm, mounting in any direction. Output pressure adjustment by pin, secondary pressure venting, adjustment accuracy 1.5%.

    Detailed information

    Product detailed description

    Air pressure regulator with secondary vent - 280.394

    • regulators for pressure reduction of compressed air and other non-volatile and non-toxic gases
    • maximum inlet pressure 40 bar, various outlet pressures, operating temperature -10 to +90°C
    • equipped with manometer for 63 mm outlet pressure, mounting in any direction
    • outlet pressure adjustment by pin, secondary pressure venting
    • adjustment accuracy <10%(1/4"), <4%(1/2"), <1.5%(3/4...")
    • materials used : zinc alloy body, NBR gasket

    Precision pressure regulators including 40 bar pressure gauge

    		 Regulation stlačeného vzduchu
    Order no. Thread Flow
    l/min    		 Inlet pressure
    Bar    		 Regulation
    Bar    		 Accuracy Weight
    kg    		 Dimensions mm
    <% Height Width
    286.321 1/4" 430 40 0.5 to 3 10% 0,39 104 45
    286.322 1/4" 430 40 0.5 to 6 10% 0,39 104 45
    286.323 1/4" 430 40 0.5 to 10 10% 0,39 104 45
    286.324 1/4" 430 40 0.5 to 16 10% 0,39 104 45
    274.661 1/2" 1250 40 0.5 to 3 4% 1,0 145 72
    274.662
    		 1/2" 1250 40 0.5 to 6 4% 1,0 145 72
    274.663 1/2" 1250 40 0.5 to 10 4% 1,0 145 72
    274.664 1/2" 1250 40 0.5 to 16 4% 1,0 145 72
    274.665 1/2" 1250 40 0.5 to 25 4% 1,0 145 72
    280.381 3/4" 7830 40 0.5 to 3 1,5% 3,48 216 138 Regulace stlačeného vzduchu
    280.382 3/4" 7830 40 0.5 to 6 1,5% 3,48 216 138
    280.383 3/4" 7830 40 0.5 to 10 1,5% 3,48 216 138
    280.384 3/4" 7830 40 0.5 to 16 1,5% 3,48 216 138
    280.385 3/4" 7830 40 0.5 to 25 1,5% 3,48 216 138
    280.391 1" 7830 40 0.5 to 3 1,5% 3,48 216 138
    280.392 1" 7830 40 0.5 to 6 1,5% 3,48 216 138
    280.393 1" 7830 40 0.5 to 10 1,5% 3,48 216 138
    280.394 1" 7830 40 0.5 to 16 1,5% 3,48 216 138
    280.395 1" 7830 40 0.5 to 25 1,5% 3,48 216 138
    280.3101 1 1/4" 12160 40 0.5 to 3 1,5% 5,26 240 138
    280.3102 1 1/4" 12160 40 0.5 to 6 1,5% 5,26 240 138
    280.3103 1 1/4" 12160 40 0.5 to 10 1,5% 5,26 240 138
    280.3104 1 1/4" 12160 40 0.5 to 16 1,5% 5,26 240 138
    280.3105 1 1/4" 12160 40 0.5 to 25 1,5% 5,26 240 138
    280.3111 1 1/2" 12160 40 0.5 to 3 1,5% 5,26 240 138
    280.3112 1 1/2" 12160 40 0.5 to 6 1,5% 5,26 240 138
    280.3113 1 1/2" 12160 40 0.5 to 10 1,5% 5,26 240 138
    280.3114 1 1/2" 12160 40 0.5 to 16 1,5% 5,26 240 138
    280.3115 1 1/2" 12160 40 0.5 to 25 1,5% 5,26 240 138
    Pressure gauge is included in the delivery of pressure regulators

    Additional parameters

    Category: Precision pressure regulators 286 with inlet up to 40 bar
    Pressure: 40 bar

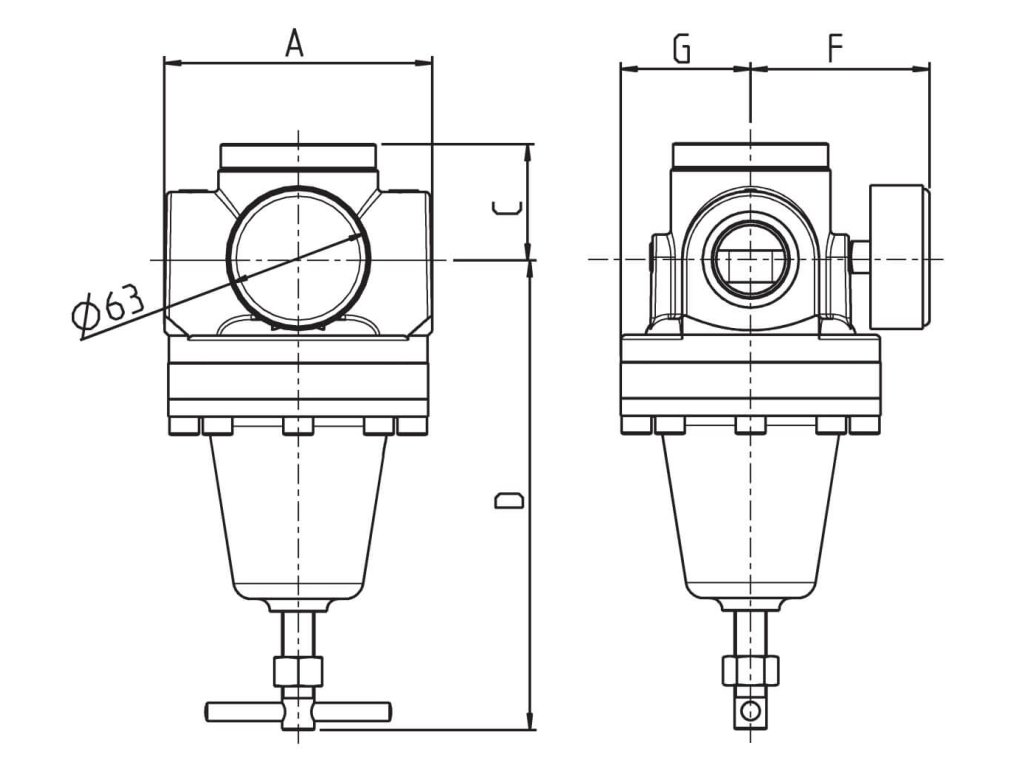

    Dimensions: 116 x 138 x 216 mm
    Weight: 3.48 kg
    Flow: 7,830 l/min
    Regulatory range: 0.5 to 16 bar
    Thread: G 1"
