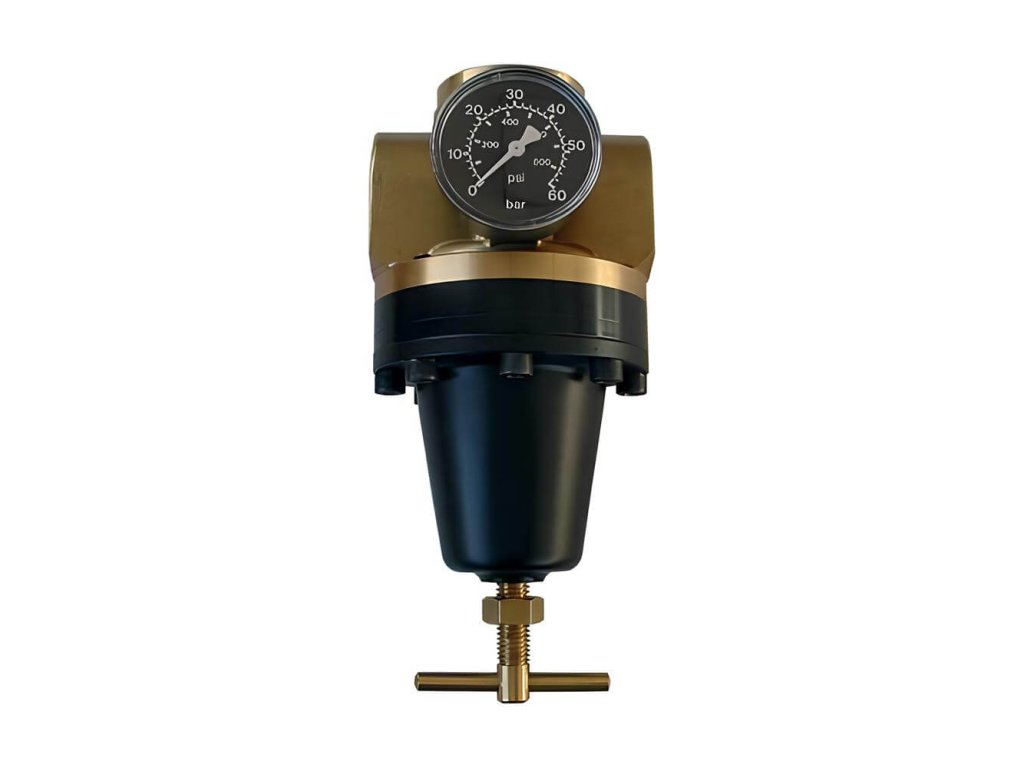

Pressure regulator 1", 5,000 l/min, 2.0-35 bar

Code: 302.395
25 291 Kč –5 %
Pressure regulator 1", 5,000 l/min, 2.0-35 bar
25 291 Kč –5 % 24 027 Kč / pcs 19 857 Kč excl. VAT
up to 14 days
Delivery to:
11.12.2024
High pressure regulator 1" for pressure reduction of compressed air and other non-volatile and non-toxic gases. Maximum inlet pressure 60 bar with a control range of 2.0 - 35 bar and a maximum flow rate of 5,000 l/min. Operating temperature -10 to +90°C. Outlet pressure adjustment by manual pin with secondary pressure venting. Materials used : brass body, NBR gasket.

Detailed information

Product detailed description

Pressure regulator for compressed air with secondary vent up to 60 bar - 302.395

  • regulators for pressure reduction of compressed air and other non-fluid and non-teoic gases
  • maximum inlet pressure 60 bar, various outlet pressures, operating temperature -10 to +90°C
  • equipped with manometer for outlet pressure with a diameter of 63 mm, option on both sides of the device
  • outlet pressure adjustment by manual pin, secondary pressure venting
  • materials used : brass body, NBR gasket

Additional parameters

Category: 302 pressure regulators with inlet up to 60 bar
Pressure: 60 bar

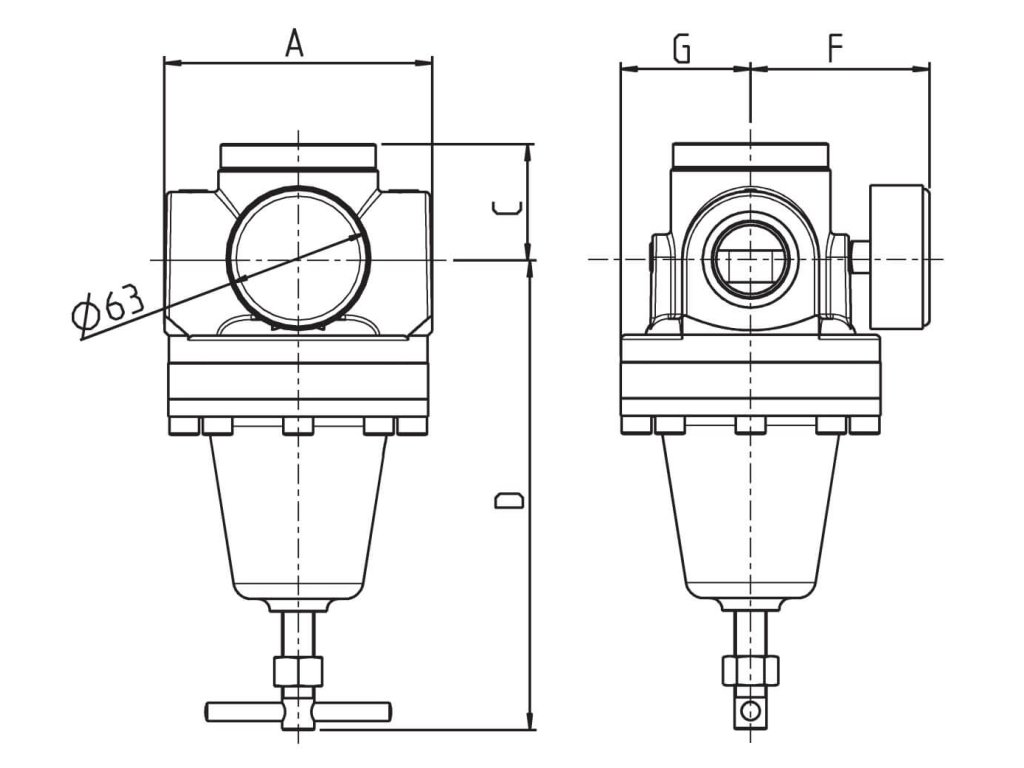

Dimensions: 118 x 138 x 257 mm
Weight: 7,1 kg
Flow: 5,000 l/min
Regulatory range: 2.0 to 35 bar
Thread: G 1"
