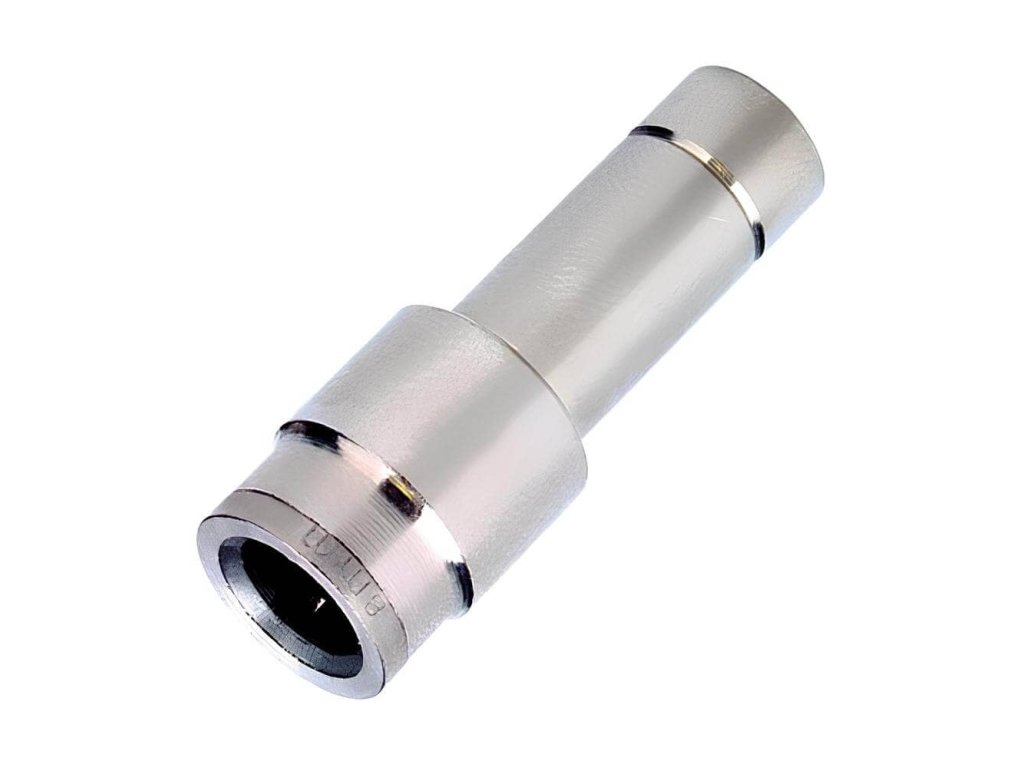

Reduction coupling 6 - 8 mm
Code: MPGJ-68Product detailed description
Reducing socket pipe 6 - 8 mm - metal socket version
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
| Category: | Metal reducing tube |
|---|---|
| Pressure: | 10 bars |
| Adapter: | 8 mm |
| A tube: | 6 mm |
| Material: | Brass |
| Medium: | Compressed air |
| Working temperature: | -10 / +80 °C |
| Average: | 14 mm |
| Connection system: | Plug-in system |
