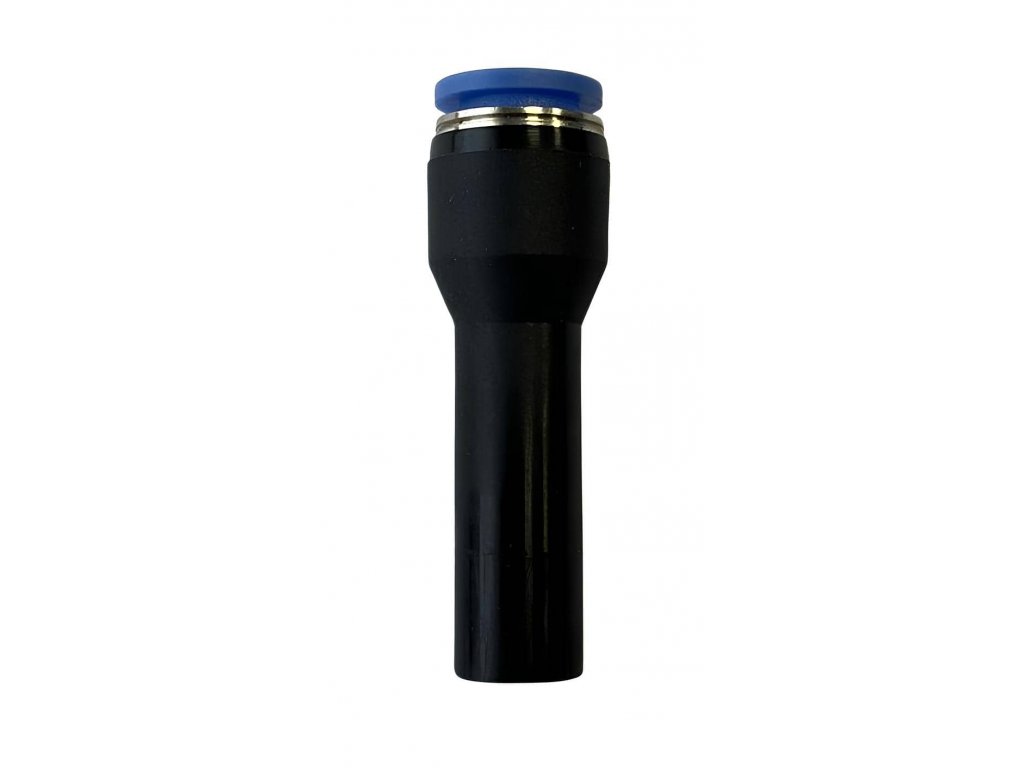

Reduction of clutches 6 - 12

Code: PGJ-612

Tip

1 rating

Brand: Pneumatics & Hydraulics

97 Kč –9 %

97 Kč –9 % 88 Kč / pcs 73 Kč excl. VAT

(124 pcs)

Delivery to: 22.11.2024

Socket reducer for quick fitting of 6 mm outer hose and 12 mm adapter. Particularly suitable for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Maximum working temperature in the range -10/+60 °C and pressure 10 bar.

Detailed information

Product detailed description

Coupling reducer with 6 mm outer hose and 12 mm adapter

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

Additional parameters

Category:	Reduction of push-in couplings
Pressure:	10 bars
Adapter:	12 mm
A tube:	6 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Average:	14 mm
Seals:	PTFE
Connection system:	Plug-in system
