    Pulse valves G353 diaphragm design

    Pulzní ventily G353 nepřímo řízené membránové provedení
    • indirectly controlled valves with a minimum pressure of 0.35 bar with 2/2 NC function
    • connection threads 3/4" to 2 1/2"
    • made of aluminium, NBR sealing
    • supply includes valve, coil and connector DIN 46244 for electric version

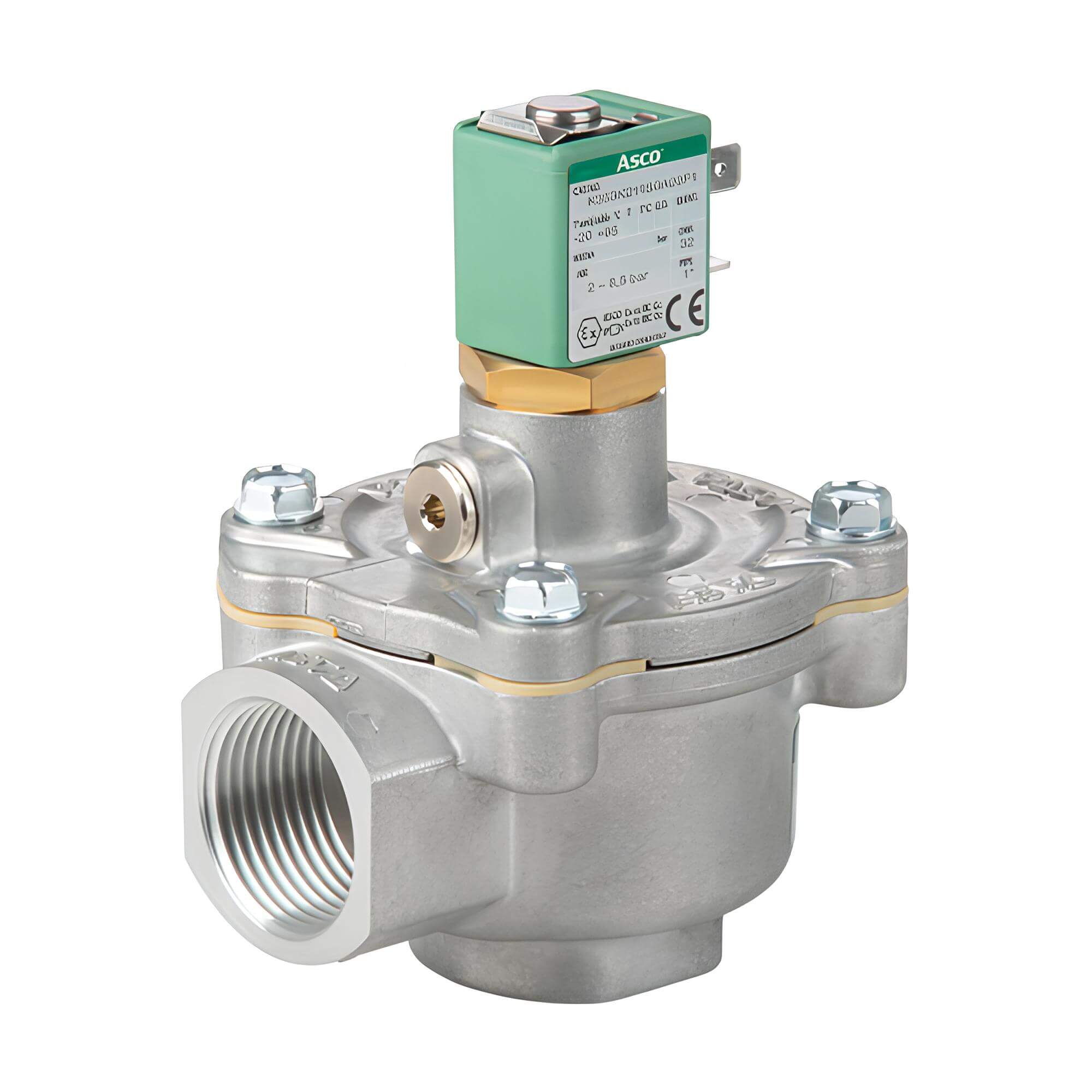

    Pulse valves G353, diaphragm, electrically operated
    Ordering
    number    		 Functions Thread
    "    		 Luminosity
    mm    		 Flow Kv
    l/min    		 Min. pressure
    bar    		 Operating pressure bar
    AC DC
    G353-34-... 2/2NC 3/4" 24 233 0,35 8,5 8,5
    G353-10-... 2/2NC 1" 27 283 0,35 8,5 8,5
    G353-15-... 2/2NC 1 1/2" 52 733 0,35 8,5 8,5
    G353-20-... 2/2NC 2" 66 1290 0,35 8,5 8,5
    G353-25-... 2/2NC 2 1/2" 66 1540 0,35 8,5 8,5

    Pulse valves G353, diaphragm, pneumatically operated
    Ordering
    number    		 Functions Thread
    "    		 Control thread Luminosity
    mm    		 Flow Kv
    l/min    		 Min. pressure
    bar    		 Operating pressure
    bar
    G353-34P 2/2NC 3/4" 1/8" 24 233 0,35 8,5
    G353-10P 2/2NC 1" 1/8" 27 283 0,35 8,5
    G353-15P 2/2NC 1 1/2" 1/8" 52 768 0,35 8,5
    G353-20P 2/2NC 2" 1/4" 66 1290 0,35 8,5
    G353-25P 2/2NC 2 1/2" 1/4" 66 1540 0,35 8,5

    Bestsellers

    Pulse valves electric G353 G1 1/2"
    Pulse valves electric G353 G1 1/2"
    up to 14 days
    Code: G353-15-24VDC

    4 976 Kč
    (4 112 Kč excl. VAT)
    Pulse valves pneumatic G353 G2 1/2"
    Pulse valves pneumatic G353 G2 1/2"
    up to 14 days
    Code: G353-25P

    11 008 Kč
    (9 098 Kč excl. VAT)
    Pulse valves pneumatic G353 G2"
    Pulse valves pneumatic G353 G2"
    up to 14 days
    Code: G353-20P

    9 637 Kč
    (7 964 Kč excl. VAT)
    Pulse valves pneumatic G353 G1 1/2"
    Pulse valves pneumatic G353 G1 1/2"
    up to 14 days
    Code: G353-15P

    3 128 Kč
    (2 585 Kč excl. VAT)
    Pulse valves pneumatic G353 G1"
    Pulse valves pneumatic G353 G1"
    up to 14 days
    Code: G353-10P

    1 586 Kč
    (1 311 Kč excl. VAT)
    Pulse valves pneumatic G353 G3/4"
    Pulse valves pneumatic G353 G3/4"
    up to 14 days
    Code: G353-34P

    1 399 Kč
    (1 156 Kč excl. VAT)
    Pulse valves electric G353 G2 1/2"
    from 12 303 Kč –99 %
    Pulse valves electric G353 G2 1/2"
    up to 14 days
    Code: G353-25-24VDC
    Was: 12 303 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Pulse valves electric G353 G2"
    Pulse valves electric G353 G2"
    up to 14 days
    Code: G353-20-24VDC

    from 11 106 Kč
    (from 9 179 Kč excl. VAT)
    Pulse valves electric G353 G1"
    Pulse valves electric G353 G1"
    Stock
    Code: G353-10-115VAC

    from 3 184 Kč
    (from 2 631 Kč excl. VAT)
    Pulse valves electric G353 G3/4"
    Pulse valves electric G353 G3/4"
    Stock
    Code: G353-34-115VAC

    from 3 003 Kč
    (from 2 482 Kč excl. VAT)
    Show more products
    10 items total
    Pulse valves electric G353 G1"
    Pulse valves electric G353 G1"
    Stock
    from 2 631 Kč excl. VAT
    from 3 184 Kč / pcs
    Detail

    Electrically operated diaphragm pulse valves G353 with G1" thread. Function 2/2 NC, clearance 27 mm, flow Kv 283 l/min. Made of aluminium with NBR sealing for temperatures from...

    Code: G353-10-115VAC
    Pulse valves electric G353 G3/4"
    Pulse valves electric G353 G3/4"
    Stock
    from 2 482 Kč excl. VAT
    from 3 003 Kč / pcs
    Detail

    Electrically operated diaphragm pulse valves G353 with G3/4" thread. Function 2/2 NC, clearance 24 mm, flow Kv 233 l/min. Made of aluminium with NBR sealing for temperatures...

    Code: G353-34-115VAC
    Pulse valves electric G353 G1 1/2"
    Pulse valves electric G353 G1 1/2"
    up to 14 days
    4 112 Kč excl. VAT
    4 976 Kč / pcs
    Detail

    Electrically operated diaphragm pulse valves G353 with G1 1/2" thread. Function 2/2 NC, clearance 52 mm, flow Kv 733 l/min. Made of aluminium with NBR sealing for temperatures...

    Code: G353-15-24VDC
    Pulse valves pneumatic G353 G1"
    Pulse valves pneumatic G353 G1"
    up to 14 days
    1 311 Kč excl. VAT
    1 586 Kč / pcs

    Electrically operated diaphragm pulse valves G353 with G1" thread. Function 2/2 NC, clearance 27 mm, flow Kv 283 l/min. Made of aluminium with NBR sealing for temperatures from...

    Code: G353-10P
    Pulse valves pneumatic G353 G3/4"
    Pulse valves pneumatic G353 G3/4"
    up to 14 days
    1 156 Kč excl. VAT
    1 399 Kč / pcs

    Electrically operated diaphragm pulse valves G353 with G3/4" thread. Function 2/2 NC, clearance 24 mm, flow Kv 233 l/min. Made of aluminium with NBR sealing for temperatures...

    Code: G353-34P
    Pulse valves electric G353 G2 1/2"
    from 12 303 Kč –99 %
    Pulse valves electric G353 G2 1/2"
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs
    Detail

    Electrically operated diaphragm pulse valves G353 with G2 1/2" thread. Function 2/2 NC, clearance 66 mm, flow Kv 1540 l/min. Made of aluminium with NBR sealing for temperatures...

    Code: G353-25-24VDC
    Pulse valves electric G353 G2"
    Pulse valves electric G353 G2"
    up to 14 days
    from 9 179 Kč excl. VAT
    from 11 106 Kč / pcs
    Detail

    Electrically operated diaphragm pulse valves G353 with G2" thread. Function 2/2 NC, clearance 66 mm, flow Kv 1290 l/min. Made of aluminium with NBR sealing for temperatures from...

    Code: G353-20-24VDC
    Pulse valves pneumatic G353 G1 1/2"
    Pulse valves pneumatic G353 G1 1/2"
    up to 14 days
    2 585 Kč excl. VAT
    3 128 Kč / pcs

    Electrically operated diaphragm pulse valves G353 with G1 1/2" thread. Function 2/2 NC, clearance 52 mm, flow Kv 768 l/min. Made of aluminium with NBR sealing for temperatures...

    Code: G353-15P
    Pulse valves pneumatic G353 G2 1/2"
    Pulse valves pneumatic G353 G2 1/2"
    up to 14 days
    9 098 Kč excl. VAT
    11 008 Kč / pcs

    Electrically operated diaphragm pulse valves G353 with G2 1/2" thread. Function 2/2 NC, clearance 66 mm, flow Kv 1540 l/min. Made of aluminium with NBR sealing for temperatures...

    Code: G353-25P
    Pulse valves pneumatic G353 G2"
    Pulse valves pneumatic G353 G2"
    up to 14 days
    7 964 Kč excl. VAT
    9 637 Kč / pcs

    Electrically operated diaphragm pulse valves G353 with G2" thread. Function 2/2 NC, clearance 66 mm, flow Kv 1290 l/min. Made of aluminium with NBR sealing for temperatures from...

    Code: G353-20P
