Pulse valves electric G353 G3/4"

Code: G353-34-115VAC G353-34-230VAC G353-34-24VAC G353-34-24VDC Choose variant
3 052 Kč / pcs 3 052 Kč / pcs 3 190 Kč / pcs 3 190 Kč / pcs from 3 052 Kč / pcs 2 522 Kč excl. VAT 2 522 Kč excl. VAT 2 636 Kč excl. VAT 2 636 Kč excl. VAT from 2 522 Kč excl. VAT
up to 14 days up to 14 days Stock (2 pcs) up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
14.01.2025 14.01.2025 26.12.2024 14.01.2025 Choose variant

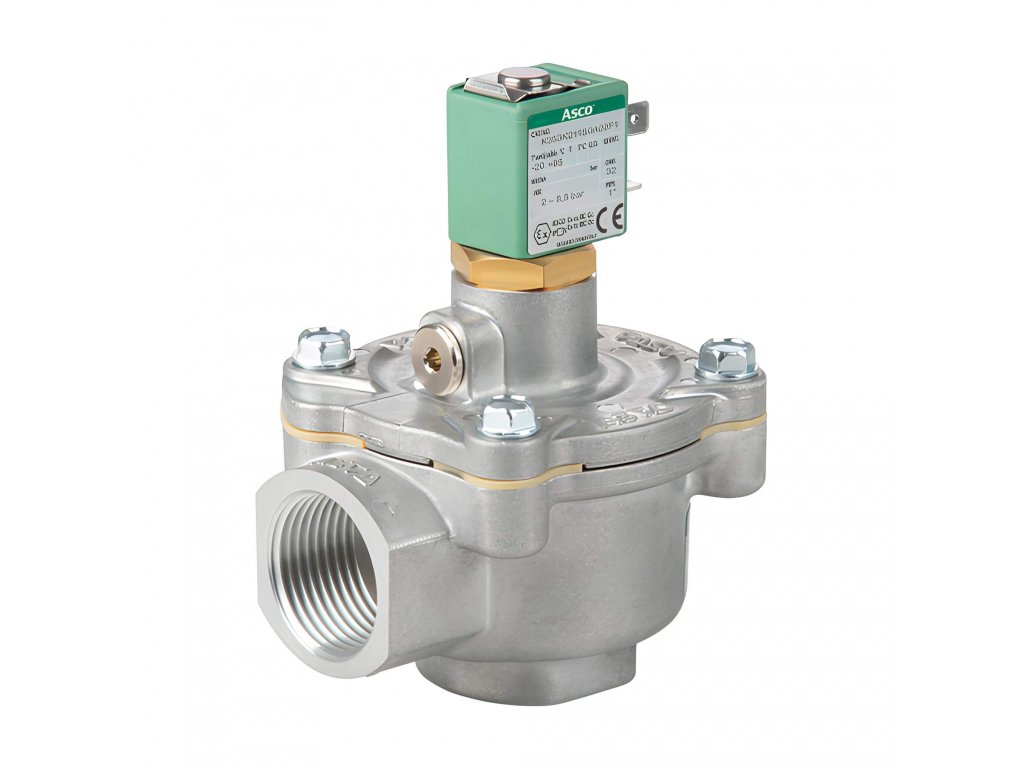

Electrically operated diaphragm pulse valves G353 with G3/4" thread. Function 2/2 NC, clearance 24 mm, flow Kv 233 l/min. Made of aluminium with NBR sealing for temperatures from -20 to +85°C.

Detailed information

Product detailed description

Pulse valves E353 NC 34

  • 2/2 NC function
  • connection thread G3/4"
  • width 24 mm
  • flow rate Kv 233 l/min
  • minimum pressure 0.35 bar
  • temperature -20 to +85°C
  • material aluminum

Additional parameters

Category: Pulse valves G353 diaphragm design
Pressure: 8,5 bar
Coil: 24 V AC, 24 V DC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Aluminium
Medium: Air
Flow: 233 l/min
Brightness DN: 24
Seals: NBR
Thread: G 3/4"
Management: Indirectly controlled
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
