Pulse valves electric G353 G2"

Code: G353-20-115VAC G353-20-230VAC G353-20-24VAC G353-20-24VDC Choose variant
11 535 Kč / pcs 11 106 Kč / pcs 11 106 Kč / pcs 11 106 Kč / pcs from 11 106 Kč / pcs 9 533 Kč excl. VAT 9 179 Kč excl. VAT 9 179 Kč excl. VAT 9 179 Kč excl. VAT from 9 179 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
18.10.2024 18.10.2024 18.10.2024 18.10.2024 Choose variant

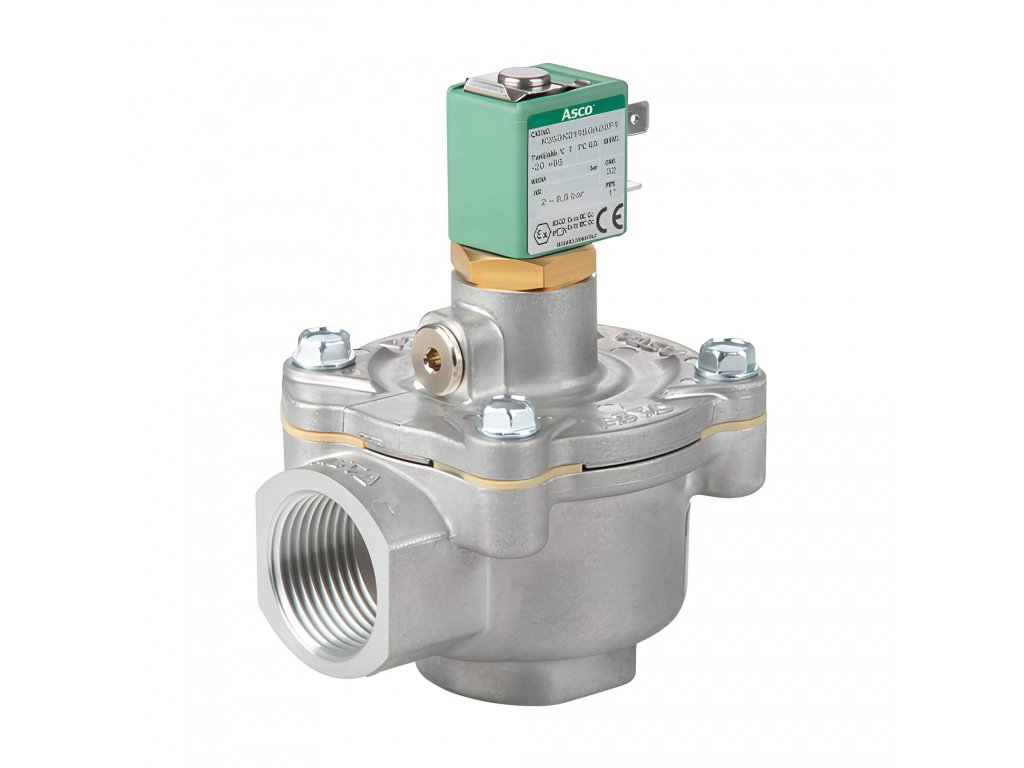

Electrically operated diaphragm pulse valves G353 with G2" thread. Function 2/2 NC, clearance 66 mm, flow Kv 1290 l/min. Made of aluminium with NBR sealing for temperatures from -20 to +85°C.

Detailed information

Product detailed description

Pulse valves G353 NC 20

  • 2/2 NC function
  • connecting thread G2"
  • width 66 mm
  • flow rate Kv 1290 l/min
  • minimum pressure 0.35 bar
  • temperature -20 to +85°C
  • material aluminum

Additional parameters

Category: Pulse valves G353 diaphragm design
Pressure: 8,5 bar
Coil: 24 V AC, 24 V DC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Aluminium
Medium: Air
Flow: 1 290 l/min
Brightness DN: 66
Seals: NBR
Thread: G 2"
Management: Indirectly controlled
Minimální tlak: 0,35 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
