Spring attachment KE G 3/8" 10 mm

Code: KE38-10
1 578 Kč –5 %
Spring attachment KE G 3/8" 10 mm
1 578 Kč –5 % 1 499 Kč / pcs 1 239 Kč excl. VAT
Stock (5 pcs)
Delivery to:
27.11.2024

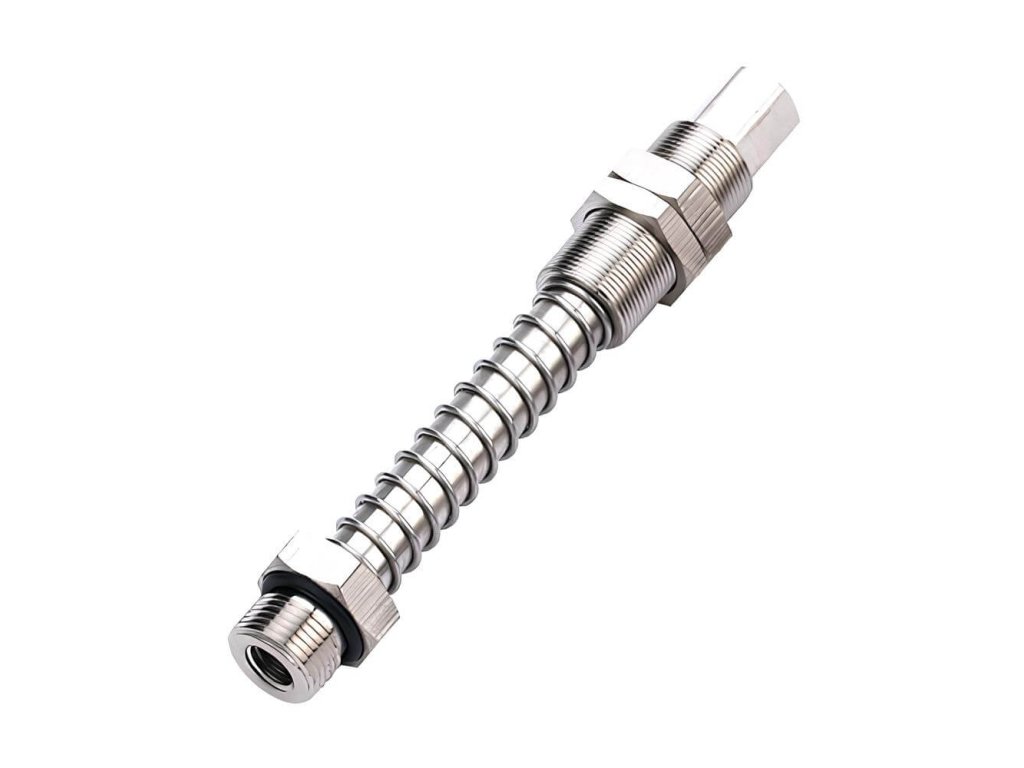

Spring extension with external thread G 3/8" and internal thread G 1/8" and stroke 10 mm. Thread on the component body M18x1. It is used to automatically compensate for height differences when transporting objects with height differences.

Detailed information

Product detailed description

Spring attachment KE38-10

  • used to automatically compensate for height differences during transport
  • applicable to a wide range of suction cup applications with different diameters and strokes

Additional parameters

Category: Spring attachments for vacuum suction cups
Height: 90 mm
Body thread: M18x1
External thread: G 3/8"
Internal thread: G 1/8"
Stroke: 10 mm

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:
airbest-provozovna

Airbest Develops and Innovates

The main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website.

German Quality and Chinese Affordability

The greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed.

Airbest - továrna

The Airbest company program consists of these basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration devices
  • suction cups
  • fittings for suction cups
  • vacuum valves and vacuum switches
