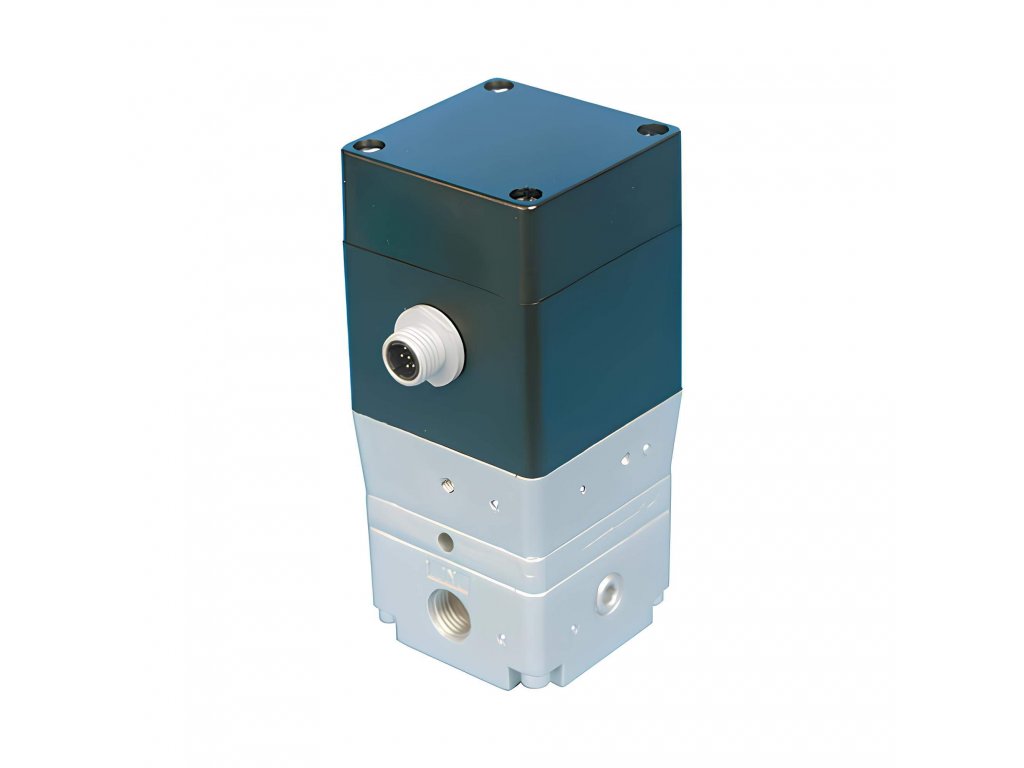

Proportional regulator 1/4" - 4-20mA - 0-4 bar

Code: DRPE14-4A

Not rated

Brand: KNOCKS FLUID Technik

75 600 Kč –5 %

Proportional regulator 1/4" - 4-20mA - 0-4 bar

75 600 Kč –5 % 71 820 Kč / pcs 59 355 Kč excl. VAT

Delivery to: 11.12.2024

You will get for free

+ Manometer rear 0/6 bar - 40 - 1/8" worth 177 Kč

Proportional pressure regulator with flow rate 530 l/min, 0 - 4 bar control, controlled by 4-20 mA electrical signal. Integrated transducer to convert the electrical quantity to the desired output pressure. Linear characteristic with 0.2% deviation, 0.5% output pressure hysteresis. Materials used: body - aluminium, brass, plastic, NBR gasket. Operating temperature -10 to +60 °C, electrical protection IP65. Connection - 4-pole M12 connector.

Detailed information

733 Kč –5 %

Connection cable 5 ms direct connector for DRPE

575 Kč excl. VAT

696 Kč

Connection cable 5 m - with straight connector designed for proportional DRPE controllers. Operating temperature -10 to +60 °C. Electrical protection IP65. Connection - 4-pole...

Code: DRSE-C5

733 Kč –5 %

Connection cable 5 ms with angled connector for DRPE

575 Kč excl. VAT

696 Kč

Connection cable 5 m - with angled connector designed for proportional DRPE controllers. Operating temperature -10 to +60 °C. Electrical protection IP65. Connection - 4-pole M12...

Code: DRSE-CW5

186 Kč –4 %

Manometer rear 0/6 bar - 40 - 1/8"

(66 pcs)

146 Kč excl. VAT

177 Kč

Plastic manometer with diameter 40 mm and rear thread connection G1/8" and range 0/6 bar. Designed for pressure measurements of non-aggressive media with lower demands on the...

Code: MZ01-13

Show all related products

Product detailed description

Proportional regulator for pressure adjustment by electrical signal - DRPE14-4A

proportional controllers are controlled by an electrical signal of 0-10 V or 4-20 mA

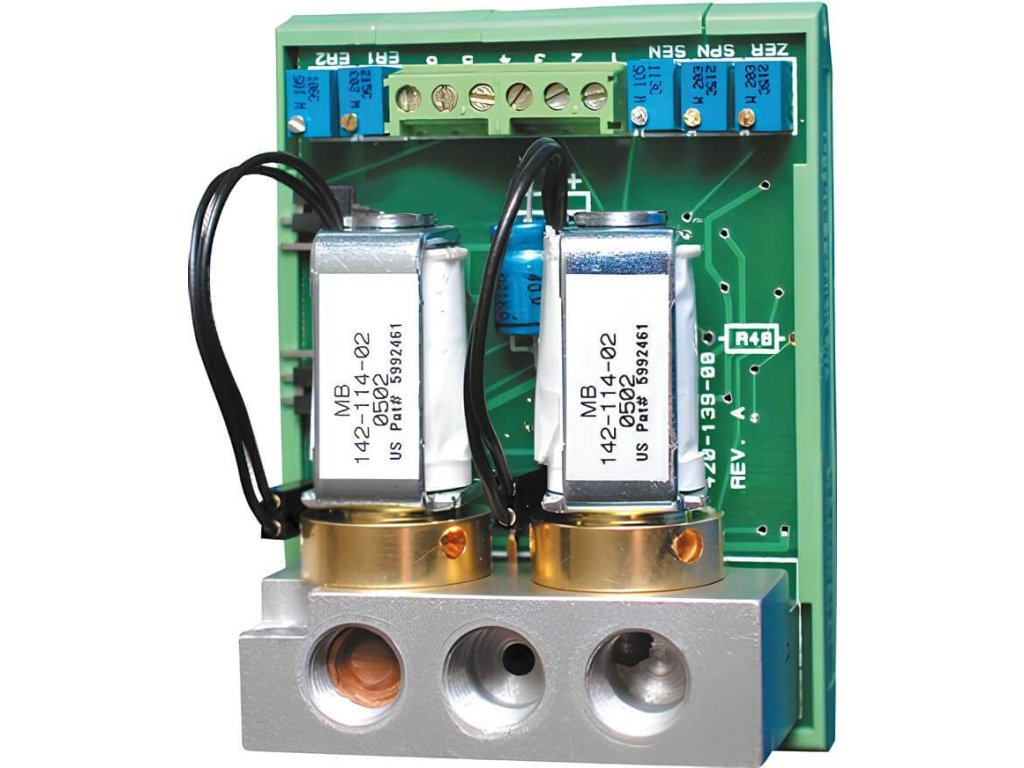

integrated transducer for converting the electrical quantity to the desired output pressure
linear characteristic with 0.2% deviation, 0.5% output pressure hysteresis
materials used: body - aluminium, brass, plastic, NBR gasket
working temperature -10 to +60 °C, electrical protection IP65, connection - 4-pole connector M12
designed as part of electro-pneumatic circuits or for remote pressure control

Proportional controllers for pressure adjustment by electrical signal
Order no.	Control signal	Thread "	Flow l/min	Inlet pressure Bar	Regulation Bar	Thread
Order no.	Control signal	Thread "	Flow l/min	Inlet pressure Bar	Regulation Bar	Manometer
DRPE14-1A	4-20mA	1/4"	530	2	0 to 1	1/8"
DRPE14-4aA	4-20mA	1/4"	530	11	0 to 4	1/8"
DRPE14-6A	4-20mA	1/4"	530	11	0 to 6	1/8"
DRPE14-10A	4-20mA	1/4"	530	13	0 to 10	1/8"
DRPE14-1I	0-10V	1/4"	530	2	0 to 1	1/8"
DRPE14-4I	0-10V	1/4"	530	11	0 to 4	1/8"
DRPE14-6I	0-10V	1/4"	530	11	0 to 6	1/8"
DRPE14-10I	0-10V	1/4"	530	13	0 to 10	1/8"
DRSE-C 5	connection cable 5 m - with direct connector
DRSE-CW5	connecting cable 5 m - with 90° angle connector
*Pressure gauge is included in the delivery of the pressure regulator

Additional parameters

Category:	Proportional DRPE controllers by electrical signal
Pressure:	11 Bar
Max. exit:	0 to 4 bar
Control signal:	4 to 20 mA
Flow:	530 l/min
Thread:	G 1/4"
Connection cable:	DRSE-C5, DRSE-CW5
