    Profiled cylinders CX and CM according to CNOMO

    cx
    • cylinders manufactured according to CNOMO standards 06.07.00
    • diameters 25 - 200 mm
    • cylinder lids are connected by stirrup rods
    • with adjustable end position damping

    Double acting cylinders CX - without magnet, CM - with magnet according to CNOMO
    vdnt vdmnt Diameter
    mm    		 Strokes
    mm    		 Connection
    "    		 Thread
    piston rod    		 Compressive force at 6 bar
    N    		 Damping length
    mm    		 Pressure
    bar    		 Temperature
    °C
    - 25/...CM 25 10 - 2500 1/8" M10 x 1.5 20 21 1-10 -20/+80
    32/...CX 32/...CM 32 10 - 2500 1/8" M10 x 1.5 434 21 1-10 -20/+80
    40/...CX 40/...CM 40 10 - 2500 1/4" M16 x 1.5 679 28 1-10 -20/+80
    50/...CX 50/...CM 50 10 - 2500 1/4" M16 x 1.5 1 060 28 1-10 -20/+80
    63/...CX 63/...CM 63 10 - 2500 3/8" M20 x 1.5 1 680 34 1-10 -20/+80
    80/...CX 80/...CM 80 10 - 2500 3/8" M20 x 1.5 2 710 34 1-10 -20/+80
    100/...CX 100/...CM 100 10 - 2500 1/2" M27 x 2 4 240 38 1-10 -20/+80

    Bestsellers

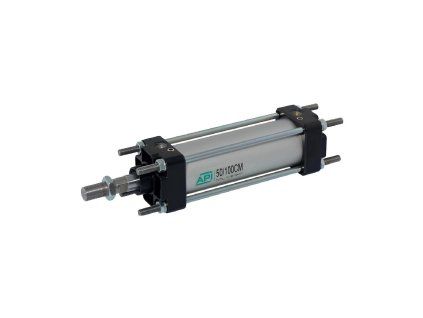

    Double acting cylinders CM 100mm
    from 10 934 Kč up to –5 %
    Double acting cylinders CM 100mm
    up to 14 days
    Code: 100/25CM
    Was: 10 934 Kč  (–5 %)
    from 10 387 Kč
    (from 8 584 Kč excl. VAT)
    Double acting cylinders CM 80mm
    from 7 742 Kč up to –5 %
    Double acting cylinders CM 80mm
    up to 14 days
    Code: 80/25CM
    Was: 7 742 Kč  (–5 %)
    from 7 355 Kč
    (from 6 079 Kč excl. VAT)
    Double acting cylinders CM 63mm
    from 6 034 Kč up to –5 %
    Double acting cylinders CM 63mm
    up to 14 days
    Code: 63/25CM
    Was: 6 034 Kč  (–5 %)
    from 5 732 Kč
    (from 4 737 Kč excl. VAT)
    Double acting cylinders CM 50mm
    from 4 399 Kč up to –5 %
    Double acting cylinders CM 50mm
    up to 14 days
    Code: 50/25CM
    Was: 4 399 Kč  (–5 %)
    from 4 179 Kč
    (from 3 454 Kč excl. VAT)
    Double acting cylinders CM 40mm
    from 3 924 Kč up to –5 %
    Double acting cylinders CM 40mm
    up to 14 days
    Code: 40/25CM
    Was: 3 924 Kč  (–5 %)
    from 3 728 Kč
    (from 3 081 Kč excl. VAT)
    Double acting cylinders CM 32mm
    from 3 101 Kč up to –5 %
    Double acting cylinders CM 32mm
    up to 14 days
    Code: 32/25CM
    Was: 3 101 Kč  (–5 %)
    from 2 946 Kč
    (from 2 435 Kč excl. VAT)
    Double acting cylinders CM 25mm
    from 3 442 Kč up to –5 %
    Double acting cylinders CM 25mm
    up to 14 days
    Code: 25/25CM
    Was: 3 442 Kč  (–5 %)
    from 3 270 Kč
    (from 2 702 Kč excl. VAT)
    Double acting cylinders CX 100mm
    from 10 934 Kč up to –5 %
    Double acting cylinders CX 100mm
    up to 14 days
    Code: 100/25CX
    Was: 10 934 Kč  (–5 %)
    from 10 387 Kč
    (from 8 584 Kč excl. VAT)
    Double acting cylinders CX 80mm
    from 7 742 Kč up to –5 %
    Double acting cylinders CX 80mm
    up to 14 days
    Code: 80/25CX
    Was: 7 742 Kč  (–5 %)
    from 7 355 Kč
    (from 6 079 Kč excl. VAT)
    Double acting cylinders CX 63mm
    from 6 034 Kč up to –5 %
    Double acting cylinders CX 63mm
    up to 14 days
    Code: 63/25CX
    Was: 6 034 Kč  (–5 %)
    from 5 732 Kč
    (from 4 737 Kč excl. VAT)
    Show more products
    13 items total
    Double acting cylinders CM 40mm
    Tip
    from 3 924 Kč up to –5 %
    Double acting cylinders CM 40mm
    up to 14 days
    from 3 081 Kč excl. VAT
    from 3 728 Kč / pcs
    Detail

    Double-acting cylinder CM 40 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 40/25CM
    Double acting cylinders CM 100mm
    Tip
    from 10 934 Kč up to –5 %
    Double acting cylinders CM 100mm
    up to 14 days
    from 8 584 Kč excl. VAT
    from 10 387 Kč / pcs
    Detail

    Double-acting CM cylinder of 100 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by...

    Code: 100/25CM
    Double acting cylinders CM 25mm
    Tip
    from 3 442 Kč up to –5 %
    Double acting cylinders CM 25mm
    up to 14 days
    from 2 702 Kč excl. VAT
    from 3 270 Kč / pcs
    Detail

    Double-acting cylinder CM 25 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 25/25CM
    Double acting cylinders CM 32mm
    Tip
    from 3 101 Kč up to –5 %
    Double acting cylinders CM 32mm
    up to 14 days
    from 2 435 Kč excl. VAT
    from 2 946 Kč / pcs
    Detail

    Double acting cylinder CM 32 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 32/25CM
    Double acting cylinders CM 50mm
    Tip
    from 4 399 Kč up to –5 %
    Double acting cylinders CM 50mm
    up to 14 days
    from 3 454 Kč excl. VAT
    from 4 179 Kč / pcs
    Detail

    Double-acting cylinder CM 50 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 50/25CM
    Double acting cylinders CM 63mm
    Tip
    from 6 034 Kč up to –5 %
    Double acting cylinders CM 63mm
    up to 14 days
    from 4 737 Kč excl. VAT
    from 5 732 Kč / pcs
    Detail

    Double-acting cylinder CM 63 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 63/25CM
    Double acting cylinders CM 80mm
    Tip
    from 7 742 Kč up to –5 %
    Double acting cylinders CM 80mm
    up to 14 days
    from 6 079 Kč excl. VAT
    from 7 355 Kč / pcs
    Detail

    Double-acting cylinder CM 80 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 80/25CM
    Double acting cylinders CX 100mm
    from 10 934 Kč up to –5 %
    Double acting cylinders CX 100mm
    up to 14 days
    from 8 584 Kč excl. VAT
    from 10 387 Kč / pcs
    Detail

    Double-acting cylinder CX 100 mm diameter without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by...

    Code: 100/25CX
    Double acting cylinders CX 32mm
    from 3 101 Kč up to –5 %
    Double acting cylinders CX 32mm
    up to 14 days
    from 2 435 Kč excl. VAT
    from 2 946 Kč / pcs
    Detail

    Double-acting cylinder CX 32 mm diameter without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 32/25CX
    Double acting cylinders CX 40mm
    from 3 924 Kč up to –5 %
    Double acting cylinders CX 40mm
    up to 14 days
    from 3 081 Kč excl. VAT
    from 3 728 Kč / pcs
    Detail

    Double-acting cylinder CX 40 mm diameter without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 40/25CX
    Double acting cylinders CX 63mm
    from 6 034 Kč up to –5 %
    Double acting cylinders CX 63mm
    up to 14 days
    from 4 737 Kč excl. VAT
    from 5 732 Kč / pcs
    Detail

    Double-acting cylinder CX with diameter 63 mm without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by...

    Code: 63/25CX
    Double acting cylinders CX 80mm
    from 7 742 Kč up to –5 %
    Double acting cylinders CX 80mm
    up to 14 days
    from 6 079 Kč excl. VAT
    from 7 355 Kč / pcs
    Detail

    Double-acting cylinder CX with diameter 80 mm without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by...

    Code: 80/25CX
    Double acting cylinders CX 50mm
    from 4 399 Kč up to –5 %
    Double acting cylinders CX 50mm
    up to 14 days
    from 3 454 Kč excl. VAT
    from 4 179 Kč / pcs
    Detail

    Double-acting cylinder CX 50 mm diameter without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup...

    Code: 50/25CX
