    A1E and A1P valve accessories - 1/8"

    Základová deska pro hromadnou instalaci ventilům A1E a A1P
    • Accessories for A1 valves for separate or battery mounting
    • threaded connection 1/8" with flow rate 650 l/min and clearance DN 6.5 mm
    • body and lids made of anodized aluminium, NBR sealing
    • working pressure 1-10 bar, working temperature -10/+60 °C
    • for battery mounting use A1B1 base plates

    Base plates for mounting A1B1
    Ordering
    number    		 Code Number of positions Side thread Základová deska A1B1 pro ventily A1E a A1P
    034041 A1B102 2 1/4"
    034042 A1B103 3 1/4"
    034043 A1B104 4 1/4"
    034044 A1B105 5 1/4"
    034045 A1B106 6 1/4"
    034046 A1B107 7 1/4"
    034047 A1B108 8 1/4"
    034048 A1B109 9 1/4"
    034049 A1B110 10 1/4"
    034050 A1C1 Blanking plate for one position
    034051 A1T1 Channel plug for change to 3/2

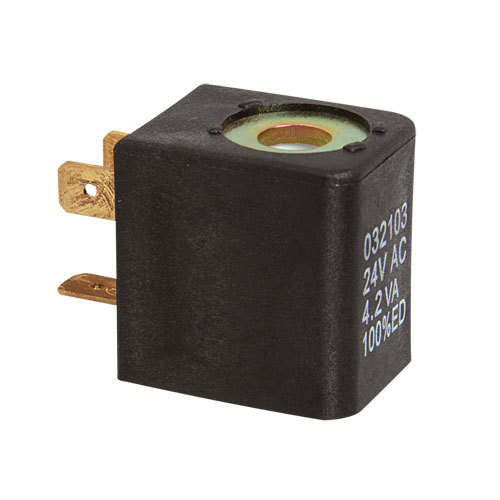

    Coils ASA12 for A1E solenoid valves
    Ordering
    number    		 Code Voltage Power input Reaction time Cívka pro elektromagnetické ventily A1E
    032100 ASA1201200 12 V DC 3 W 10 ms
    032101 ASA1201250 12V AC 4.2 VA 10 ms
    032102 ASA1202400 24 V DC 3 W 10 ms
    032103 ASA1202450 24 V AC 4.2 VA 10 ms
    032104 ASA1204850 48 V AC 4.2 VA 10 ms
    032105 ASA1211050 110 VAC 4.2 VA 10 ms
    032106 ASA1222050 230 V AC 4.2 VA 10 ms

    Connectors for valves with coils ASA12 - A12209
    Ordering
    number    		 Code Version Konektory pro zakrytí kabelů u cívky ventilu
    032118 A12209N standard, black
    033521 A12209NK standard, black, with 2 m cable
    032204 A12209T1 with LED, transparent, 24 V AC-DC
    032205 A12209T2 with LED, transparent, 115 V AC-DC
    032206 A12209T3 with LED, transparent, 230 V AC-DC
    033522 A12209N1K with LED and 2 m cable, black, 24 V AC-DC
    033523 A12209N2K with LED and 2 m cable, black, 115 V AC-DC
    033524 A12209N3K with LED and 2 m cable, black, 230 V AC-DC
