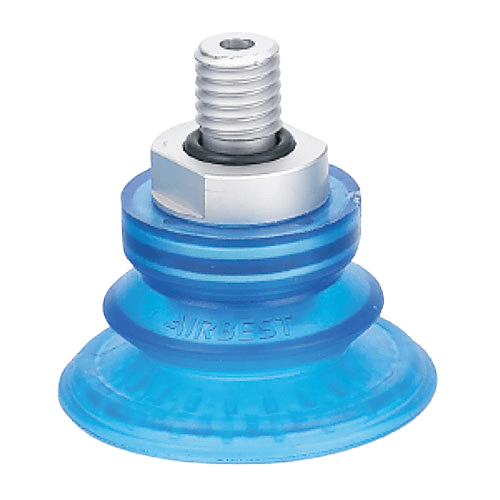

    SBF vacuum suction cups with external thread

    Vakuová přísavka SBF s vnějším závitem
    • designed for handling objects in vertical direction with good lifting force
    • press-fit outer fitting, excellent resistance to ageing
    • material design polyurethane PU
    • applications for stamping and stamping equipment, automation panels, transport of flat objects

    SBF vacuum suction cups with external thread
    Order
    number    		 Average
    mm    		 Thread
    "    		 Height
    mm    		 The diameter of the bellows
    mm    		 Volume
    cm³    		 Vertical Force N
    - 20 kPa - 60 kPa - 90 kPa
    SBF30-PU-14M 32 1/8" 38 32 6 11,0 60,2 91,0
    SBF40-PU-14M 42 1/8" 39 32 7,2 17,5 93,0 119,8
    SBF50-PU-14M 51,5 1/4" 47 40 11 25,0 128,5 157,8
    SBF60-PU-14M 64 1/4" 51,5 50 22 87,3 156,2 189,2
    SBF80-PU-14M 84 1/4" 59,5 68 59,5 118,6 210,5 252,6
    SBF100-PU-14M 103 1/4" 65 83 103,5 149,0 269,5 310,4

    Bestsellers

    Suction cup SBF 100 mm G1/4"
    1 118 Kč –99 %
    Suction cup SBF 100 mm G1/4"
    up to 14 days
    Code: SBF100-PU-14M
    Was: 1 118 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Suction cup SBF 84 mm G1/4"
    900 Kč –99 %
    Suction cup SBF 84 mm G1/4"
    up to 14 days
    Code: SBF80-PU-14M
    Was: 900 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Suction cup SBF 64 mm G1/4"
    860 Kč –99 %
    Suction cup SBF 64 mm G1/4"
    up to 14 days
    Code: SBF60-PU-14M
    Was: 860 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Suction cup SBF 51.5 mm G1/4"
    745 Kč –99 %
    Suction cup SBF 51.5 mm G1/4"
    Stock (10 pcs)
    Code: SBF50-PU-14M
    Was: 745 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Suction cup SBF 42 mm G1/4"
    652 Kč –99 %
    Suction cup SBF 42 mm G1/4"
    Stock (8 pcs)
    Code: SBF40-PU-14M
    Was: 652 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Suction cup SBF 32 mm G1/4"
    621 Kč –99 %
    Suction cup SBF 32 mm G1/4"
    Stock (10 pcs)
    Code: SBF30-PU-14M
    Was: 621 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Show more products
    6 items total
    Suction cup SBF 51.5 mm G1/4"
    745 Kč –99 %
    Suction cup SBF 51.5 mm G1/4"
    Stock (10 pcs)
    1 Kč excl. VAT
    1 Kč / pcs

    Suction cup SBF with diameter 51,5 mm and external thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....

    Code: SBF50-PU-14M
    Suction cup SBF 42 mm G1/4"
    652 Kč –99 %
    Suction cup SBF 42 mm G1/4"
    Stock (8 pcs)
    1 Kč excl. VAT
    1 Kč / pcs

    Suction cup SBF with diameter 42 mm and external thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...

    Code: SBF40-PU-14M
    Suction cup SBF 32 mm G1/4"
    621 Kč –99 %
    Suction cup SBF 32 mm G1/4"
    Stock (10 pcs)
    1 Kč excl. VAT
    1 Kč / pcs

    Suction cup SBF with diameter 32 mm and external thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...

    Code: SBF30-PU-14M
    Suction cup SBF 100 mm G1/4"
    1 118 Kč –99 %
    Suction cup SBF 100 mm G1/4"
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Suction cup SBF with diameter 100 mm and external thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....

    Code: SBF100-PU-14M
    Suction cup SBF 64 mm G1/4"
    860 Kč –99 %
    Suction cup SBF 64 mm G1/4"
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Suction cup SBF with diameter 64 mm and external thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...

    Code: SBF60-PU-14M
    Suction cup SBF 84 mm G1/4"
    900 Kč –99 %
    Suction cup SBF 84 mm G1/4"
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Suction cup SBF with diameter 84 mm and external thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...

    Code: SBF80-PU-14M
