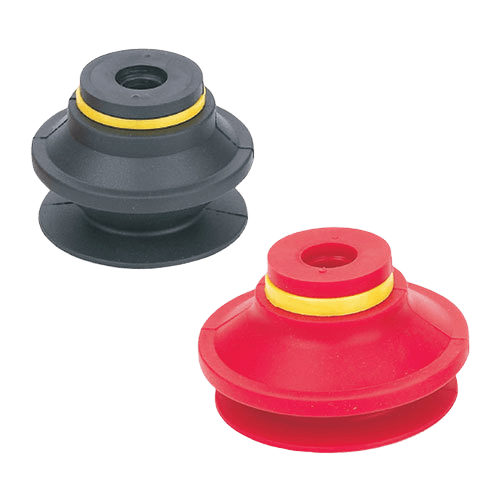

    Suction cups for vacuum SB with 1,5 bellows

    Přísavka pro vakuum SB
    • designed for handling objects with height differentiation
    • also suitable for handling curved surfaces and for separating thin material plates
    • material design nitrile (NBR) and silicone
    • applications for handling veneer, steel plates, electronic components, cardboard

    Vacuum suction cups SB with 1,5 bellows
    Ordering
    number    		 Average
    mm    		 The diameter of the bellows
    mm    		 Height
    mm    		 Mounting holes
    mm    		 Volume
    cm³    		 Vertical Force N
    NBR silicone - 20 kPa - 60 kPa - 90 kPa
    SB5N SB5S 5,8 6,2 9,2 --- 0,05 0,3 0,8 1,0
    SB6N SB6S 7 9 13,5 --- 0,09 0,5 1,1 1,3
    SB8N SB8S 8,8 9,6 11,9 --- 0,15 0,8 1,7 2,4
    SB10N SB10S 11 12 16 --- 0,48 1,7 3,5 5,1
    SB12N SB12S 12 14 16,5 --- 0,59 2,2 4,2 7,2
    SB15N SB15S 15,5 17,5 19,5 --- 1,1 3,3 6,0 8,9
    SB17N SB17S 18,5 16,6 15,6 --- 1,5 3,9 7,8 9,7
    SB20N SB20S 22 24 19 --- 2,7 5,8 10,6 15,0
    SB30N SB30S 34 36 26 --- 10 13,0 25,0 28,0
    SB40N SB40S 43 46 28 --- 15 22,5 42,0 50,2
    SB50N SB50S 53 58 35 --- 32 34,0 65,0 83,0
    SB75N SB75S 78 83 37 4x6.5 110 74,0 166,4 226,0
    SB110N SB110S 115 124 54 8x6 310 136,5 343,0 460,5
    SB150N SB150S 155 166 71 8x6 650 295,0 686,0 883,0

    Bestsellers

    Suction cup SB 53 mm NBR
    297 Kč –5 %
    Suction cup SB 53 mm NBR
    Stock (25 pcs)
    Code: SB50N
    Was: 297 Kč  (–5 %)
    282 Kč
    (233 Kč excl. VAT)
    Suction cup SB 155 mm silicone
    3 627 Kč –4 %
    Suction cup SB 155 mm silicone
    up to 14 days
    Code: SB150S
    Was: 3 627 Kč  (–4 %)
    3 446 Kč
    (2 848 Kč excl. VAT)
    Suction cup SB 115 mm silicone
    2 333 Kč –5 %
    Suction cup SB 115 mm silicone
    up to 14 days
    Code: SB110S
    Was: 2 333 Kč  (–5 %)
    2 216 Kč
    (1 831 Kč excl. VAT)
    Suction cup SB 75 mm silicone
    1 640 Kč –5 %
    Suction cup SB 75 mm silicone
    up to 14 days
    Code: SB75S
    Was: 1 640 Kč  (–5 %)
    1 558 Kč
    (1 288 Kč excl. VAT)
    Suction cup SB 53 mm silicone
    578 Kč –5 %
    Suction cup SB 53 mm silicone
    Stock (30 pcs)
    Code: SB50S
    Was: 578 Kč  (–5 %)
    549 Kč
    (454 Kč excl. VAT)
    Suction cup SB 43 mm silicone
    454 Kč –4 %
    Suction cup SB 43 mm silicone
    Stock (28 pcs)
    Code: SB40S
    Was: 454 Kč  (–4 %)
    432 Kč
    (357 Kč excl. VAT)
    Suction cup SB 34 mm silicone
    379 Kč –5 %
    Suction cup SB 34 mm silicone
    Stock (11 pcs)
    Code: SB30S
    Was: 379 Kč  (–5 %)
    360 Kč
    (298 Kč excl. VAT)
    Suction cup SB 22 mm silicone
    286 Kč –4 %
    Suction cup SB 22 mm silicone
    Stock (73 pcs)
    Code: SB20S
    Was: 286 Kč  (–4 %)
    272 Kč
    (225 Kč excl. VAT)
    Suction cup SB 18.5 mm silicone
    236 Kč –5 %
    Suction cup SB 18.5 mm silicone
    Stock (40 pcs)
    Code: SB17S
    Was: 236 Kč  (–5 %)
    224 Kč
    (185 Kč excl. VAT)
    Suction cup SB 15.5 mm silicone
    255 Kč –4 %
    Suction cup SB 15.5 mm silicone
    Stock (24 pcs)
    Code: SB15S
    Was: 255 Kč  (–4 %)
    243 Kč
    (201 Kč excl. VAT)
    Show more products
    28 items total
    Suction cup SB 8.8 mm NBR
    106 Kč –5 %
    Suction cup SB 8.8 mm NBR
    Stock (34 pcs)
    83 Kč excl. VAT
    100 Kč / pcs

    Suction cup SB 8,8 mm diameter with 1,5 bellows 9,6 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB8N
    Suction cup SB 11 mm NBR
    106 Kč –5 %
    Suction cup SB 11 mm NBR
    Stock (97 pcs)
    83 Kč excl. VAT
    100 Kč / pcs

    Suction cup SB 11 mm diameter with 1.5 bellows 12 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB10N
    Suction cup SB 22 mm NBR
    139 Kč –5 %
    Suction cup SB 22 mm NBR
    Stock (68 pcs)
    109 Kč excl. VAT
    132 Kč / pcs

    Suction cup SB 22 mm diameter with 1.5 bellows 24 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB20N
    Suction cup SB 15.5 mm NBR
    147 Kč –4 %
    Suction cup SB 15.5 mm NBR
    Stock (45 pcs)
    116 Kč excl. VAT
    140 Kč / pcs

    Suction cup SB 15,5 mm diameter with 1,5 bellows 17,5 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB15N
    Suction cup SB 18.5 mm NBR
    118 Kč –5 %
    Suction cup SB 18.5 mm NBR
    Stock (120 pcs)
    93 Kč excl. VAT
    112 Kč / pcs

    Suction cup SB 18,5 mm diameter with 1,5 bellows 16,6 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB17N
    Suction cup SB 22 mm silicone
    286 Kč –4 %
    Suction cup SB 22 mm silicone
    Stock (73 pcs)
    225 Kč excl. VAT
    272 Kč / pcs

    Suction cup SB 22 mm diameter with 1.5 bellows 24 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB20S
    Suction cup SB 12 mm silicone
    324 Kč –4 %
    Suction cup SB 12 mm silicone
    Stock (31 pcs)
    255 Kč excl. VAT
    308 Kč / pcs

    Suction cup SB 12 mm diameter with 1.5 bellows 14 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB12S
    Suction cup SB 18.5 mm silicone
    236 Kč –5 %
    Suction cup SB 18.5 mm silicone
    Stock (40 pcs)
    185 Kč excl. VAT
    224 Kč / pcs

    Suction cup SB 18,5 mm diameter with 1,5 bellows 16,6 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB17S
    Suction cup SB 43 mm NBR
    236 Kč –5 %
    Suction cup SB 43 mm NBR
    Stock (56 pcs)
    185 Kč excl. VAT
    224 Kč / pcs

    Suction cup SB 43 mm diameter with 1.5 bellows 46 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB40N
    Suction cup SB 34 mm silicone
    379 Kč –5 %
    Suction cup SB 34 mm silicone
    Stock (11 pcs)
    298 Kč excl. VAT
    360 Kč / pcs

    Suction cup SB 34 mm diameter with 1.5 bellows 36 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB30S
    Suction cup SB 11 mm silicone
    254 Kč –5 %
    Suction cup SB 11 mm silicone
    Stock (45 pcs)
    199 Kč excl. VAT
    241 Kč / pcs

    Suction cup SB 11 mm diameter with 1.5 bellows 12 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB10S
    Suction cup SB 12 mm NBR
    176 Kč –5 %
    Suction cup SB 12 mm NBR
    Stock (72 pcs)
    138 Kč excl. VAT
    167 Kč / pcs

    Suction cup SB 12 mm diameter with 1.5 bellows 14 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB12N
    Suction cup SB 15.5 mm silicone
    255 Kč –4 %
    Suction cup SB 15.5 mm silicone
    Stock (24 pcs)
    201 Kč excl. VAT
    243 Kč / pcs

    Suction cup SB 15,5 mm diameter with 1,5 bellows 17,5 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB15S
    Suction cup SB 34 mm NBR
    179 Kč –5 %
    Suction cup SB 34 mm NBR
    Stock (35 pcs)
    140 Kč excl. VAT
    170 Kč / pcs

    Suction cup SB 34 mm diameter with 1.5 bellows 36 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB30N
    Suction cup SB 43 mm silicone
    454 Kč –4 %
    Suction cup SB 43 mm silicone
    Stock (28 pcs)
    357 Kč excl. VAT
    432 Kč / pcs

    Suction cup SB 43 mm diameter with 1.5 bellows 46 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB40S
    Suction cup SB 5.8 mm silicone
    174 Kč –4 %
    Suction cup SB 5.8 mm silicone
    Stock (23 pcs)
    137 Kč excl. VAT
    166 Kč / pcs

    Suction cup SB 5,8 mm diameter with 1,5 bellows 6,2 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB5S
    Suction cup SB 53 mm NBR
    297 Kč –5 %
    Suction cup SB 53 mm NBR
    Stock (25 pcs)
    233 Kč excl. VAT
    282 Kč / pcs

    Suction cup SB 53 mm diameter with 1.5 bellows 58 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB50N
    Suction cup SB 53 mm silicone
    578 Kč –5 %
    Suction cup SB 53 mm silicone
    Stock (30 pcs)
    454 Kč excl. VAT
    549 Kč / pcs

    Suction cup SB 53 mm diameter with 1.5 bellows 58 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB50S
    Suction cup SB 7 mm silicone
    300 Kč –5 %
    Suction cup SB 7 mm silicone
    Stock (18 pcs)
    236 Kč excl. VAT
    285 Kč / pcs

    Suction cup SB 7 mm diameter with 1.5 bellows 9 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB6S
    Suction cup SB 8.8 mm silicone
    199 Kč –5 %
    Suction cup SB 8.8 mm silicone
    Stock (34 pcs)
    156 Kč excl. VAT
    189 Kč / pcs

    Suction cup SB 8,8 mm diameter with 1,5 bellows 9,6 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB8S
    Suction cup SB 115 mm NBR
    1 765 Kč –4 %
    Suction cup SB 115 mm NBR
    up to 14 days
    1 386 Kč excl. VAT
    1 677 Kč / pcs

    Suction cup SB 115 mm diameter with 1.5 bellows 124 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB110N
    Suction cup SB 115 mm silicone
    2 333 Kč –5 %
    Suction cup SB 115 mm silicone
    up to 14 days
    1 831 Kč excl. VAT
    2 216 Kč / pcs

    Suction cup SB 115 mm diameter with 1.5 bellows 124 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB110S
    Suction cup SB 155 mm NBR
    2 680 Kč –5 %
    Suction cup SB 155 mm NBR
    up to 14 days
    2 104 Kč excl. VAT
    2 546 Kč / pcs

    Suction cup SB 155 mm diameter with 1.5 bellows 166 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB150N
    Suction cup SB 155 mm silicone
    3 627 Kč –4 %
    Suction cup SB 155 mm silicone
    up to 14 days
    2 848 Kč excl. VAT
    3 446 Kč / pcs

    Suction cup SB 155 mm diameter with 1.5 bellows 166 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB150S
    Suction cup SB 5.8 mm NBR
    93 Kč –4 %
    Suction cup SB 5.8 mm NBR
    up to 14 days
    74 Kč excl. VAT
    89 Kč / pcs

    Suction cup SB 5,8 mm diameter with 1,5 bellows 6,2 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB5N
    Suction cup SB 7 mm NBR
    167 Kč –5 %
    Suction cup SB 7 mm NBR
    up to 14 days
    131 Kč excl. VAT
    158 Kč / pcs

    Suction cup SB 7 mm diameter with 1.5 bellows 9 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers, electronic...

    Code: SB6N
    Suction cup SB 75 mm NBR
    1 135 Kč –5 %
    Suction cup SB 75 mm NBR
    up to 14 days
    891 Kč excl. VAT
    1 078 Kč / pcs

    Suction cup SB 75 mm diameter with 1.5 bellows 83 mm diameter. Made of 55°Sh nitrile. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB75N
    Suction cup SB 75 mm silicone
    1 640 Kč –5 %
    Suction cup SB 75 mm silicone
    up to 14 days
    1 288 Kč excl. VAT
    1 558 Kč / pcs

    Suction cup SB 75 mm diameter with 1.5 bellows 83 mm diameter. Made of 50°Sh silicone. Designed for transport with objects with height differentiation such as veneers,...

    Code: SB75S
