Suction cup SF 77 mm silicone

Code: SF75S
693 Kč –5 %
Suction cup SF 77 mm silicone
693 Kč –5 % 658 Kč / pcs 544 Kč excl. VAT
Stock (59 pcs)
Delivery to:
25.12.2024
Suction cup SF with diameter 77 mm in flat design. Made of 50°Sh silicone. Designed for the transport of flat objects where a parallel force to the surface of the object being transported is present. Use for transporting glass, plastic sheets, plywood.

Detailed information

Product detailed description

Suction cup SF75S

  • designed for the transport of flat objects that are loaded by pernamental force
  • material design silicone
  • applications for handling plywood, glass, electronic equipment, plastic or steel plates

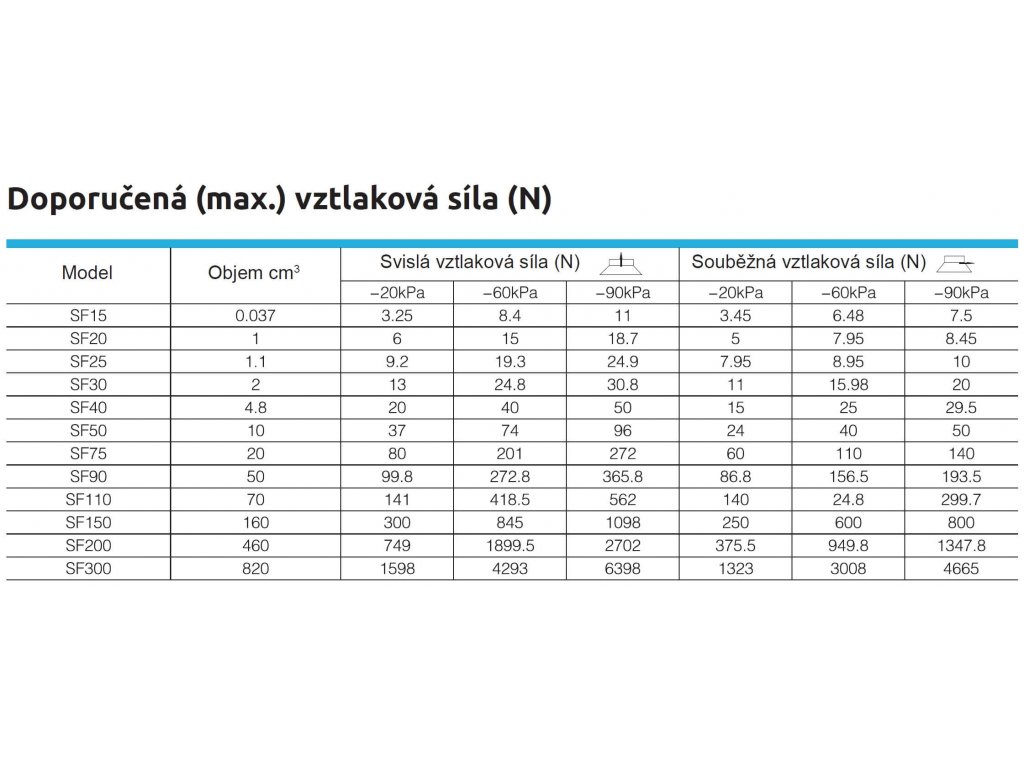

Additional parameters

Category: Suction cups SF for vacuum reinforced design
Material: Silicone
Mounting holes: 4 x 6.5
Volume: 20 cm3
Average: 77 mm
Vertical force at -20kPa: 80 N
Vertical force at -60kPa: 201 N
Vertical force at -90kPa: 272 N
Height: 13 mm

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:
airbest-provozovna

Airbest Develops and Innovates

The main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website.

German Quality and Chinese Affordability

The greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed.

Airbest - továrna

The Airbest company program consists of these basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration devices
  • suction cups
  • fittings for suction cups
  • vacuum valves and vacuum switches
