Suction cup SF 32 mm NBR

Code: SF30N
140 Kč –5 %
Suction cup SF 32 mm NBR
140 Kč –5 % 133 Kč / pcs 110 Kč excl. VAT
Stock (75 pcs)
Delivery to:
20.11.2024

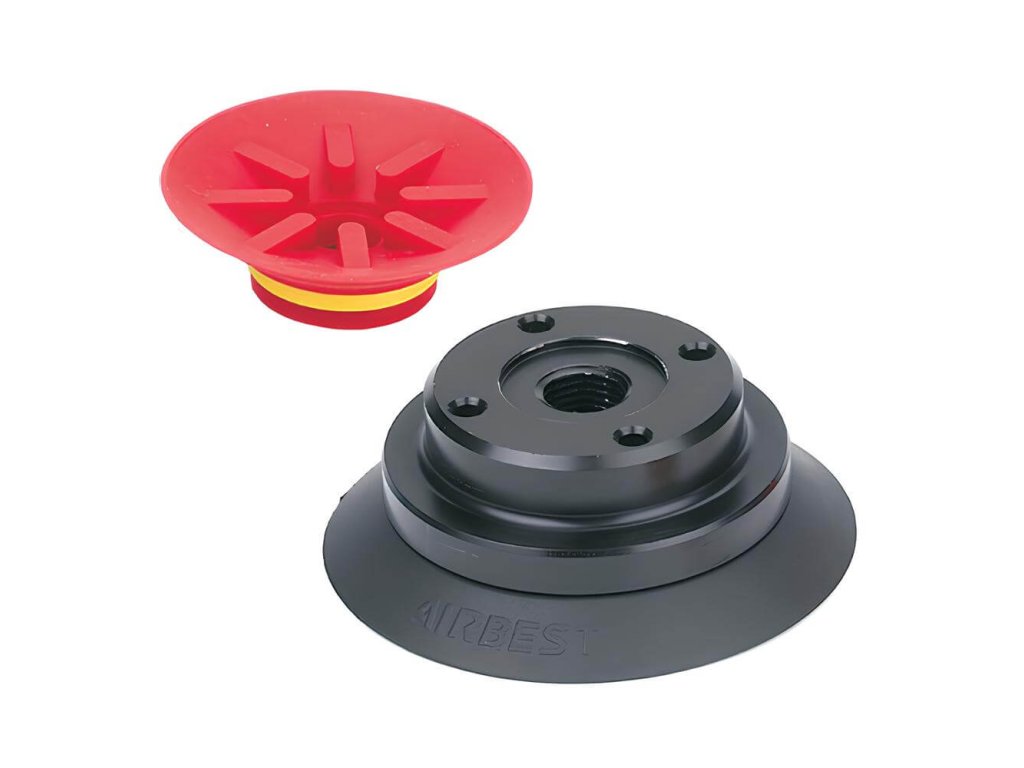

Suction cup SF with a diameter of 32 mm in flat design. Made of 55°Sh nitrile. Designed for the transport of flat objects where a parallel force to the surface of the object being transported is present. Use for transporting glass, plastic sheets, plywood.

Detailed information

Product detailed description

Suction cup SF30N

  • designed for the transport of flat objects that are loaded by pernamental force
  • material design nitrile (NBR)
  • applications for handling plywood, glass, electronic equipment, plastic or steel plates

Additional parameters

Category: Suction cups SF for vacuum reinforced design
Material: NBR
Volume: 2 cm3
Average: 32 mm
Vertical force at -20kPa: 13 N
Vertical force at -60kPa: 24.8N
Vertical force at -90kPa: 30.8N
Height: 10 mm
