Suction cup SBF 100 mm G1/4"

Code: SBF100-PU-14M
1 118 Kč –99 %
Suction cup SBF 100 mm G1/4"
1 118 Kč –99 % 1 Kč / pcs 1 Kč excl. VAT 50 Kč / 50 pcs
up to 14 days
Delivery to:
10.12.2024
Suction cup SBF with diameter 100 mm and external thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications for stamping and stamping machines, flat steel sheets, automotive panels.

Detailed information

Product detailed description

Suction cup SBF100-PU-14M

  • designed for handling objects in vertical direction with good lifting force
  • press-fit outer fitting, excellent resistance to ageing
  • material design polyurethane PU
  • applications for stamping and stamping equipment, automative panels, transport of flat objects

Additional parameters

Category: SBF vacuum suction cups with external thread
Material: Polyurethane
Volume: 103.5 cm3
Average: 100 mm
The diameter of the bellows: 83 mm

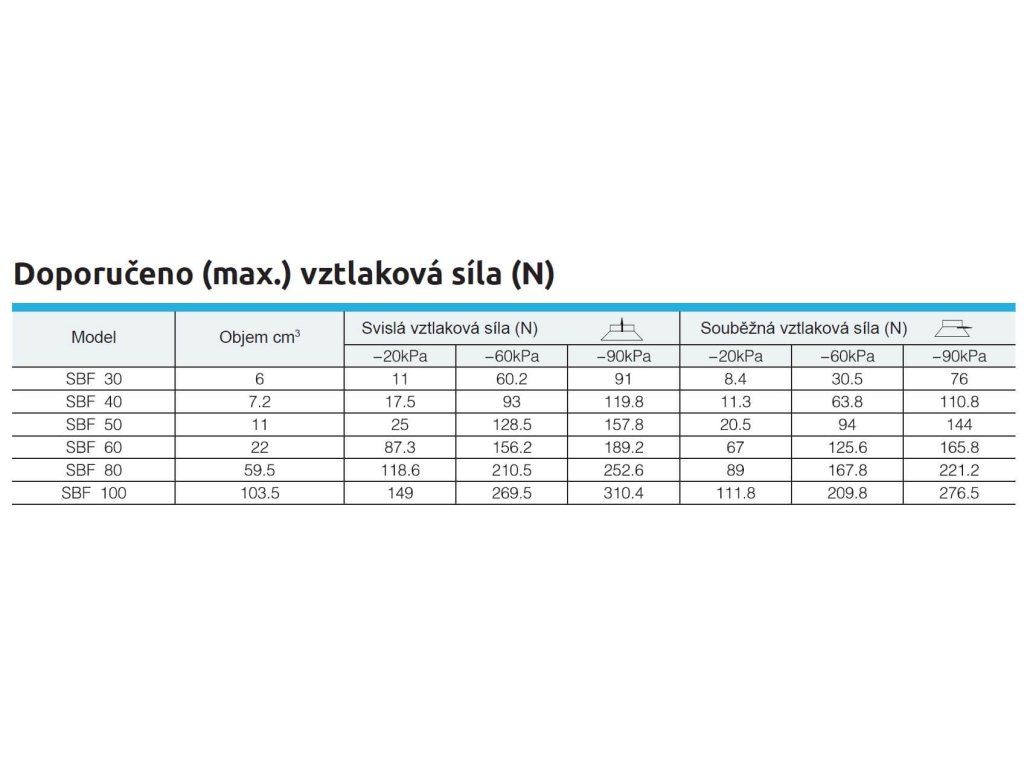

Vertical force at -20kPa: 149.0N
Vertical force at -60kPa: 269.5N
Vertical force at -90kPa: 310.4N
Height: 65 mm
Thread: G 1/4"

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:
airbest-provozovna

Airbest Develops and Innovates

The main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website.

German Quality and Chinese Affordability

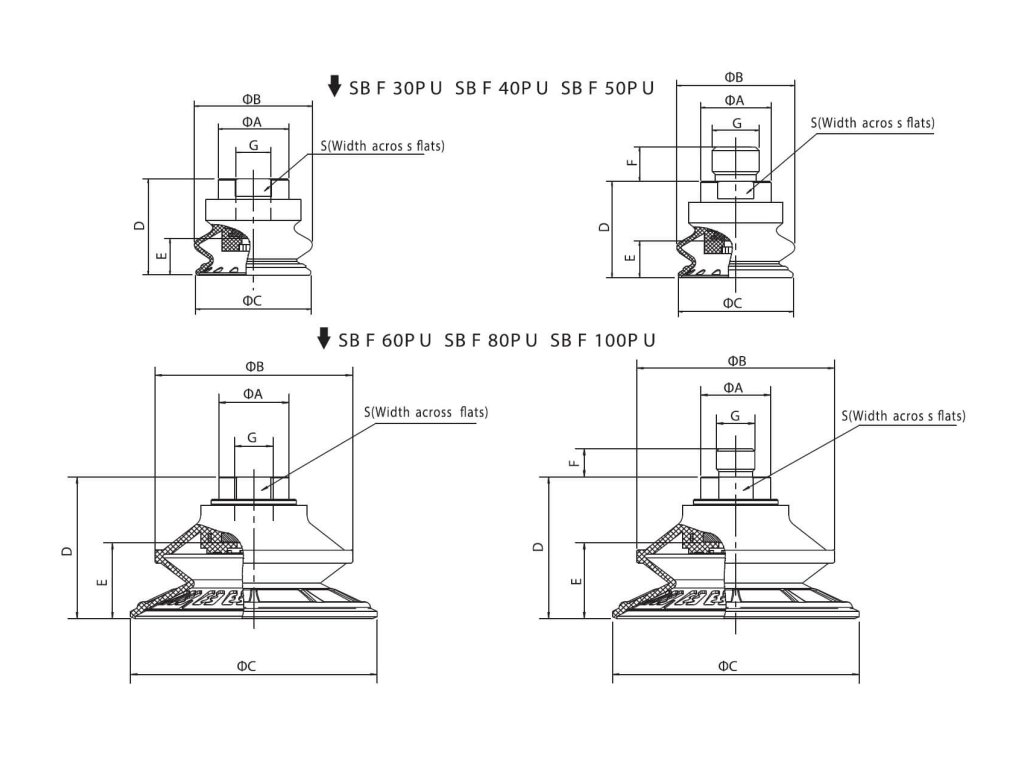

The greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed.

Airbest - továrna

The Airbest company program consists of these basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration devices
  • suction cups
  • fittings for suction cups
  • vacuum valves and vacuum switches
