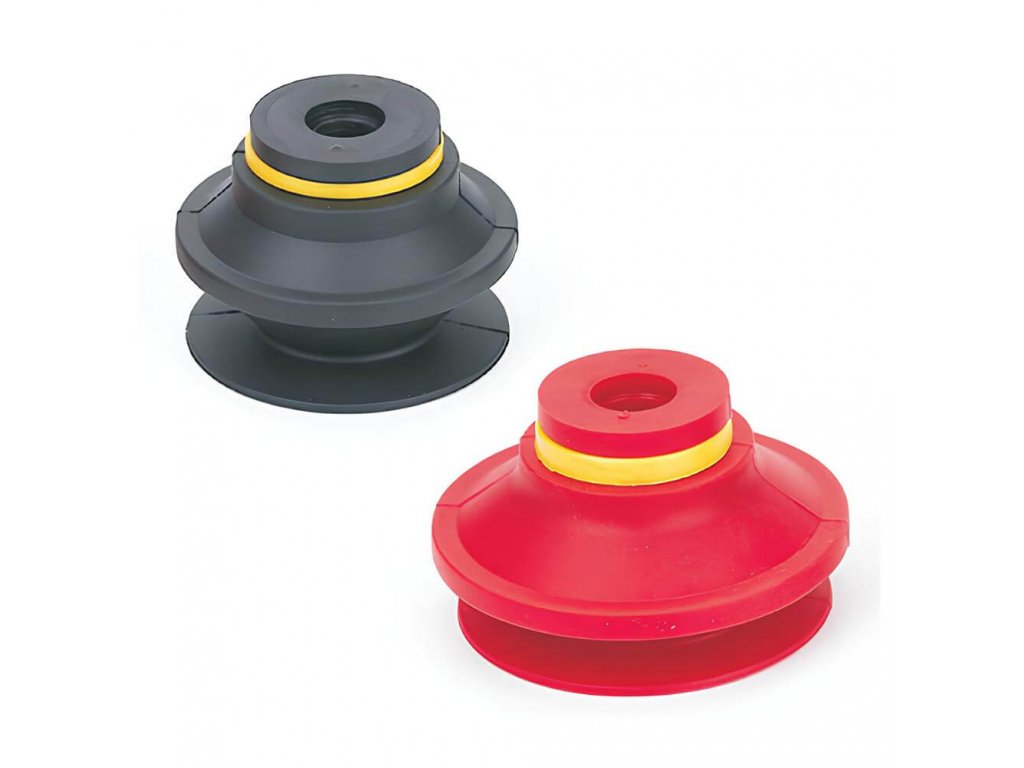

Suction cup SB 43 mm NBR
Code: SB40NProduct detailed description
Suction cup SB40N
- designed for handling objects with height differentiation
- also useful for handling curved surfaces and for separating thin material plates
- material design nitrile (NBR)
- applications for handling veneer, steel plates, electronic components, cardboard
Additional parameters
Category: | Suction cups for vacuum SB with 1,5 bellows |
---|---|
Material: | nitrile (NBR) |
Volume: | 15 cm3 |
Average: | 43 mm |
The diameter of the bellows: | 46 mm |
Vertical force at -20kPa: | 22.5N |
Vertical force at -60kPa: | 42.0N |
Vertical force at -90kPa: | 50.2N |
Height: | 28 mm |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Airbest Develops and InnovatesThe main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website. |
German Quality and Chinese AffordabilityThe greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed. |
The Airbest company program consists of these basic product groups:
- ejectors and vacuum pumps
- vacuum filtration devices
- suction cups
- fittings for suction cups
- vacuum valves and vacuum switches
