    Home / Fasteners / Plastic socket couplings; socket blue / Straight coupling; internal thread G / Direct fitting internal 6 - G3/8"

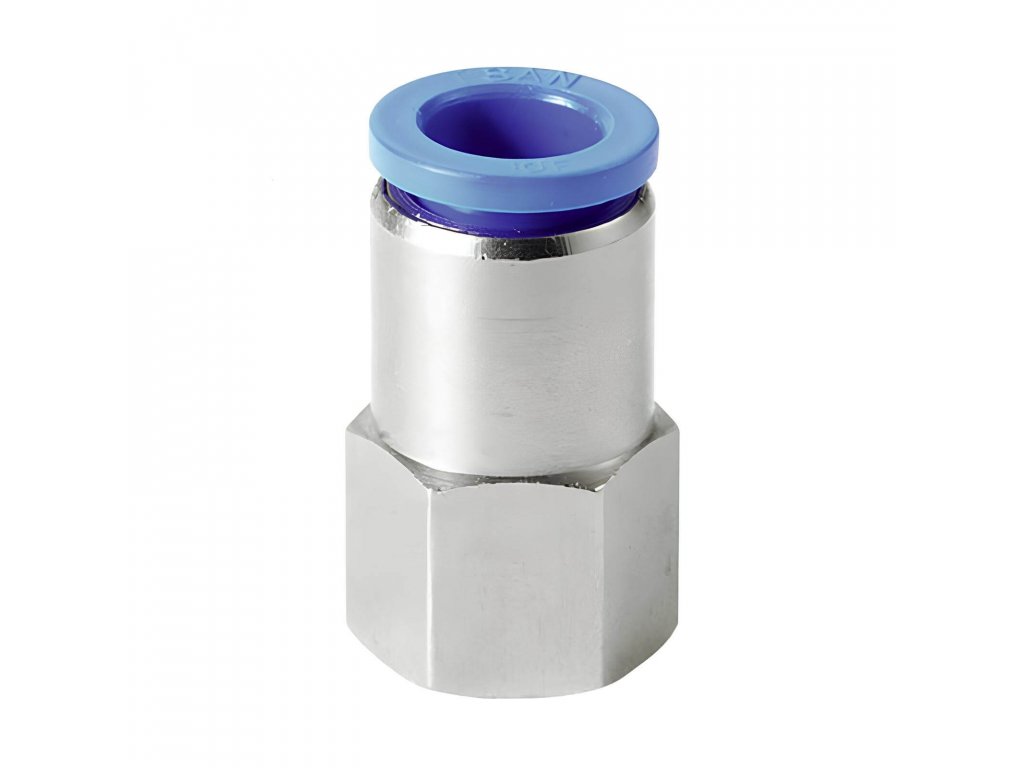

    Direct fitting internal 6 - G3/8"

    Code: PCF-386
    Tip
    Not rated
    128 Kč –10 %
    Direct fitting internal 6 - G3/8"
    128 Kč –10 % 115 Kč / pcs 95 Kč excl. VAT
    Stock (640 pcs)
    Delivery to:
    25.12.2024

    Socket coupling in straight plastic design with 3/8" female pipe thread. Quick and easy installation of plastic tubing with 6 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum working pressure of the medium 10 bar with a temperature range of -10/60°C.

    Detailed information

    Related products

    Black polyurethane hose 6/4 mm
    Tip
    33 Kč –12 %
    Black polyurethane hose 6/4 mm
    Stock (>1000 m)
    24 Kč excl. VAT
    29 Kč

    PUJ polyurethane tubing in black 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ64S
    Polyurethane tube red 6/4 mm
    Tip
    33 Kč –12 %
    Polyurethane tube red 6/4 mm
    Stock (970 m)
    24 Kč excl. VAT
    29 Kč

    PUJ polyurethane tubing in red 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ64R
    Clear polyurethane tubing 6 / 4 mm
    Tip
    33 Kč –12 %
    Clear polyurethane tubing 6 / 4 mm
    Stock (>1000 m)
    24 Kč excl. VAT
    29 Kč

    Polyurethane PUJ tubing in neutral transparent 6/4 mm design, particularly suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone,...

    Code: PUJ64N
    Polyurethane tube blue 6/4 mm
    Tip
    33 Kč –12 %
    Polyurethane tube blue 6/4 mm
    Stock (>1000 m)
    24 Kč excl. VAT
    29 Kč

    Polyurethane PUJ tubing in blue 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ64B
    Polyurethane tube green 6/4 mm
    Tip
    33 Kč –12 %
    Polyurethane tube green 6/4 mm
    Stock (>1000 m)
    24 Kč excl. VAT
    29 Kč

    PUJ polyurethane tubing in green 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ64G
    Yellow polyurethane tube 6/4 mm
    Tip
    33 Kč –12 %
    Yellow polyurethane tube 6/4 mm
    Stock (672 m)
    24 Kč excl. VAT
    29 Kč

    Polyurethane PUJ tubing in yellow 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ64Y
    Show all related products Previous product Next product

    Product detailed description

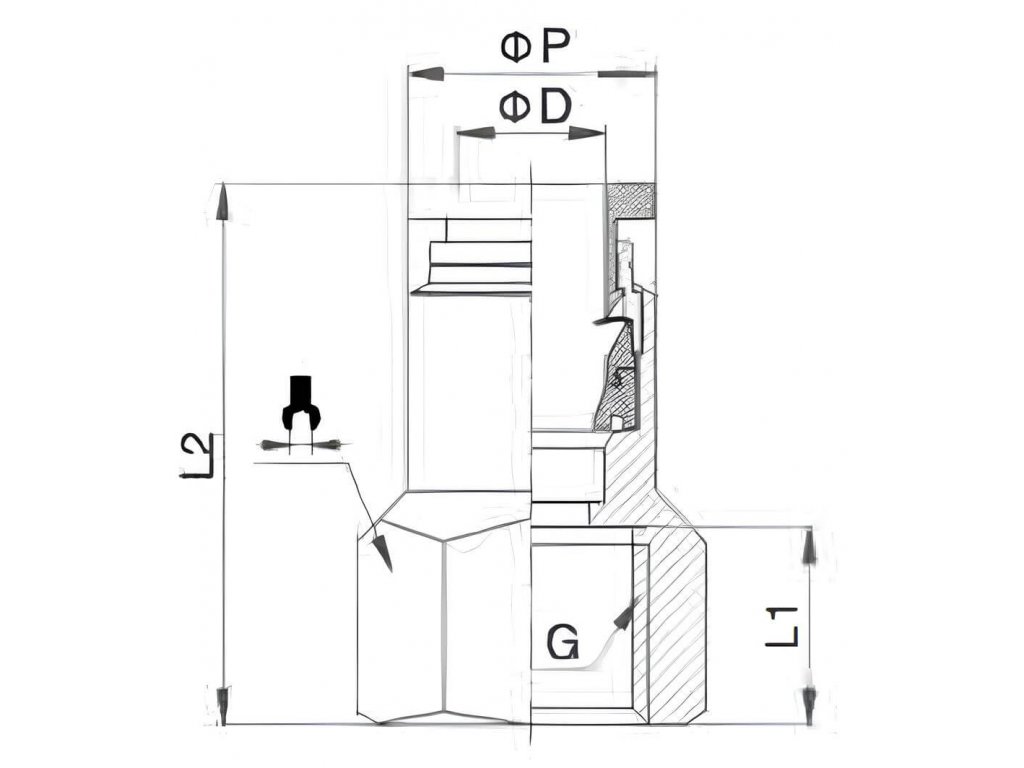

    Straight couplings with female thread 6 - G3/8"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Straight socket coupling with female thread G
    Pressure: 10 bars
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Tubular G
    SW (key): 19
    Seals: PTFE
    Thread: G 3/8"
    Shape: Direct couplings
    Connection system: Plug-in system
