    Home / Fasteners / Plastic socket couplings; socket blue / Straight coupling; internal thread G / Direct fitting internal 10 - G3/8"

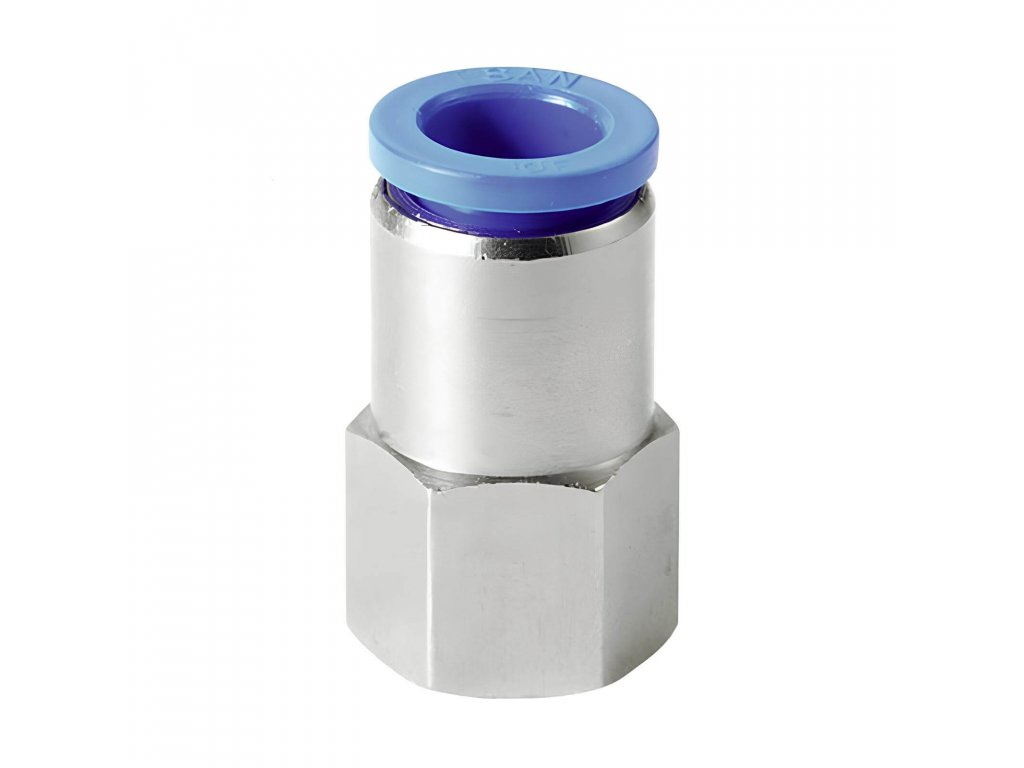

    Direct fitting internal 10 - G3/8"

    Code: PCF-3810
    Tip
    Not rated
    190 Kč –10 %
    Direct fitting internal 10 - G3/8"
    190 Kč –10 % 171 Kč / pcs 141 Kč excl. VAT
    Stock (273 pcs)
    Delivery to:
    25.12.2024

    Socket coupling in straight plastic design with 3/8" female pipe thread. Quick and easy installation of plastic tubing with 10 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum working pressure of the medium 10 bar with a temperature range of -10/60°C.

    Detailed information

    Product detailed description

    Straight couplings with female thread 10 - G3/8"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Straight socket coupling with female thread G
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Tubular G
    SW (key): 19
    Seals: PTFE
    Thread: G 3/8"
    Shape: Direct couplings
    Connection system: Plug-in system
