Direct fitting with external thread MPC-3814
Code: MPC-3814Product detailed description

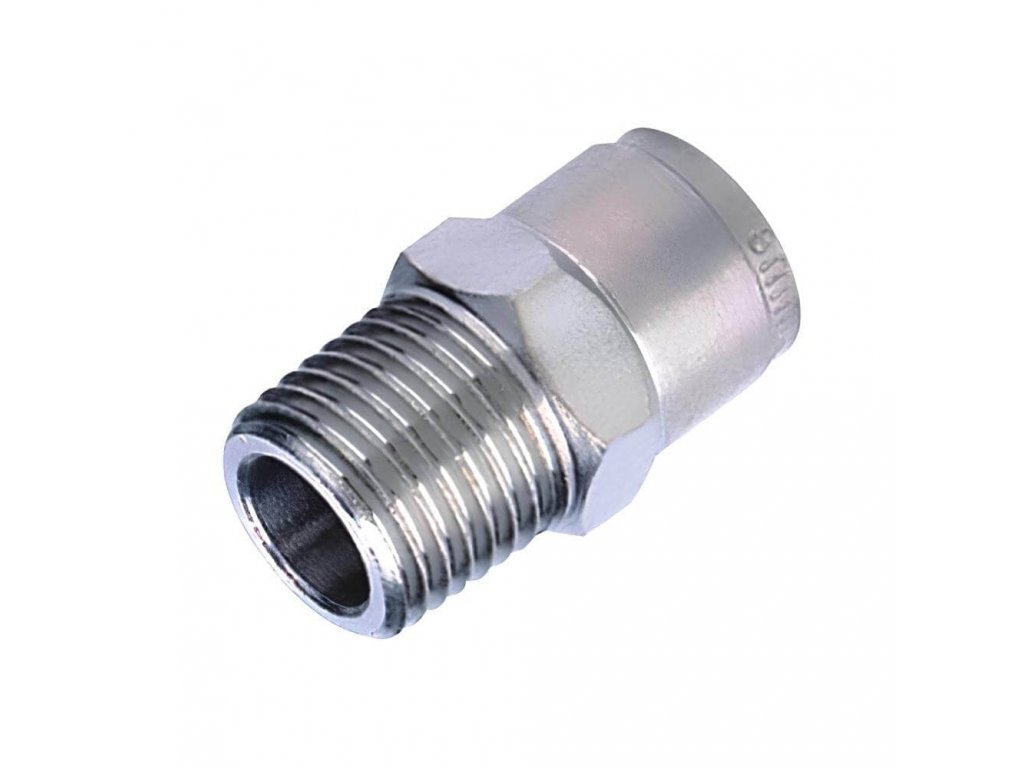

MPC-3814 male threaded straight fitting
- socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology
- the all-metal design is particularly suitable for applications with high mechanical stress requirements on couplings
Additional parameters
| Category: | Straight couplings with external tapered thread R |
|---|---|
| Pressure: | 12 bar |
| A tube: | 14 mm |
| SW (key): | 22 |
| Thread: | R 3/8" |
| Connection system: | Plug-in system |
