Direct fitting with external thread 12 - G1/2"
Code: MPCG-1212Product detailed description

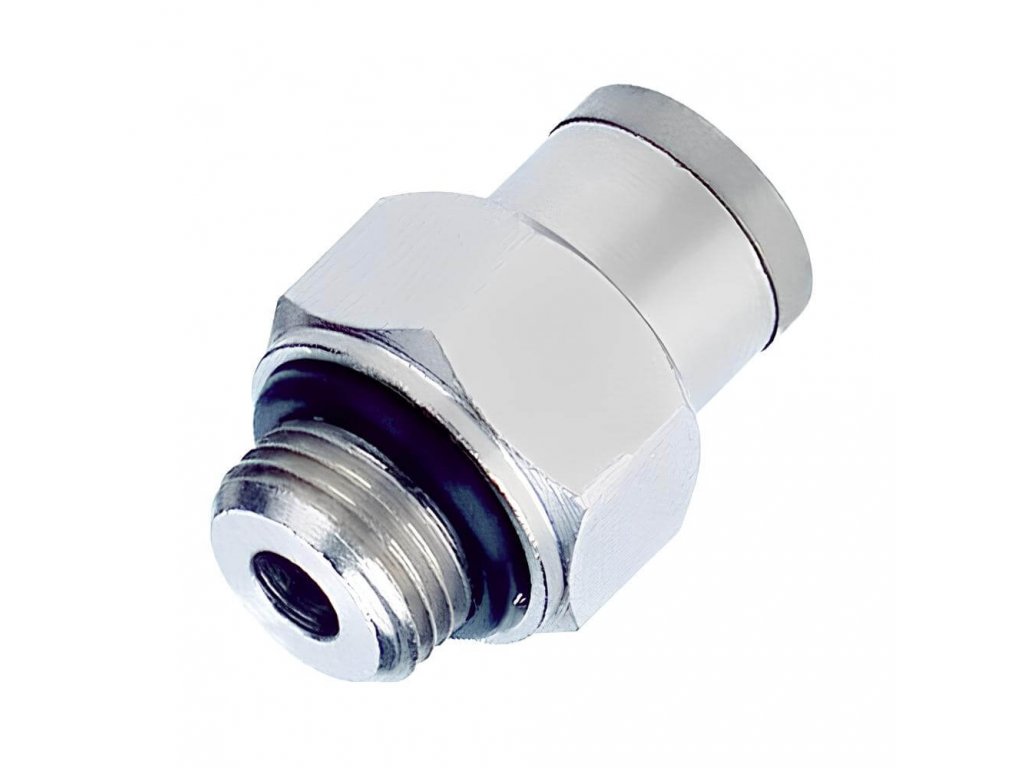

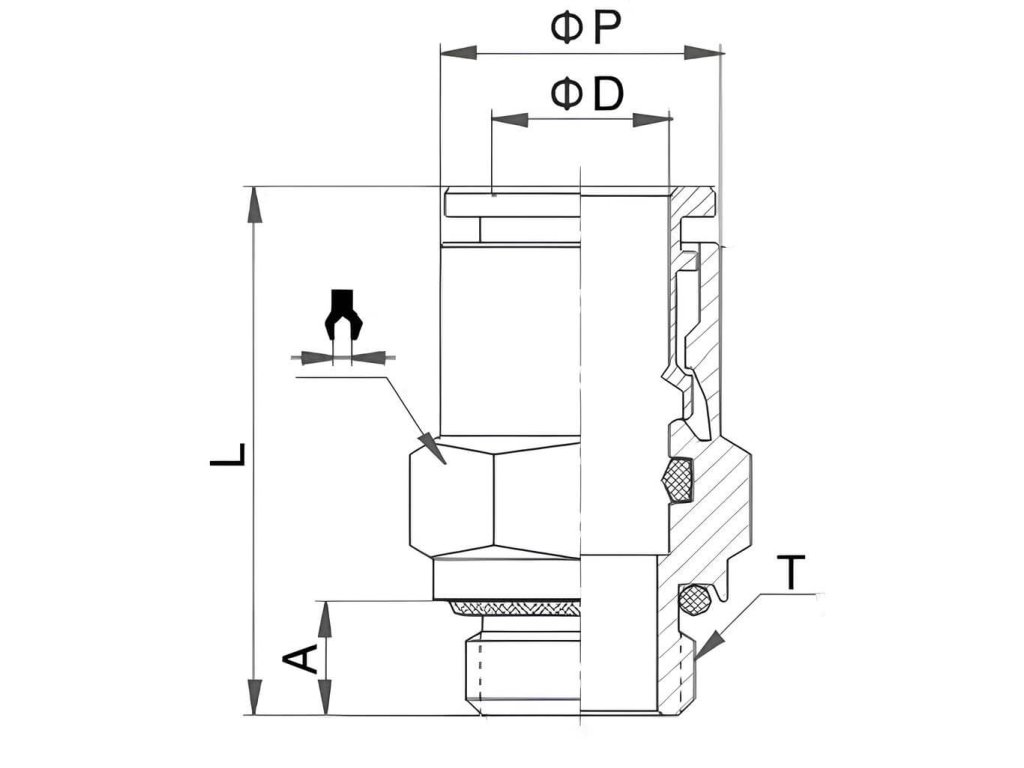

Straight coupling with external pipe thread 12 - G 1/2" - metal socket design
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
| Category: | Straight socket screwdriver male thread G |
|---|---|
| Pressure: | 10 bars |
| A tube: | 12 mm |
| Material: | Brass |
| Medium: | Compressed air |
| Working temperature: | -10 / +80 °C |
| Thread design: | Tubular G |
| SW (key): | 24 |
| Seals: | NBR |
| Thread: | G 1/2" |
| Connection system: | Plug-in system |
