Direct fitting 10/8 mm - R3/8"

Code: RPC-3810
86 Kč –4 %
Direct fitting 10/8 mm - R3/8"
86 Kč –4 % 82 Kč / pcs 68 Kč excl. VAT
Stock (82 pcs)
Delivery to:
30.09.2024
Straight fitting with 10/8 mm hose nut and R3/8" male conical thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications requiring resistance to mechanical stress. Application in automation, measurement and control technology in the field of compressed air.

Detailed information

Product detailed description

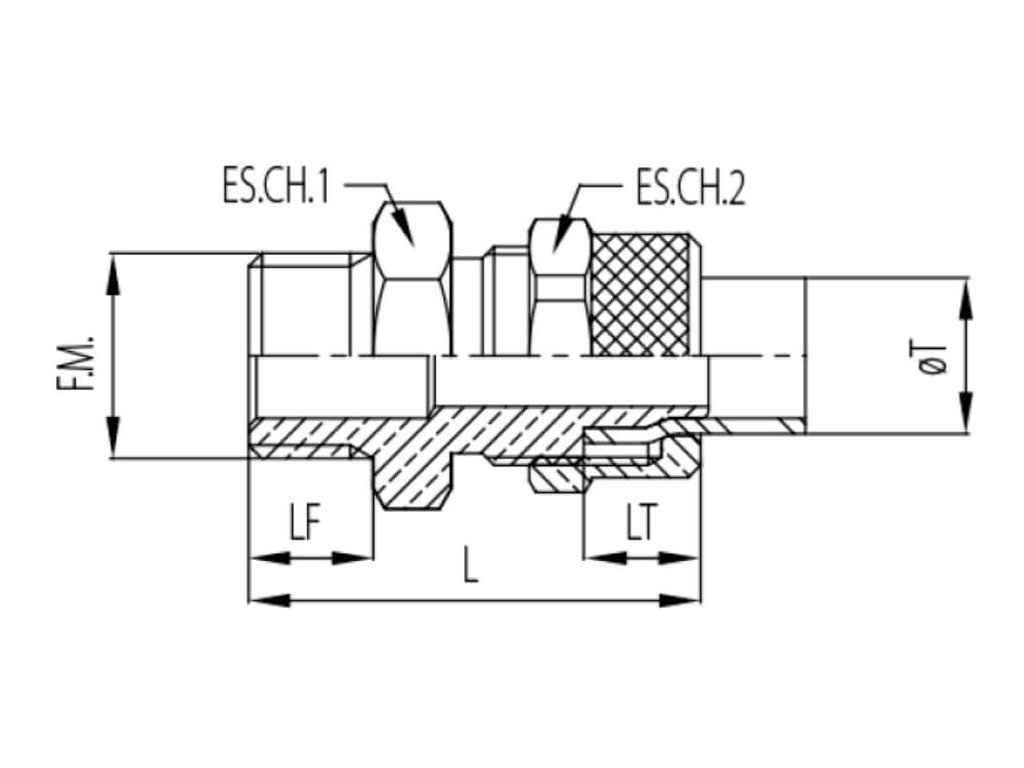

Straight fitting with coupling nut and male thread R3/8" - 10/8

  • Provide a reliable connection from plastic tubing
  • Nickel-plated brass body MS 58, NBR sealing ring
  • Tubular, tapered or metric threads
  • Designed especially for applications with requirements for resistance to mechanical stress, use in automation, measuring and control technology

Additional parameters

Category: Straight fitting overrunning nut male thread R
Pressure: 15 Bar
A tube: 10/8 mm
Material: Brass
Medium: Compressed air
Working temperature: -10 / +70 °C
Thread design: Tapered R - Outer
SW (key): 12
Seals: Perbunan
Thread: R 3/8"
Connection system: With cover nut

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
