    Home / Fasteners / Plastic rotary couplings; socket couplings up to 1500 rpm / Straight rotary couplings; external tapered thread R

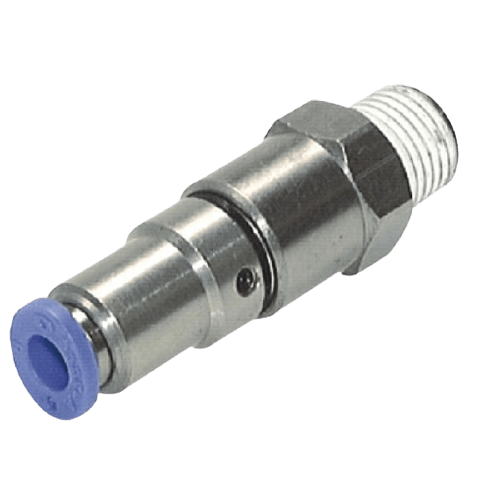

    Straight socket rotary couplings external thread R

    Rotační spojka v plastovém provedení
    • Special ball bearing couplings designed for applications where
    • Increased coupling rotation requirements up to 1500 rpm
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Straight rotary couplings with external tapered thread up to 500 rpm
    Ordering
    number    		 Tube
    mm    		 Thread
    "    		 Max. revolutions
    min    		 Working pressure
    bar    		 Working temperature
    °C
    NRC-184 4 mm R1/8" 500 0 - 10 0 / +60
    NRC-186 6 mm R1/8" 500 0 - 10 0 / +60
    NRC-146 6 mm R1/4" 500 0 - 10 0 / +60
    NRC-188 8 mm R1/8" 400 0 - 10 0 / +60
    NRC-148 8 mm R1/4" 400 0 - 10 0 / +60
    NRC-388 8 mm R3/8" 400 0 - 10 0 / +60
    NRC-3810 10 mm R3/8" 300 0 - 10 0 / +60
    NRC-1210 10 mm R1/2" 300 0 - 10 0 / +60
    NRC-3812 12 mm R3/8" 250 0 - 10 0 / +60
    NRC-1212 12 mm R1/2" 250 0 - 10 0 / +60

    Rotary direct couplings with external tapered thread up to 1 500 rpm
    Ordering
    number    		 Tube
    mm    		 Thread
    "    		 Max. revolutions
    min    		 Working pressure
    bar    		 Working temperature
    °C
    NHRC-184 4 mm R1/8" 1 500 0 - 10 0 / +60
    NHRC-186 6 mm R1/8" 1 200 0 - 10 0 / +60
    NHRC-146 6 mm R1/4" 1 200 0 - 10 0 / +60
    NHRC-188 8 mm R1/8" 1 200 0 - 10 0 / +60
    NHRC-148 8 mm R1/4" 1 200 0 - 10 0 / +60
    NHRC-3810 10 mm R3/8" 1 000 0 - 10 0 / +60
    NHRC-1210 10 mm R1/2" 1 000 0 - 10 0 / +60
    NHRC-3812 12 mm R3/8" 1 000 0 - 10 0 / +60
    NHRC-1212 12 mm R1/2" 1 000 0 - 10 0 / +60

    Bestsellers

    239835 prima rotacni spojka 10 r1 2
    1 529 Kč –4 %
    Direct rotary coupling 10 - R1/2"
    up to 14 days
    Code: NRC-1210
    Was: 1 529 Kč  (–4 %)
    1 453 Kč
    (1 201 Kč excl. VAT)
    249267 prima vysokorotacni spojka 12 r1 2
    3 648 Kč –4 %
    Direct high rotation coupling 12 - R1/2"
    up to 14 days
    Code: NHRC-1212
    Was: 3 648 Kč  (–4 %)
    3 466 Kč
    (2 864 Kč excl. VAT)
    249264 prima vysokorotacni spojka 12 r3 8
    3 648 Kč –4 %
    Direct high rotation coupling 12 - R3/8"
    up to 14 days
    Code: NHRC-3812
    Was: 3 648 Kč  (–4 %)
    3 466 Kč
    (2 864 Kč excl. VAT)
    249261 prima vysokorotacni spojka 10 r1 2
    3 648 Kč –4 %
    Direct high rotation coupling 10 - R1/2"
    up to 14 days
    Code: NHRC-1210
    Was: 3 648 Kč  (–4 %)
    3 466 Kč
    (2 864 Kč excl. VAT)
    249258 prima vysokorotacni spojka 10 r3 8
    3 648 Kč –4 %
    Direct High Rotation Coupling 10 - R3/8"
    up to 14 days
    Code: NHRC-3810
    Was: 3 648 Kč  (–4 %)
    3 466 Kč
    (2 864 Kč excl. VAT)
    249255 prima vysokorotacni spojka 8 r1 4
    2 926 Kč –4 %
    Direct high rotation coupling 8 - R1/4"
    up to 14 days
    Code: NHRC-148
    Was: 2 926 Kč  (–4 %)
    2 780 Kč
    (2 298 Kč excl. VAT)
    249252 prima vysokorotacni spojka 8 r1 8
    2 926 Kč –4 %
    Direct high rotation coupling 8 - R1/8"
    up to 14 days
    Code: NHRC-188
    Was: 2 926 Kč  (–4 %)
    2 780 Kč
    (2 298 Kč excl. VAT)
    249249 prima vysokorotacni spojka 6 r1 4
    2 573 Kč –5 %
    Direct high rotation coupling 6 - R1/4"
    up to 14 days
    Code: NHRC-146
    Was: 2 573 Kč  (–5 %)
    2 444 Kč
    (2 020 Kč excl. VAT)
    249246 prima vysokorotacni spojka 6 r1 8
    2 573 Kč –5 %
    Direct high rotation coupling 6 - R1/8"
    up to 14 days
    Code: NHRC-186
    Was: 2 573 Kč  (–5 %)
    2 444 Kč
    (2 020 Kč excl. VAT)
    249243 1 prima vysokorotacni spojka 4 r1 8
    2 573 Kč –5 %
    Direct high rotation coupling 4 - R1/8"
    up to 14 days
    Code: NHRC-184
    Was: 2 573 Kč  (–5 %)
    2 444 Kč
    (2 020 Kč excl. VAT)
    Show more products
    19 items total
    239817 prima rotacni spojka 6 r1 8
    660 Kč –5 %
    Direct rotary coupling 6 - R1/8"
    up to 14 days
    518 Kč excl. VAT
    627 Kč / pcs

    The 6 mm straight socket rotary coupling with 1/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-186
    249261 prima vysokorotacni spojka 10 r1 2
    3 648 Kč –4 %
    Direct high rotation coupling 10 - R1/2"
    up to 14 days
    2 864 Kč excl. VAT
    3 466 Kč / pcs

    The 10 mm straight socket rotary coupling with R1/2" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation...

    Code: NHRC-1210
    249258 prima vysokorotacni spojka 10 r3 8
    3 648 Kč –4 %
    Direct High Rotation Coupling 10 - R3/8"
    up to 14 days
    2 864 Kč excl. VAT
    3 466 Kč / pcs

    The 10 mm straight socket rotary coupling with R3/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation...

    Code: NHRC-3810
    249267 prima vysokorotacni spojka 12 r1 2
    3 648 Kč –4 %
    Direct high rotation coupling 12 - R1/2"
    up to 14 days
    2 864 Kč excl. VAT
    3 466 Kč / pcs

    The 12 mm straight socket rotary coupling with R1/2" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation...

    Code: NHRC-1212
    249264 prima vysokorotacni spojka 12 r3 8
    3 648 Kč –4 %
    Direct high rotation coupling 12 - R3/8"
    up to 14 days
    2 864 Kč excl. VAT
    3 466 Kč / pcs

    The 12 mm straight socket rotary coupling with R3/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation...

    Code: NHRC-3812
    249243 1 prima vysokorotacni spojka 4 r1 8
    2 573 Kč –5 %
    Direct high rotation coupling 4 - R1/8"
    up to 14 days
    2 020 Kč excl. VAT
    2 444 Kč / pcs

    The 4 mm straight socket rotary coupling with R1/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NHRC-184
    249249 prima vysokorotacni spojka 6 r1 4
    2 573 Kč –5 %
    Direct high rotation coupling 6 - R1/4"
    up to 14 days
    2 020 Kč excl. VAT
    2 444 Kč / pcs

    The 6 mm straight socket rotary coupling with R1/4" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NHRC-146
    249246 prima vysokorotacni spojka 6 r1 8
    2 573 Kč –5 %
    Direct high rotation coupling 6 - R1/8"
    up to 14 days
    2 020 Kč excl. VAT
    2 444 Kč / pcs

    The 6 mm straight socket rotary coupling with R1/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NHRC-186
    249255 prima vysokorotacni spojka 8 r1 4
    2 926 Kč –4 %
    Direct high rotation coupling 8 - R1/4"
    up to 14 days
    2 298 Kč excl. VAT
    2 780 Kč / pcs

    The 8 mm straight socket rotary coupling with R1/4" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NHRC-148
    249252 prima vysokorotacni spojka 8 r1 8
    2 926 Kč –4 %
    Direct high rotation coupling 8 - R1/8"
    up to 14 days
    2 298 Kč excl. VAT
    2 780 Kč / pcs

    The 8 mm straight socket rotary coupling with R1/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NHRC-188
    239832 prima rotacni spojka 10 r3 8
    1 343 Kč –4 %
    Direct rotary coupling 10 - R3/8"
    up to 14 days
    1 055 Kč excl. VAT
    1 276 Kč / pcs

    The 10 mm straight socket rotary coupling with 3/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-3810
    239841 prima rotacni spojka 12 r1 2
    1 498 Kč –5 %
    Direct rotary coupling 12 - R1/2"
    up to 14 days
    1 176 Kč excl. VAT
    1 423 Kč / pcs

    The 12 mm straight socket rotary coupling with 1/2" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-1212
    239838 prima rotacni spojka 12 r3 8
    1 554 Kč –5 %
    Direct rotary coupling 12 - R3/8"
    up to 14 days
    1 220 Kč excl. VAT
    1 476 Kč / pcs

    The 12 mm straight socket rotary coupling with 3/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-3812
    239814 prima rotacni spojka 4 r1 8
    627 Kč –4 %
    Direct rotary coupling 4 - R1/8"
    up to 14 days
    493 Kč excl. VAT
    596 Kč / pcs

    The 4 mm straight socket rotary coupling with 1/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-184
    239820 prima rotacni spojka 6 r1 4
    660 Kč –5 %
    Direct rotary coupling 6 - R1/4"
    up to 14 days
    518 Kč excl. VAT
    627 Kč / pcs

    The 6 mm straight socket rotary coupling with 1/4" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-146
    239826 prima rotacni spojka 8 r1 4
    855 Kč –5 %
    Direct rotary coupling 8 - R1/4"
    up to 14 days
    671 Kč excl. VAT
    812 Kč / pcs

    The 8 mm straight socket rotary coupling with 1/4" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-148
    239823 prima rotacni spojka 8 r1 8
    855 Kč –5 %
    Direct rotary coupling 8 - R1/8"
    up to 14 days
    671 Kč excl. VAT
    812 Kč / pcs

    The 8 mm straight socket rotary coupling with 1/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-188
    Direct rotary coupling 8 - R3/8"
    910 Kč –4 %
    Direct rotary coupling 8 - R3/8"
    up to 14 days
    715 Kč excl. VAT
    865 Kč / pcs

    The 8 mm straight socket rotary coupling with 3/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-388
    239835 prima rotacni spojka 10 r1 2
    1 529 Kč –4 %
    Direct rotary coupling 10 - R1/2"
    up to 14 days
    1 201 Kč excl. VAT
    1 453 Kč / pcs

    The 10 mm straight socket rotary coupling with 1/2" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements...

    Code: NRC-1210
