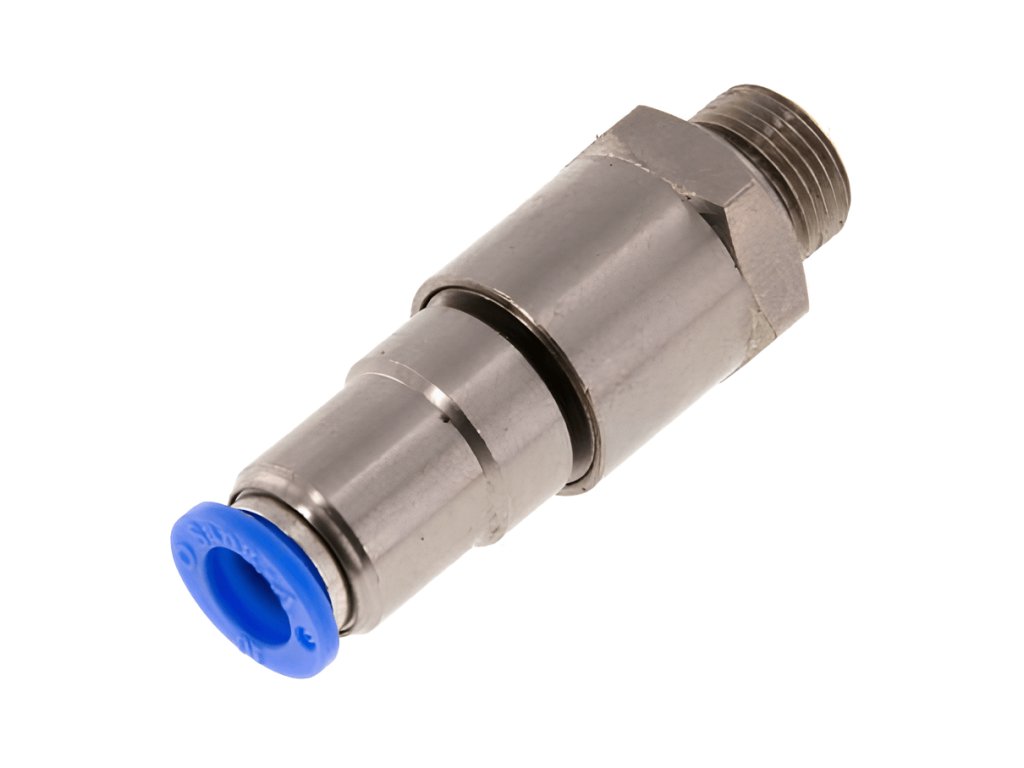

    Direct high rotation coupling 6 - G1/4"

    Code: NHRCG-146
    Not rated
    3 037 Kč –4 %
    Direct high rotation coupling 6 - G1/4"
    3 037 Kč –4 % 2 886 Kč / pcs 2 385 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024
    The 6 mm straight socket rotary coupling with G1/4" male pipe thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 1200 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Straight socket plastic rotary coupling with male pipe thread - NHRCG-146

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Straight socket rotary couplings external thread G
    Pressure: 10 bars
    Functions: Rotary clutch up to 1200 rpm
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer tube G
    Seals: NBR
    Thread: G 1/4"
    Connection system: Plug-in system
