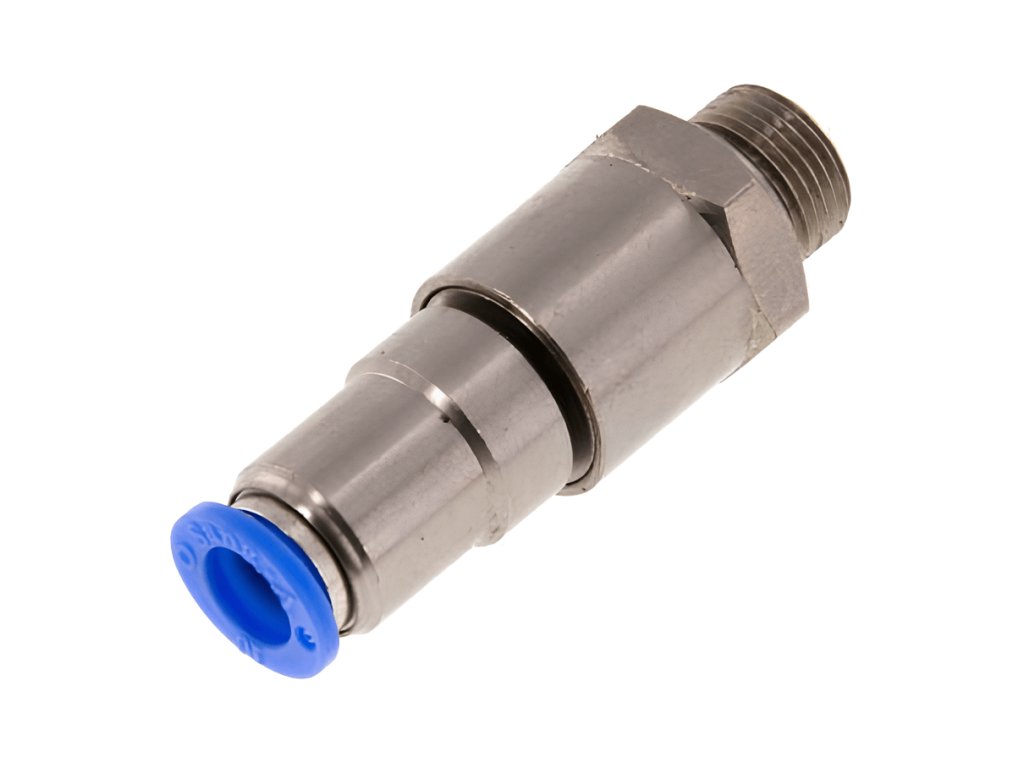

    Direct high-speed coupling 4 - M5

    Code: NHRCG-M54
    Not rated
    2 573 Kč –5 %
    Direct high-speed coupling 4 - M5
    2 573 Kč –5 % 2 444 Kč / pcs 2 020 Kč excl. VAT
    up to 14 days
    Delivery to:
    13.01.2025
    The 4 mm straight socket rotary coupling with M5 external metric thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 1500 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Straight socket plastic rotary coupling with male pipe thread - NHRCG-M54

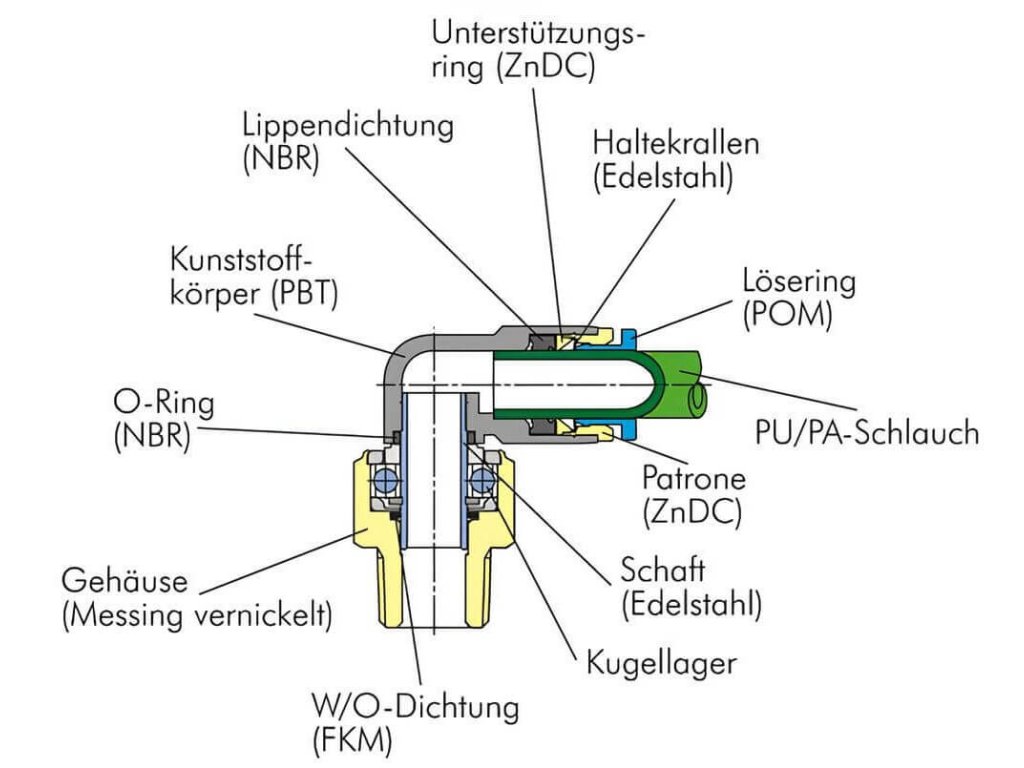

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Straight socket rotary couplings external thread G
    Pressure: 10 bars
    Functions: Rotary clutch up to 1500 rpm
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Metric
    Seals: NBR
    Thread: M5
    Connection system: Plug-in system
    Sealing ring made of Teflon PTFE DR-14TE
