Direct high-speed coupling 4 - G1/8

Code: NHRCG-184

Not rated

Brand: Pneumatics & Hydraulics

3 037 Kč –4 %

3 037 Kč –4 % 2 886 Kč / pcs 2 385 Kč excl. VAT

Delivery to: 10.12.2024

The 4 mm straight socket rotary coupling with G1/8" male pipe thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 1500 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Product detailed description

Straight socket rotary plastic coupling with male pipe thread - NHRCG-184

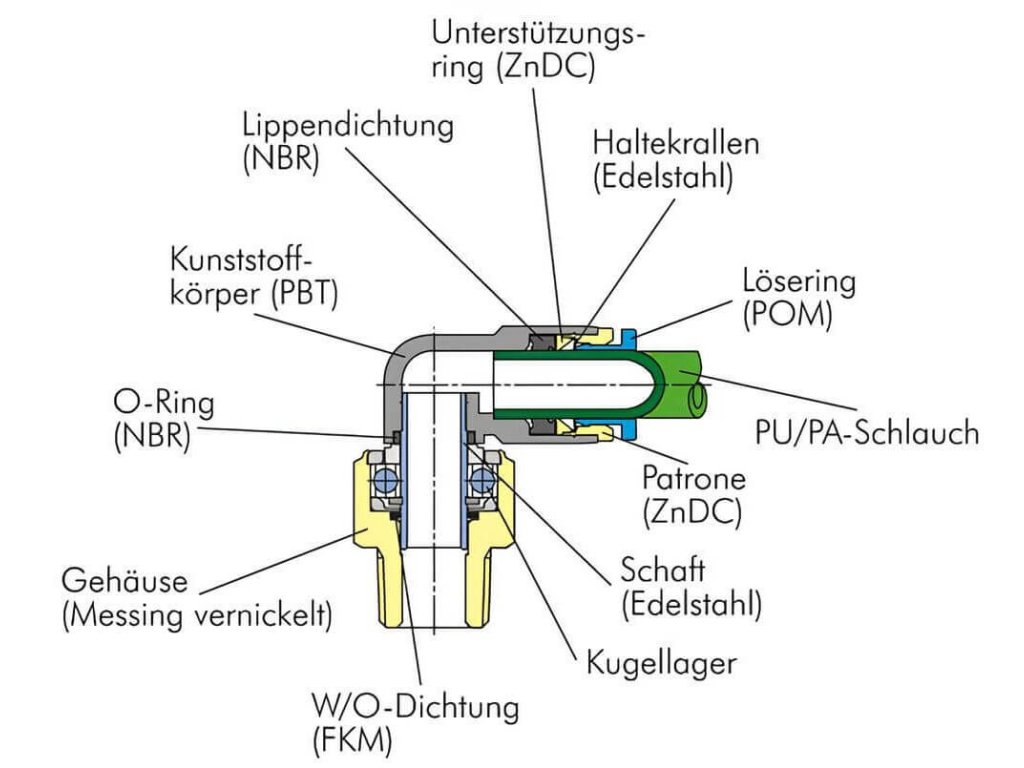

Special ball bearing couplings designed for applications where
Increased demands on coupling rotation
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	Straight socket rotary couplings external thread G
Pressure:	10 bars
Functions:	Rotary clutch up to 1500 rpm
A tube:	4 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	0 / +60 °C
Thread design:	Outer tube G
Seals:	NBR
Thread:	G 1/8"
Connection system:	Plug-in system
