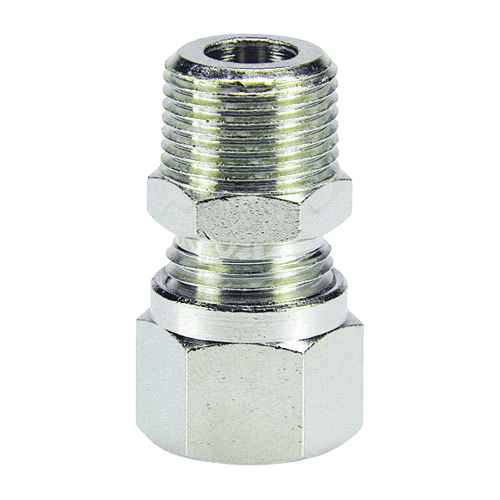

Straight fittings with external tapered thread

Nerezové přímé šroubení se zářezovým kroužkem

conform to DIN 2353 standards for metal pipes
working pressure 250 bar, can be used for metal pipes and plastic pipes in the case of the use of a cavity
straight fittings with external tapered threads are universal fittings for use in various areas, especially with requirements for high mechanical, pressure and chemical resistance

Straight fittings with external tapered thread and notch ring
Ordering number	Tube mm	Thread "	Matrix SW	Length mm	SW	Thread length mm
OX11-186	6 mm	R 1/8"	14	33	12	10
OX11-188	8 mm	R 1/8"	17	33	14	10
OX11-148	8 mm	R 1/4"	17	38	17	13
OX11-388	8 mm	R 3/8"	17	36	19	13
OX11-1410	10 mm	R 1/4"	19	39	17	13
OX11-3810	10 mm	R 3/8"	19	37	19	13
OX11-1210	10 mm	R 1/2"	19	40	22	16
OX11-1412	12 mm	R 1/4"	22	38	19	13
OX11-3812	12 mm	R 3/8"	22	40	19	13
OX11-1212	12 mm	R 1/2"	22	41	22	16
OX11-1215	15 mm	R 1/2"	27	45	24	16
