    Direct clutch reduced 6 - 10

    Code: PG-610
    Tip
    Not rated
    57 Kč –10 %
    Direct clutch reduced 6 - 10
    57 Kč –10 % 51 Kč / pcs 42 Kč excl. VAT
    Stock (>1000 pcs)
    Delivery to:
    25.12.2024

    Straight socket coupling reduced for quick assembly of 2 hoses with 6 mm and 10 mm diameter. Particularly suitable for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Maximum working temperature in the range -10/+60 °C and pressure 10 bar.

    Detailed information

    Product detailed description

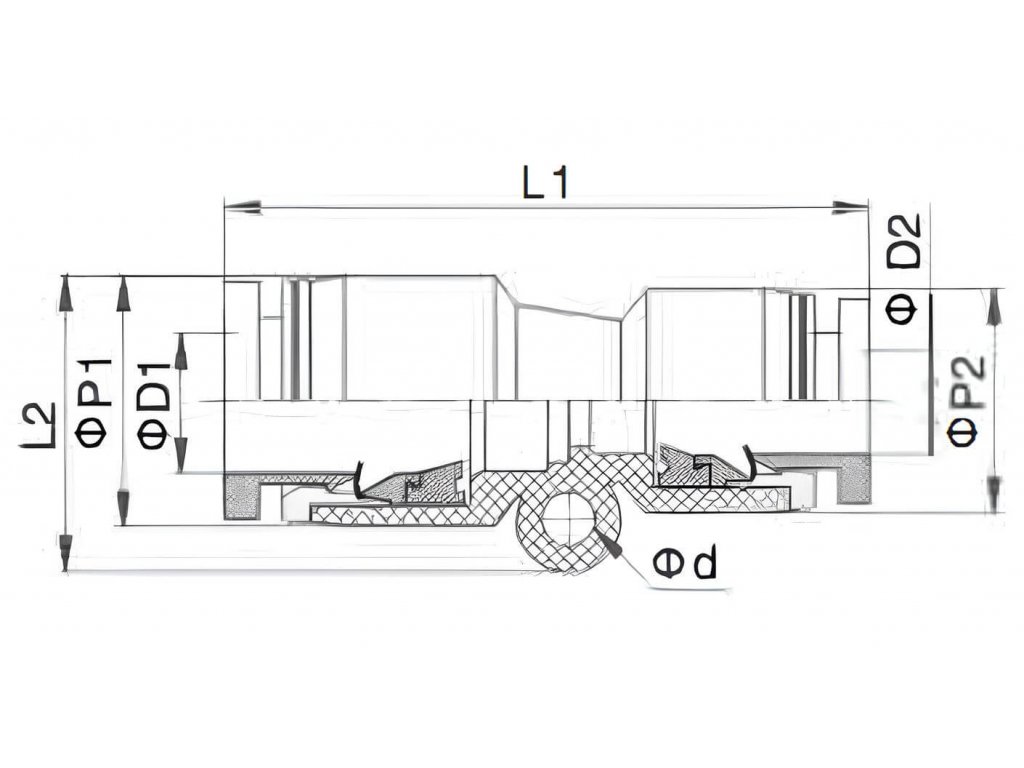

    Direct coupling in reduced plastic version for mounting 2 hoses with 6 mm and 10 mm diameter

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Direct couplings reduced
    Pressure: 10 bars
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Average: 18 mm
    Reducing: 10 mm
    Seals: PTFE
    Connection system: Plug-in system
