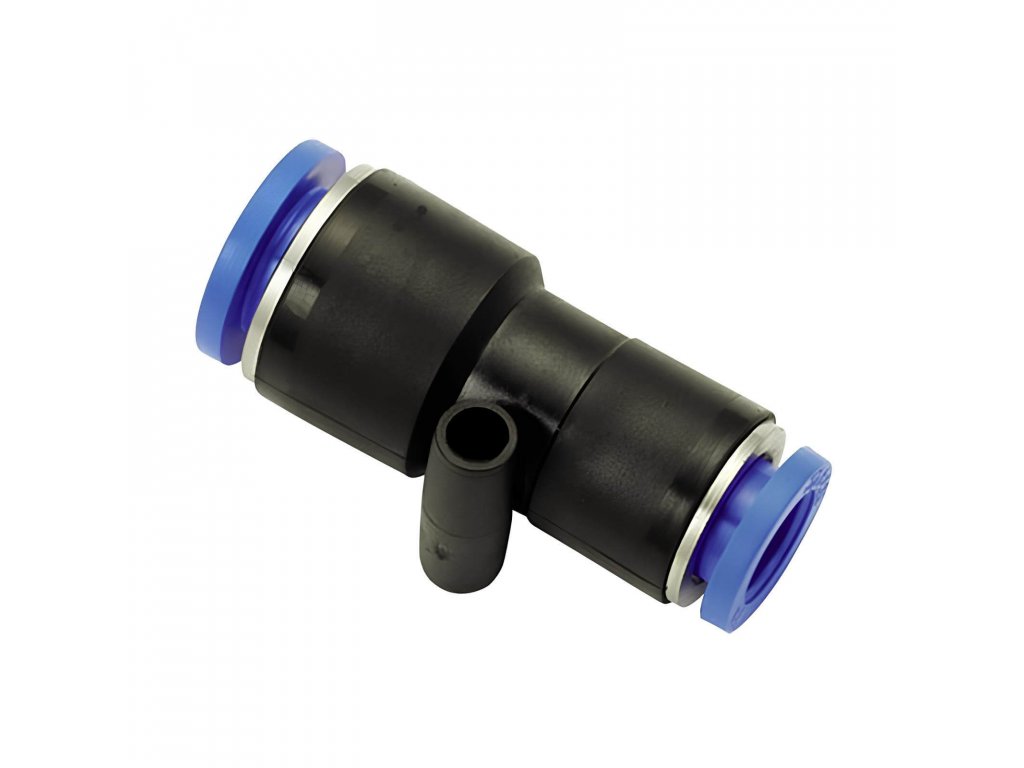

Direct clutch reduced 12 - 16

Code: PG-1216

Tip

Not rated

Brand: Pneumatics & Hydraulics

165 Kč –9 %

165 Kč –9 % 149 Kč / pcs 123 Kč excl. VAT

(133 pcs)

Delivery to: 25.12.2024

Direct socket coupling reduced for quick assembly of 2 hoses with 12 mm and 16 mm diameter. Particularly suitable for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Maximum working temperature in the range -10/+60 °C and pressure 10 bar.

Detailed information

Product detailed description

Direct coupling in reduced plastic version for mounting 2 hoses with 12 mm and 16 mm diameter

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

Additional parameters

Category:	Direct couplings reduced
Pressure:	10 bars
A tube:	12 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Average:	26 mm
Reducing:	16 mm
Seals:	PTFE
Connection system:	Plug-in system
