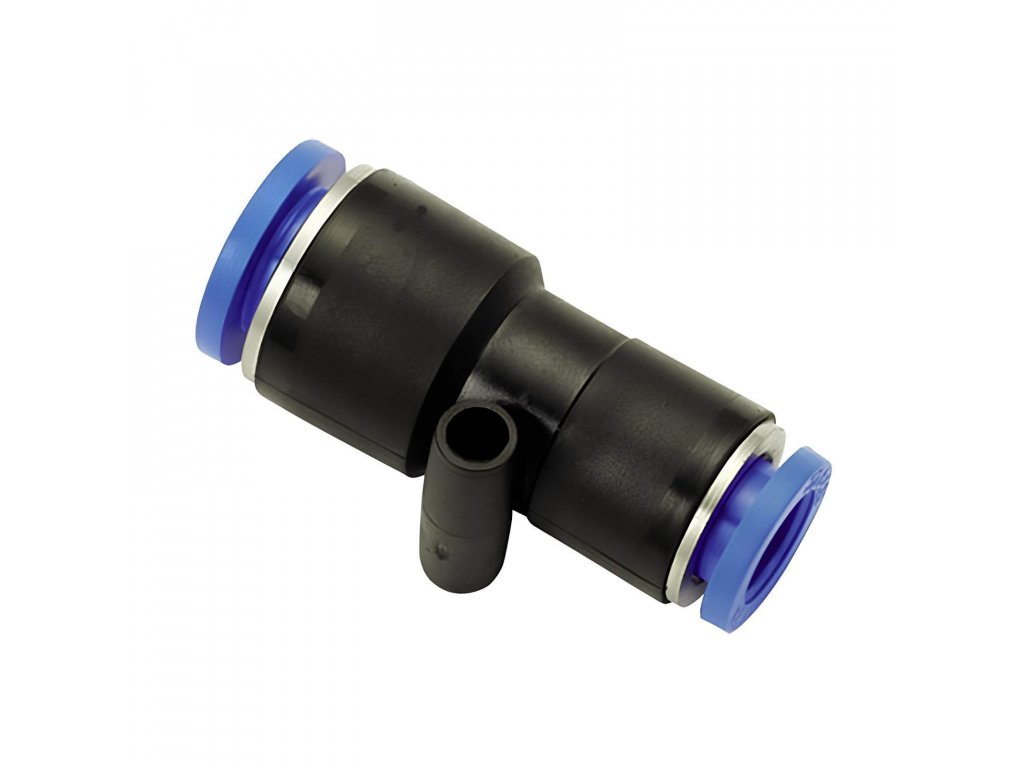

Direct clutch reduced 10 - 12

Code: PG-1012

Tip

Not rated

Brand: Pneumatics & Hydraulics

69 Kč –10 %

69 Kč –10 % 62 Kč / pcs 51 Kč excl. VAT

(614 pcs)

Delivery to: 30.09.2024

Straight socket coupling reduced for quick assembly of 2 hoses with 10 mm and 12 mm diameter. Particularly suitable for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Maximum working temperature in the range -10/+60 °C and pressure 10 bar.

Detailed information

Product detailed description

Direct coupling in reduced plastic version for mounting of 2 hoses with a diameter of 10 mm and 12 mm

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

Additional parameters

Category:	Direct couplings reduced
Pressure:	10 bars
A tube:	10 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Average:	21 mm
Reducing:	12 mm
Seals:	PTFE
Connection system:	Plug-in system
