Straight coupling 25 mm
Free shipping
For purchases over 5,000 CZK
We guarantee
Extended warranty and service
Discount voucher
For every purchase
Return of goods within 30 days
Completely at our expense

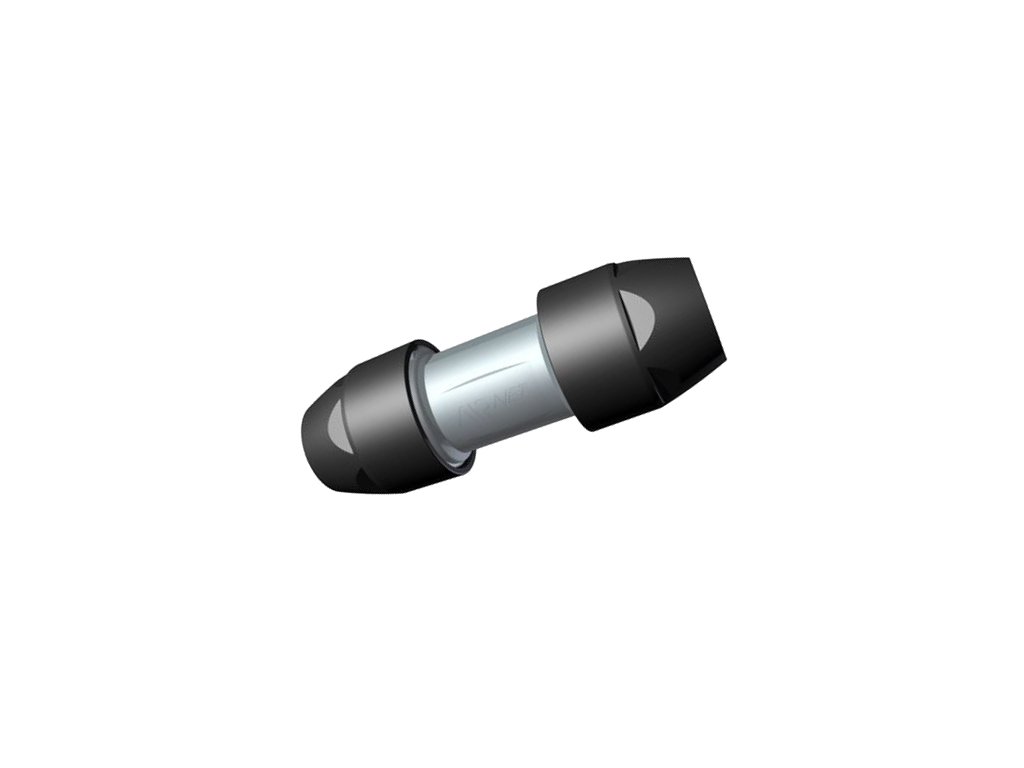

Airnet 25 mm straight socket couplings
- length 125 mm
- width 45 mm
- height 45 mm
- clearance 25 mm
- weight 0.1 kg
- material nylon PA6 + 15% fibreglass
Technical parameters
| Category: | Tvarovky potrubních rozvodů, nástrčný systém |
|---|---|
| Version: | Direct couplings |
| Pressure: | 13 bar |
| Material: | Nylon PA6 |
| Medium: | Compressed air, inert gas |
| Working temperature: | -20/+70°C |
| Lightness: | 25 mm |
| Hardness: | 70°N |
News Overload
We select articles from our advice room
How to properly select and use a compressor?
Be the first who will post an article to this item!
Be the first who will post an article to this item!
piping system with easy installation
Revolution in compressed air distributionPipelines designed for compressed air (blue) and inert gases (green) of the brand AIRnet are a modern and reliable option for air ducting. They outperform their competitors in several areas, be it easy handling, low weight or absolutely effortless joining. Compared to steel pipes, it is also a more economical option, which is not subject to corrosion and its installation does not require any special tools. All you need are your own hands and possibly classic "home" tools. |
 |
 |
Cooperation of aluminium and polymerWhat is so special about AIRnet? The entire piping system is exclusively made of materials that are not subject to corrosion, which brings additional associated benefits such as eliminating the risk of contamination or a maximum operating pressure of PN13 for temperatures between -20 and 70°C, with a lowest dew point as low as -70°C. The entire system consists of aluminium pipes and polymer couplings with clearances from 20 to 100 mm (3/4" to 4"). The perfectly smooth surface inside the pipe does not allow air to circulate inside (the coefficient of friction is reduced by almost half compared to galvanized pipe), thus also achieving a minimum pressure gradient, which saves both the compressor and your wallet. |
Installation without a drop of sweatAnother great advantage of AIRnet is its high compatibility and ease of installation. The system can be connected to the vast majority of existing pipelines, its light weight (approx. 5 kg for 50 mm diameter) makes it easy to assemble by a single technician without special training, and no welding, gluing or pressing is required when using polymer couplings. The connection to the coupling itself is extremely fast and takes on average 2-3 minutes. |
 |
Another advantage of AirNet piping:
- 10 year warranty
- fast cutting of aluminum tubes
- quick and easy pipe deburring - pipes can be easily slid into the couplings
- piping modifications are easy - fittings and pipes can be easily dismantled and reused
The system offer AIRnet can be found below.
