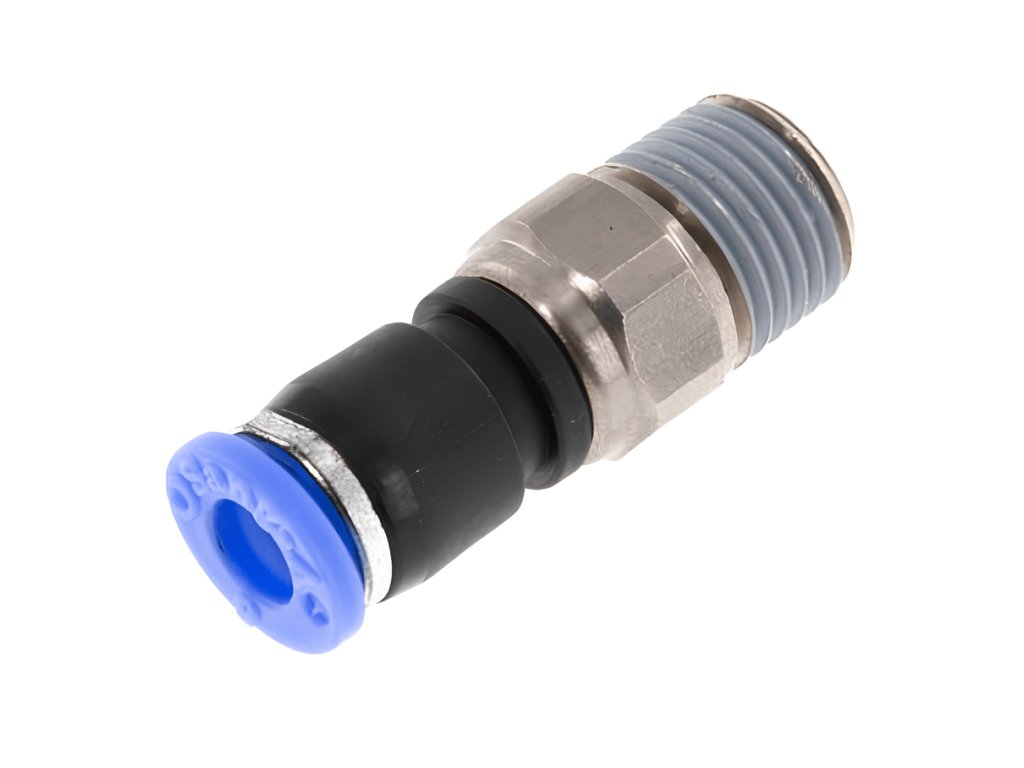

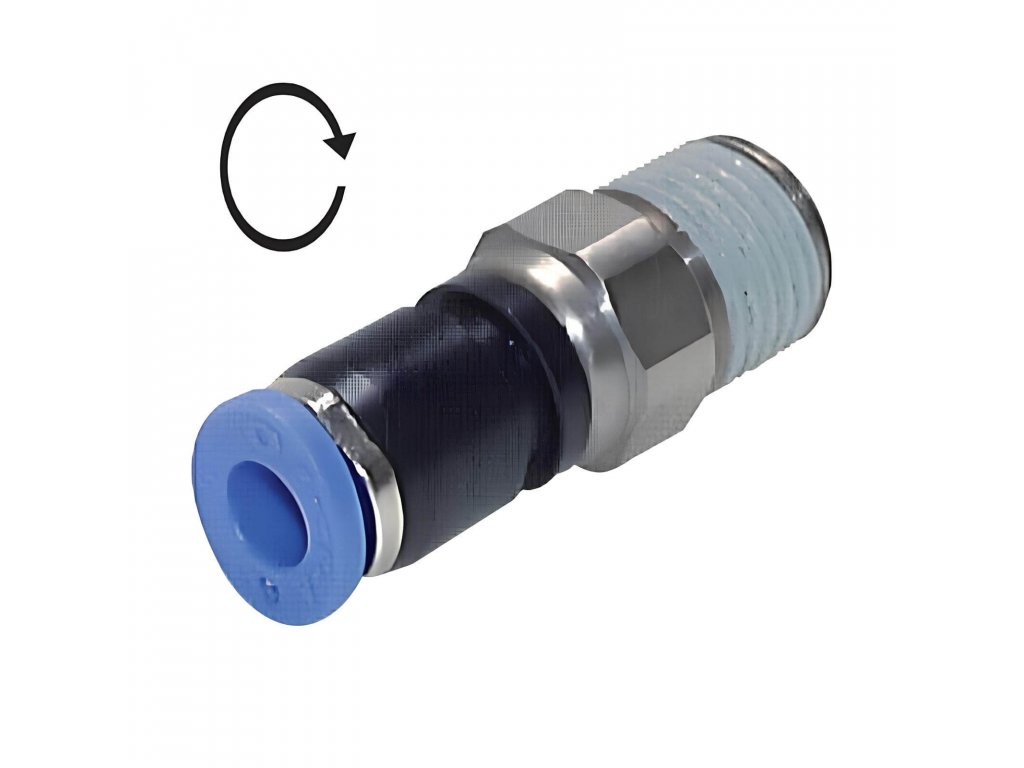

    Direct rotary coupling 10 - R3/8"

    Code: NRC-3810
    Not rated
    1 343 Kč –4 %
    239832 prima rotacni spojka 10 r3 8
    1 343 Kč –4 % 1 276 Kč / pcs 1 055 Kč excl. VAT
    up to 14 days
    Delivery to:
    11.11.2024
    The 10 mm straight socket rotary coupling with 3/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 300 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Straight socket rotary union with external tapered thread - NRC-3810

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Straight socket rotary couplings external thread R
    Pressure: 10 bars
    Functions: Rotary clutch up to 300 rpm
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer taper R
    Seals: PTFE
    Thread: R 3/8"
    Connection system: Plug-in system
