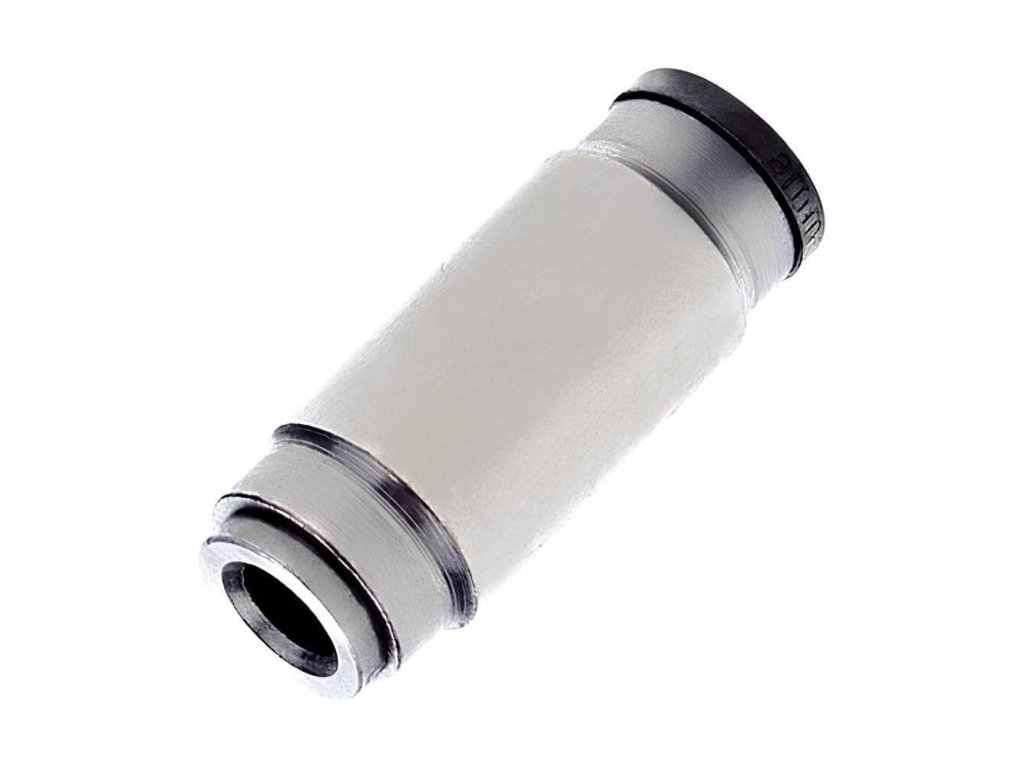

Direct push-in coupling reducing 4 - 6 mm
Code: MPG-46Product detailed description

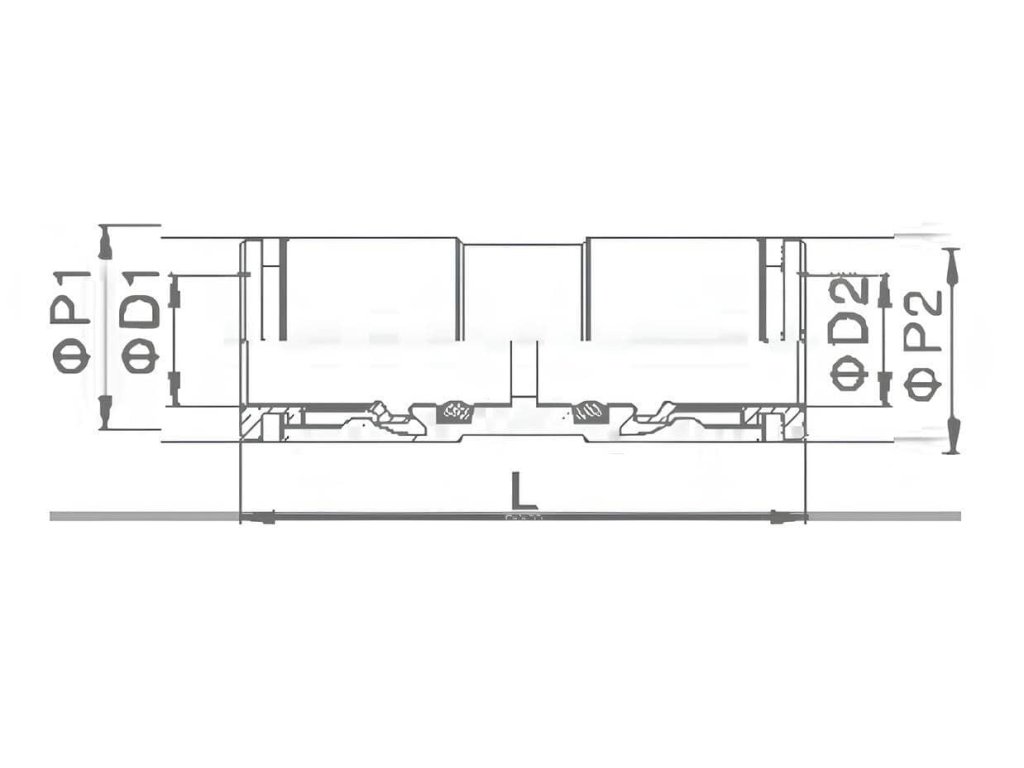

Straight reducing socket coupling 4 - 6 mm - metal socket version
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
Category: | Reducing metal couplings |
---|---|
Pressure: | 10 bars |
A tube: | 4 mm |
Material: | Brass |
Medium: | Compressed air |
Working temperature: | -10 / +80 °C |
Average: | 12 mm |
Reducing: | 6 mm |
Connection system: | Plug-in system |
