    Home / Fasteners / Metal socket couplings; brass version / Straight socket couplings; reduced version / Direct plug-in reduction coupling 10 - 14 mm

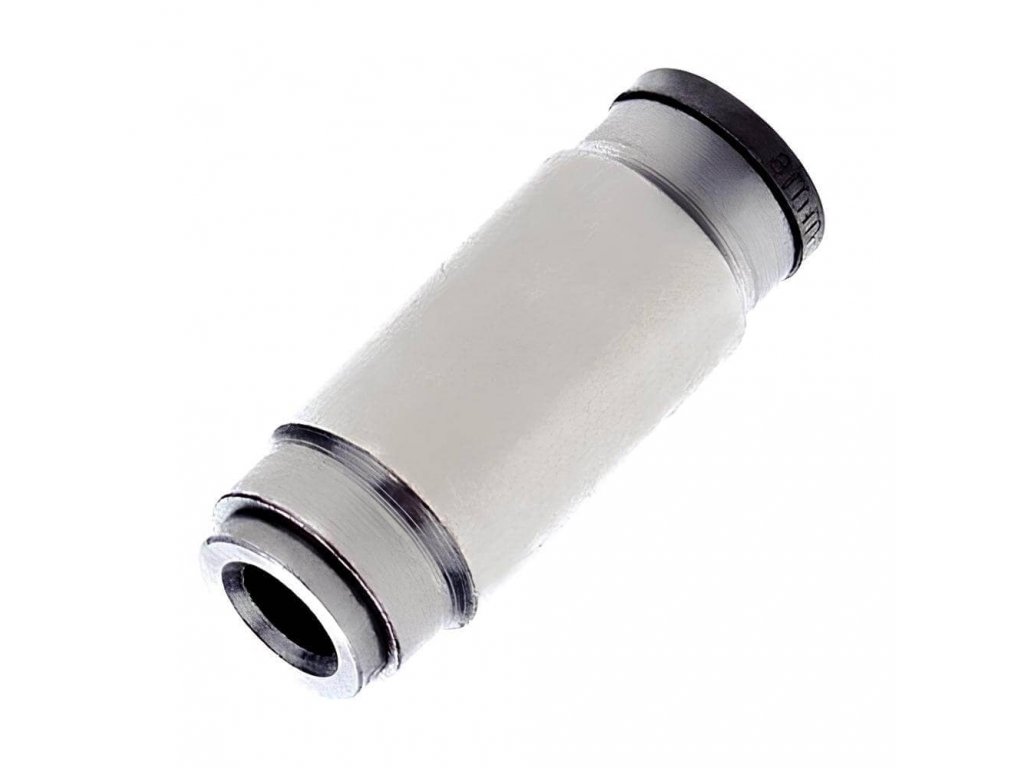

    Direct plug-in reduction coupling 10 - 14 mm

    Code: MPG-1014
    Not rated
    289 Kč –5 %
    Direct plug-in reduction coupling 10 - 14 mm
    289 Kč –5 % 274 Kč / pcs 226 Kč excl. VAT
    Stock (39 pcs)
    Delivery to:
    30.09.2024

    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

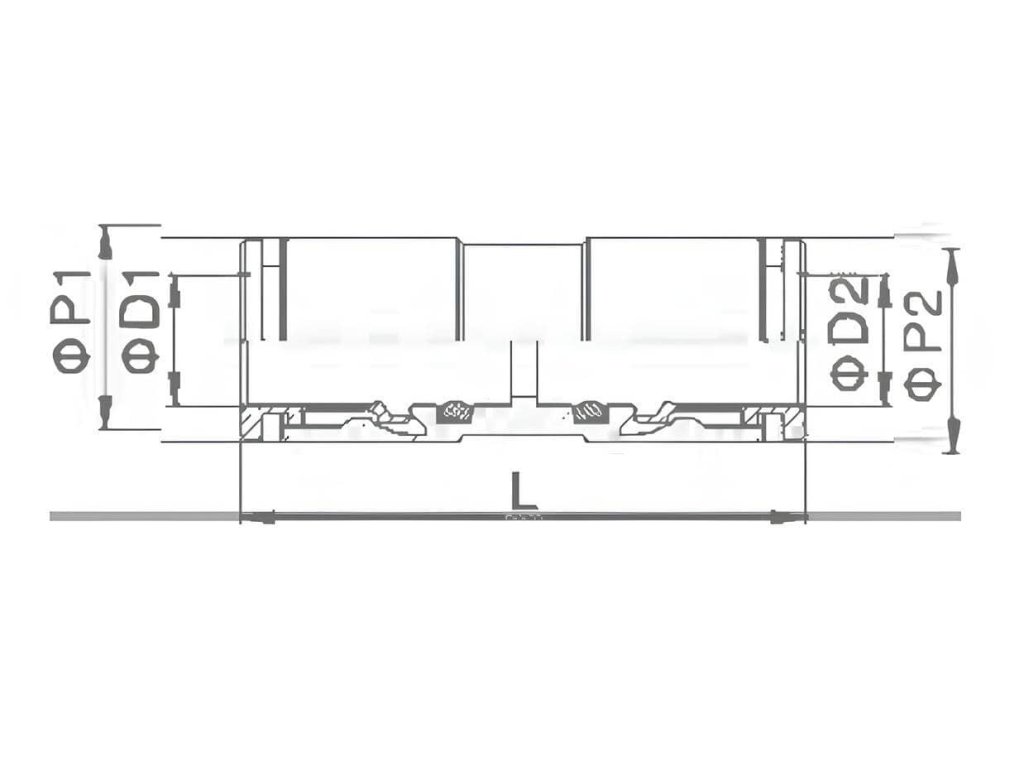

    Socket coupling straight reducer 10 - 14 mm - metal socket version

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: Reducing metal couplings
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Average: 21 mm
    Reducing: 14 mm
    Connection system: Plug-in system
    Sealing ring made of elastomer and brass DR-14EL
    28 Kč –7 %
    Sealing ring made of elastomer and brass DR-14EL
    Stock (30 pcs)
    21 Kč excl. VAT
    26 Kč

    Designed for G 1/4" thread. The inner diameter is 5.3 mm and the outer diameter is 8.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-14EL
    Sealing ring made of elastomer and brass DR-38EL
    31 Kč –3 %
    Sealing ring made of elastomer and brass DR-38EL
    Stock (20 pcs)
    25 Kč excl. VAT
    30 Kč

    Designed for G 3/8" thread. The inner diameter is 16.9 mm and the outer diameter is 21.8 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38EL
    Sealing ring made of Teflon PTFE DR-34TE
    20 Kč –5 %
    Sealing ring made of Teflon PTFE DR-34TE
    up to 14 days
    16 Kč excl. VAT
    19 Kč

    Designed for G 3/4" thread. The inner diameter is 26.5 mm and the outer diameter is 33.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-34TE
    Copper sealing ring DR-15CU
    51 Kč –5 %
    Copper sealing ring DR-15CU
    Stock (15 pcs)
    40 Kč excl. VAT
    48 Kč

    Designed for G 1 1/2" thread. The inner diameter is 48 mm and the outer diameter is 55 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-15CU
    Sealing ring from Teflon PTFE DR-10TE
    23 Kč –4 %
    Sealing ring from Teflon PTFE DR-10TE
    Stock (20 pcs)
    18 Kč excl. VAT
    22 Kč

    Designed for G 1" thread. The inner diameter is 33.5 mm and the outer diameter is 39.1 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-10TE
    Sealing ring made of Teflon PTFE DR-38TE
    13 Kč –7 %
    Sealing ring made of Teflon PTFE DR-38TE
    Stock (25 pcs)
    10 Kč excl. VAT
    12 Kč

    Designed for G 1/4" thread. The inner diameter is 13.5 mm and the outer diameter is 18.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38TE
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    204 Kč –4 %
    Dutch fitting with internal threads R3/8"
    up to 14 days
    160 Kč excl. VAT
    194 Kč

    Holendr cast iron fitting with internal threads R 3/8" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-38
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    679 Kč –5 %
    Dutchman fitting with internal threads R2"
    Stock (13 pcs)
    533 Kč excl. VAT
    645 Kč

    Holendr cast iron fitting with internal threads R 2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-20
    Copper sealing ring DR-34CU
    18 Kč –5 %
    Copper sealing ring DR-34CU
    Stock (4 pcs)
    14 Kč excl. VAT
    17 Kč

    Designed for G 3/4" thread. The inner diameter is 27 mm and the outer diameter is 32 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-34CU
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    178 Kč –5 %
    Dutchman fittings with internal threads R3/4"
    up to 14 days
    140 Kč excl. VAT
    169 Kč

    Holendr cast iron fitting with internal threads R 3/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-34
    Copper sealing ring DR-10CU
    22 Kč –4 %
    Copper sealing ring DR-10CU
    Stock (5 pcs)
    17 Kč excl. VAT
    21 Kč

    Designed for G 1" thread. The inner diameter is 33 mm and the outer diameter is 39 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-10CU
    Copper sealing ring DR-14CU
    Copper sealing ring DR-14CU
    Stock (20 pcs)
    5 Kč excl. VAT
    6 Kč

    Designed for G 1/4" thread. The inner diameter is 13 mm and the outer diameter is 18 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-14CU
    Copper sealing ring DR-20CU
    88 Kč –5 %
    Copper sealing ring DR-20CU
    up to 14 days
    69 Kč excl. VAT
    83 Kč

    Designed for G 2" thread. The inner diameter is 60 mm and the outer diameter is 68 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-20CU
    Sealing ring made of Teflon PTFE DR-14TE
    Sealing ring made of Teflon PTFE DR-14TE
    Stock (50 pcs)
    6 Kč excl. VAT
    7 Kč

    Designed for G 1/4" thread. The inner diameter is 13.5 mm and the outer diameter is 18.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-14TE
    Sealing ring made of elastomer and brass DR-12EL
    40 Kč –5 %
    Sealing ring made of elastomer and brass DR-12EL
    Stock (20 pcs)
    31 Kč excl. VAT
    38 Kč

    Designed for G 1/2" thread. The inner diameter is 20.8 mm and the outer diameter is 26.3 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12EL
    Copper sealing ring DR-12CU
    9 Kč –11 %
    Copper sealing ring DR-12CU
    Stock (3 pcs)
    7 Kč excl. VAT
    8 Kč

    Designed for G 1/2" thread. The inner diameter is 21 mm and the outer diameter is 26 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12CU
