    Straight plug connector 5 mm

    Code: MPUC-5
    1 rating
    93 Kč –5 %
    Straight plug connector 5 mm
    93 Kč –5 % 88 Kč / pcs 73 Kč excl. VAT
    Stock (81 pcs)
    Delivery to:
    20.11.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

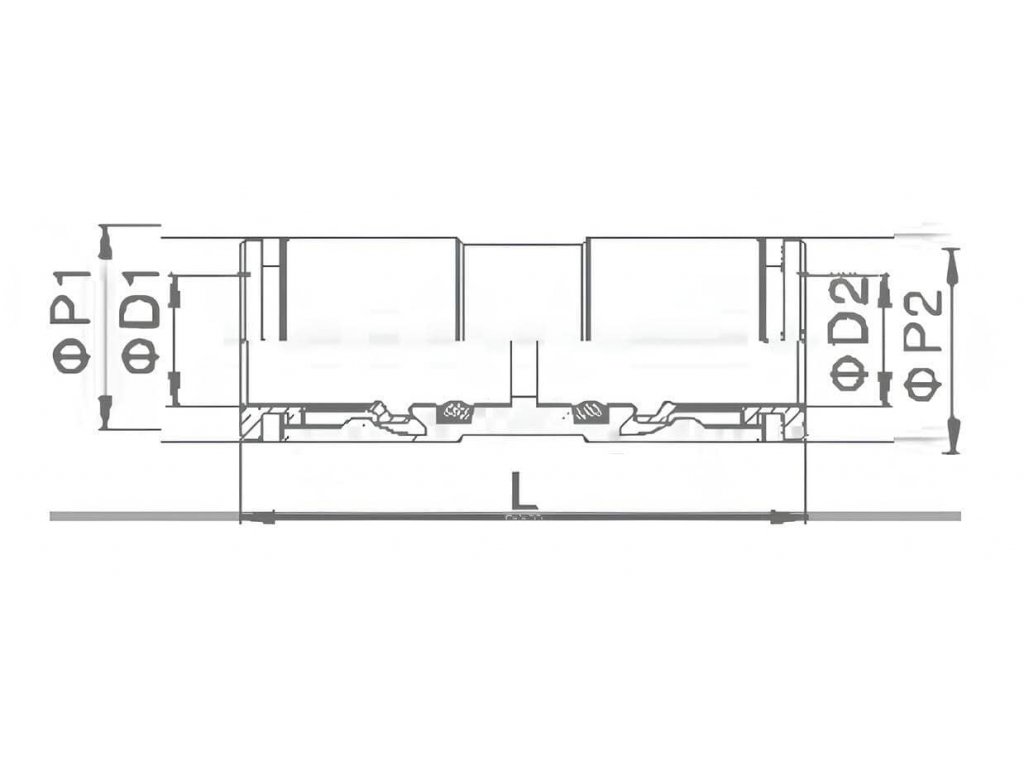

    Straight socket coupling 5 mm - metal socket version

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: Brass push-in couplings
    Pressure: 10 bars
    A tube: 5 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Average: 11 mm
    Connection system: Plug-in system
    Sealing ring made of Teflon PTFE DR-38TE
