Impact wrench NC-3610Q
Code: NC-3610QRelated products
Product detailed description

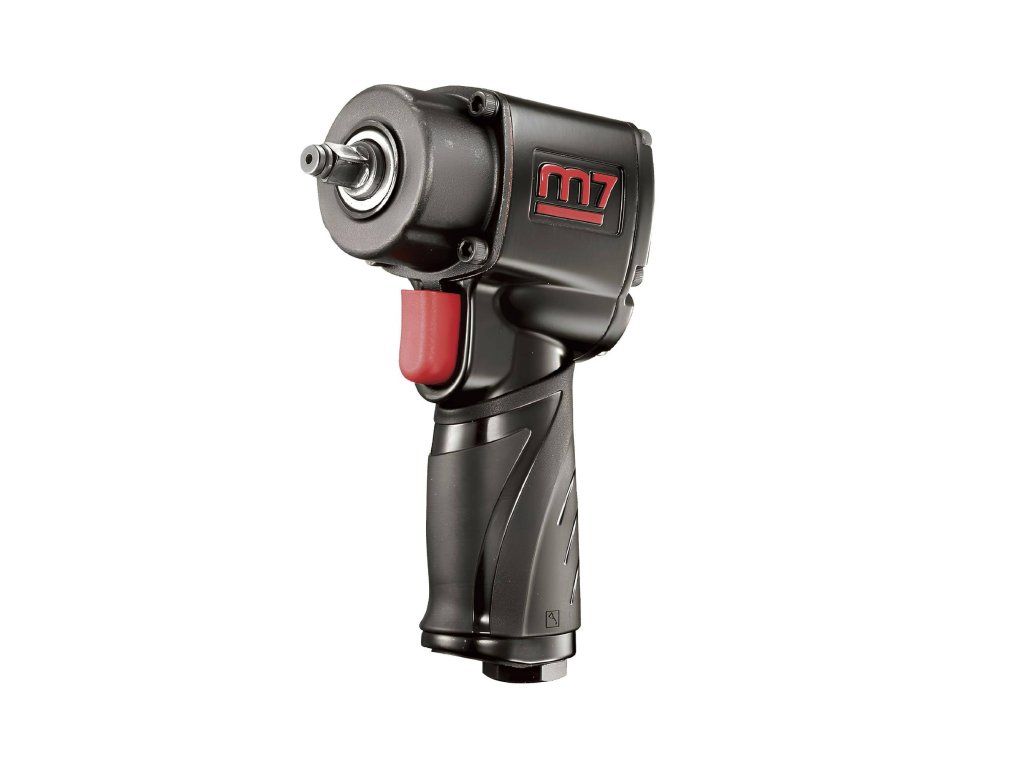

Pneumatic impact wrench NC-3610Q - 3/8"
- Small impact wrench with 3/8" clamping square for tightening and loosening small screws
- Equipped with powerful double hammer impact driver
- Right and left hand for tightening and loosening
- Ergonomically shaped handle
- Working pressure 6,3 bar
- Designed for frequent professional use
- Areas of application : cars, motorcycles, agricultural machinery
Additional parameters
| Category: | Pneumatic impact wrenches M7 |
|---|---|
| Pressure: | 6,3 bar |
| Connecting: | 1/4" internal + Nipple |
| Weight: | 1.5 kg |
| Total length: | 115 mm |
| Hoses: | 10 mm |
| Noise according to: ISO 15744: | 85.0 dB(A) |
| Maximum moment: | 474 Nm |
| Idle speed: | 8,000 rpm |
| Average air consumption: | 124 l/min |
| Moment range: | 136 - 407 Nm |
| Clamping: | 3/8" |
| Screw size: | 13 mm |
| Vibration: | 2.8 m/s2 |
-
Produktový list (10.3 MB)
-
Katalogový list (182.2 kB)
-

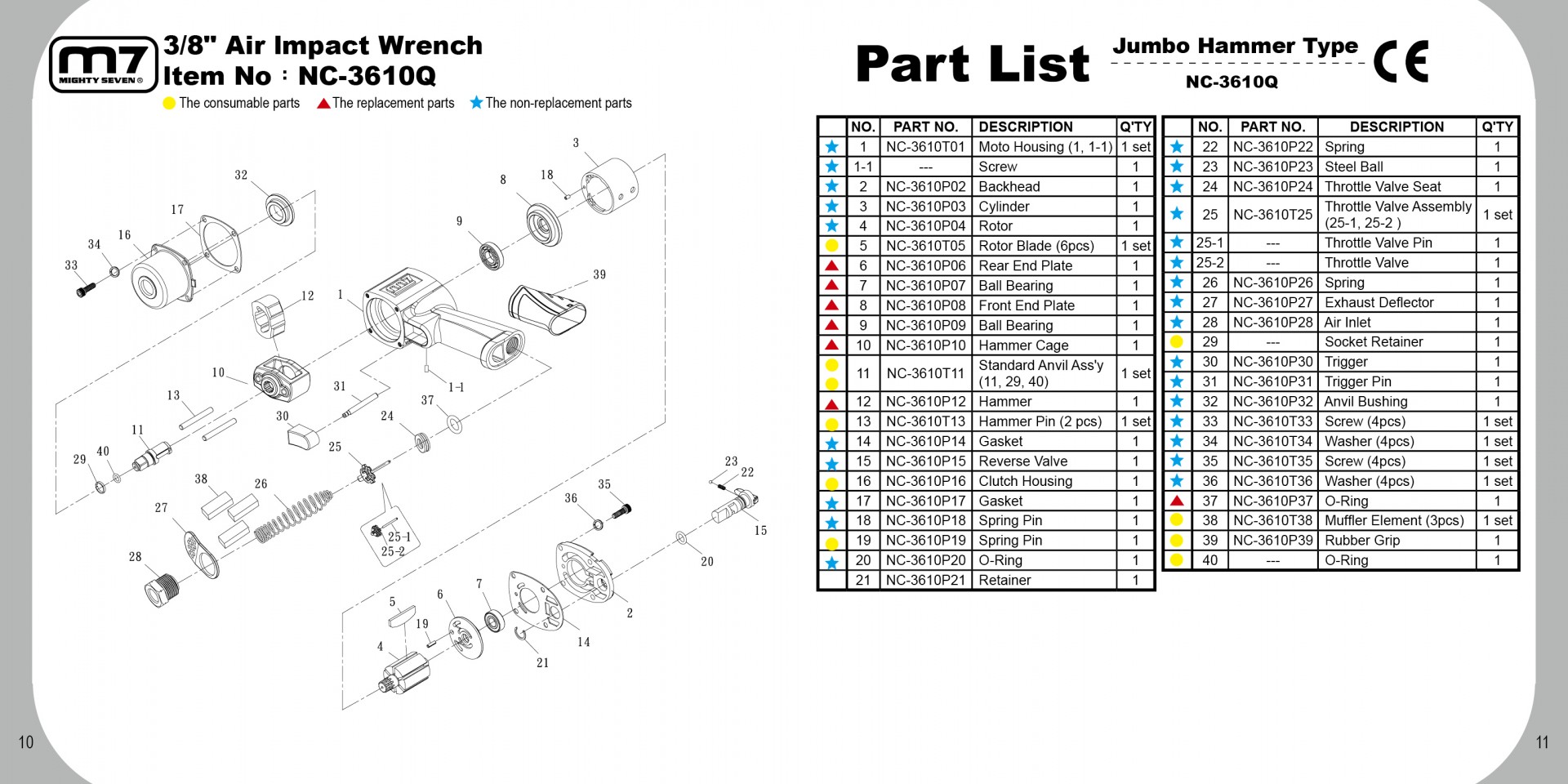

Technický výkres (368.6 kB)
-
Manuál k použití (1003 kB)
