Transport vacuum pump ACPF3-3

Code: ACPF3-3-AL
4 114 Kč –5 %

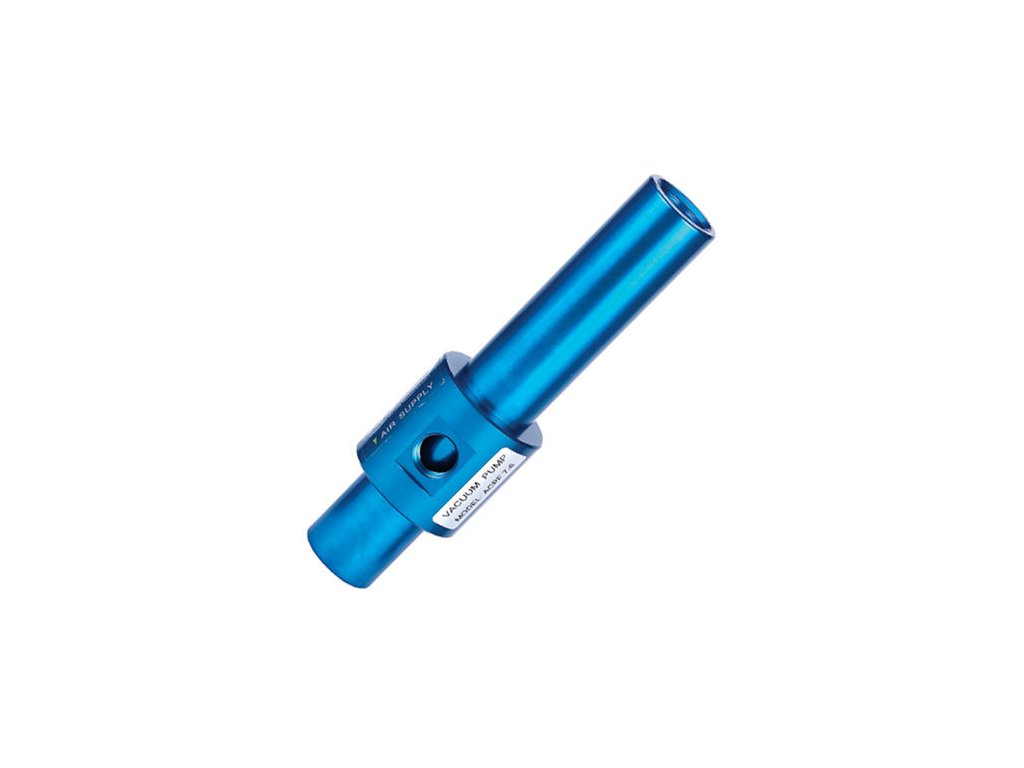

Transport vacuum pump ACPF3-3
4 114 Kč –5 % 3 908 Kč / pcs 3 230 Kč excl. VAT
Stock (15 pcs)
Delivery to:
25.12.2024

ACPF unattended vacuum pump with a maximum vacuum of 16.0 kPa and a vacuum flow rate of 425 l/min. Their shape prevents clogging, designed to transport particles and powders such as cereals, granules, seeds, metal chips.

Detailed information

Product detailed description

Vacuum pump ACPF3-3-AL

  • vacuum pumps in continuous design for suction and subsequent transport of solid parts and powders
  • unattended and shaped to prevent clogging, for very high flow rates
  • maximum vacuum level by model up to -35 kPa, maximum vacuum delivery by size up to 5,610 l/min
  • operating air pressure 4 to 6 bar, maximum inlet pressure 7 bar, air must be free of moisture
  • material design in either aluminium or stainless steel
  • applications: transport of materials, cereals, seeds, powders, plastic granules, grinding and drilling waste
  • note: air consumption is given at 5.5 bar

Additional parameters

Category: Transport vacuum pumps ACPF
Max. vacuum: 16 kPa
Vacuum flow: 425 l/min
Exhaust connection: 18.5 mm
Vacuum connection: 18.5 mm
Air connection: 1/8"
Spotřeba vzduch: 170 l/min

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:
airbest-provozovna

Airbest Develops and Innovates

The main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website.

German Quality and Chinese Affordability

The greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed.

Airbest - továrna

The Airbest company program consists of these basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration devices
  • suction cups
  • fittings for suction cups
  • vacuum valves and vacuum switches
