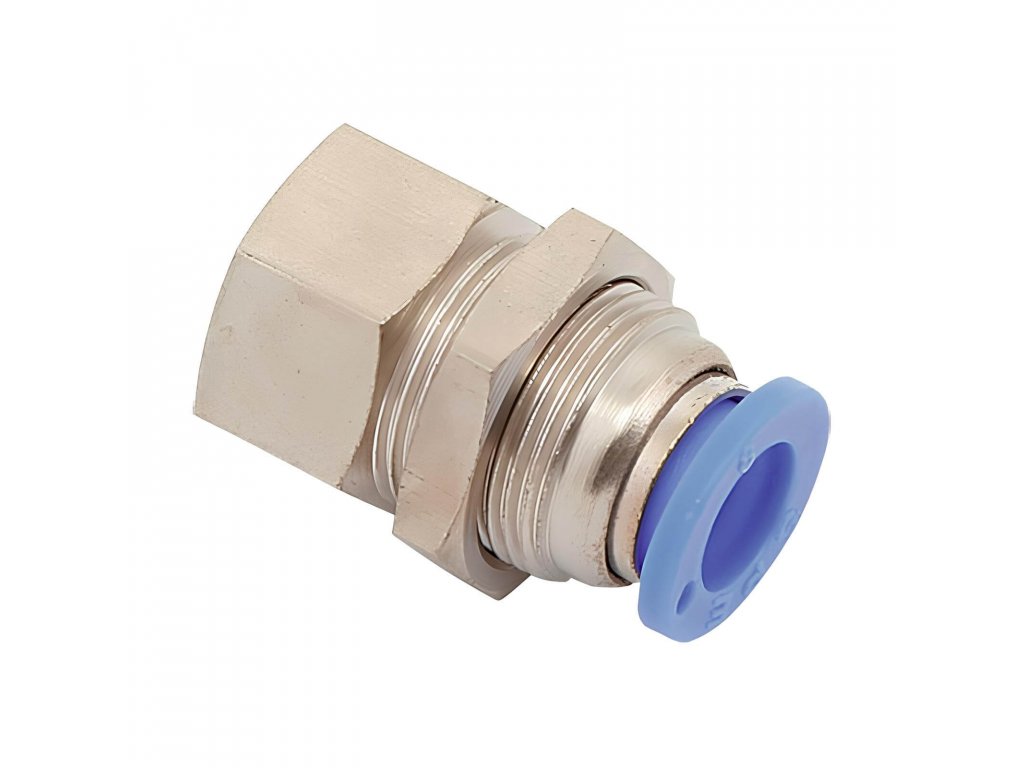

Bulkhead coupling with internal thread 8 - G1/8"

Code: PMF-188

Tip

Not rated

Brand: Pneumatics & Hydraulics

194 Kč –10 %

Bulkhead coupling with internal thread 8 - G1/8"

194 Kč –10 % 174 Kč / pcs 144 Kč excl. VAT

(608 pcs)

Delivery to: 25.12.2024

Coupling with internal pipe thread G1/8" for quick and easy installation of 8 mm plastic tubing. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Product detailed description

Socket coupling with female thread G1/8" - 8 mm

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	Scottish socket coupling female thread G
Pressure:	10 bars
A tube:	8 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Tubular G
SW (key):	17
Seals:	PTFE
Thread:	G 1/8"
Connection system:	Plug-in system
