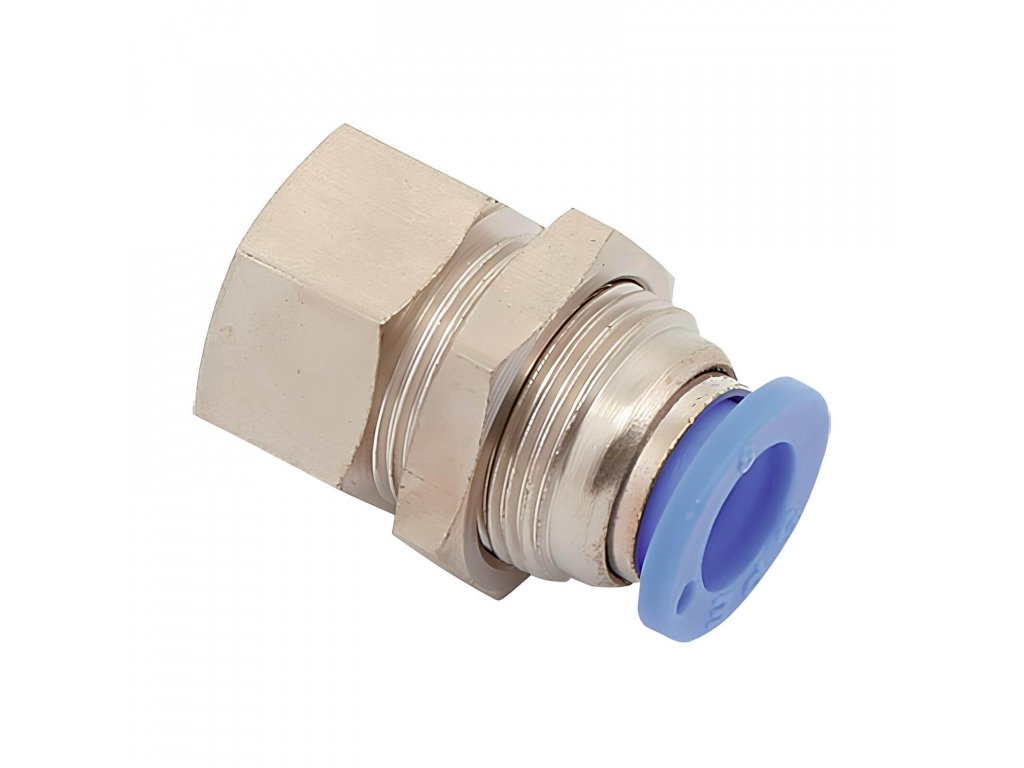

    Bulkhead coupling with internal thread 10 - G1/4"

    Code: PMF-1410
    Tip
    Not rated
    362 Kč –9 %
    Bulkhead coupling with internal thread 10 - G1/4"
    362 Kč –9 % 326 Kč / pcs 269 Kč excl. VAT
    Stock (625 pcs)
    Delivery to:
    22.10.2024

    Coupling with internal pipe thread G1/4" for quick and easy installation of 10 mm plastic tubing. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Socket coupling with female thread G1/4" - 10 mm

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Scottish socket coupling female thread G
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Tubular G
    SW (key): 24
    Seals: PTFE
    Thread: G 1/4"
    Connection system: Plug-in system
